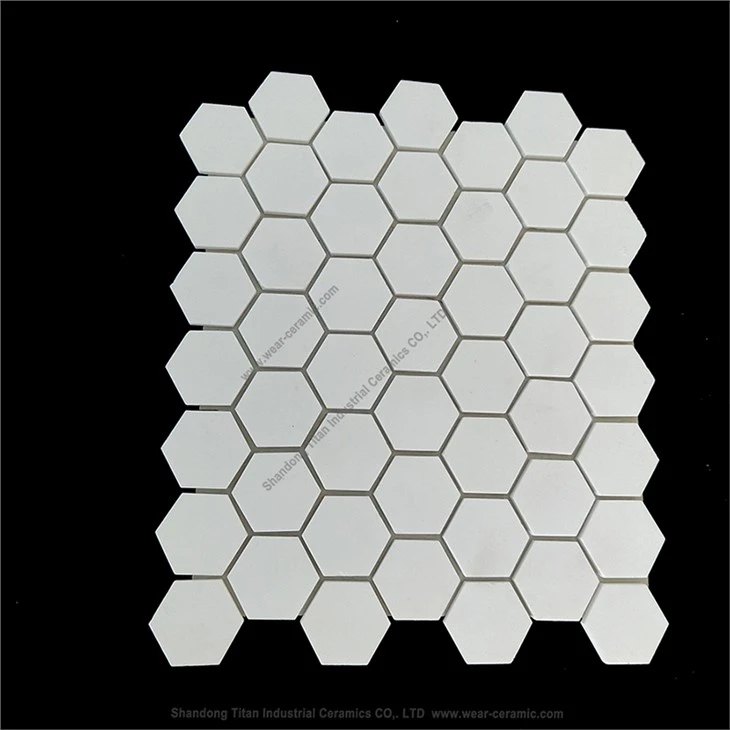

Dense Alumina 92% 95%Alumina Ceramic Hexagonal Tile Mat
Dense Alumina 92% 95%Alumina Ceramic Hexagonal Tile Mat
Dense Alumina 92% 95%Alumina Ceramic Hexagonal Tile Mat
Dense Alumina 92% 95%Alumina Ceramic Hexagonal Tile Mat
Dense Alumina 92% 95%Alumina Ceramic Hexagonal Tile Mat
Dense Alumina 92% 95%Alumina Ceramic Hexagonal Tile Mat
Dense Alumina 92% 95%Alumina Ceramic Hexagonal Tile Mat
Product H.S Code:690912
Product Materials：Alumina
Product Size：Length7.38mm*Height4.06mm
Product Color：White
Certificate:ISO9001
Custom-made：Available
Product Packaging:Cartons and Pallet
Product Details
Hexagonal Ceramic Tile Mat is a special corundum ceramic made of Al2O3 as the main raw material and rare metal oxide as the solvent, which is calcined at a high temperature of 1700 ºC.
Feature
1.High hardness, its Rockwell hardness is HRA80-90, the hardness is second only to diamond
2. Long service life, under the same working conditions, the service life of the equipment can be extended by more than 10 times.
3 Light weight, its density is 3.6g/cm3, which can greatly reduce equipment load.
4. The bonding is firm and the heat resistance is good. The hexagonal ceramic tile mat is pasted on the inner wall of the equipment with heat-resistant super glue.
Chemical composition and physical properties
| Series | BM92 | BMG95 |
| AL2O3(%) | 92±0.5 | 95±0.5 |
| Bending Strength(Mpa) | ≥220 | ≥250 |
| Compressive Strength (Mpa) | ≥1050 | ≥1300 |
| Fracture Toughness(MPam1/2) | ≥3.70 | ≥3.80 |
| Rockwell Hardness(HRA) | ≥82 | ≥85 |
| Wear Volume(Cm3) | ≤0.25 | ≤0.2 |
| Bulk Density(G/Cm3) | ≥3.6 | ≥3.65 |
Specification Available
| Length*Width(Mm) | Height(Mm) | Note |
| 12*12 | 6-25 | Paste |
| 12.5*12.5 | 6-25 | Paste |
NOTE: It is able to make the products in different specifications as customers' needs.
Application
Dense Alumina 92% 95%Alumina Ceramic Hexagonal Tile Mat is widely used in material conveying equipment, hoppers, pipes, elbows, valves, fan blades, chutes, ball mills, feeders, powder selection equipment, ball milling equipment, etc. Anti-wear conditions.
Our Ceramic Tiles
The production process
FAQ
Q: What is your terms of delivery?
A: FOB,CFR, CIF
Q: How can I get a quick quotation?
A: Please kindly send us more details about your requirements.
Q: How long is your delivery time?
A: 7-20days working days after all information is confirmed (according to different products).
Q: Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection by QC department before shipping.
Q: What services can we provide?
A: Accept customized according to your requirements. No strict require on the MOQ, accept small order.
Q: Can I get best price from you?
A: Of course. We don't chase excessive profits and always try to give best offer. if you are good at bargaining. you can also enjoy fun of bargaining. Just don't make it too hard!
Q: Are you a manufacturer?
A: Yes, we are. We have own factory, receive custom-made.
Hot Tags: dense alumina 92% 95%alumina ceramic hexagonal tile mat, manufacturers, suppliers, factory, price, made in China, wear resistant ceramic tiles, Alumina Ceramic Splicing Tiles, Alumina Wear Resistant Ceramic Lining Cube, high alumina ceramic tiles, Microcrystalline Wear Resistant Alumina Liner, Alumina Lining Cube
