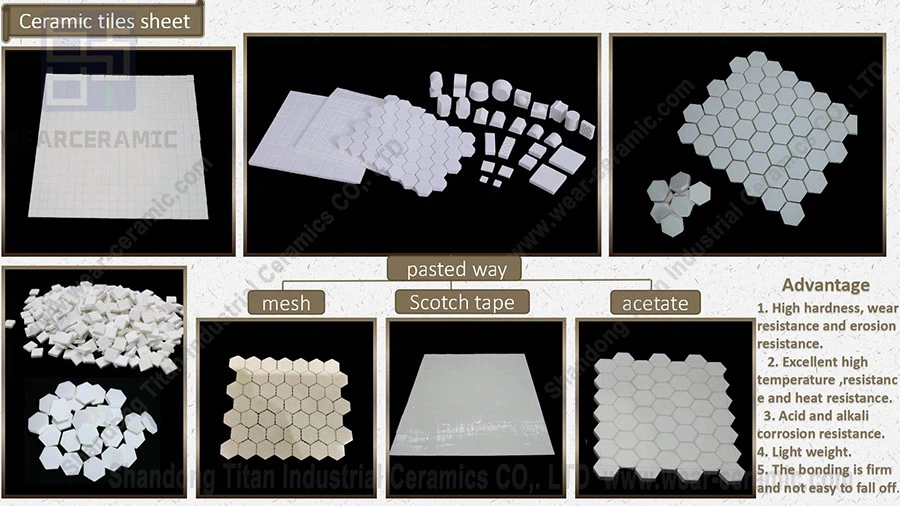

Hexagonal Ceramic Tile
Product Material:Alumina Ceramic
AL2O3 Content(%):92/95
Product Color:White
Bulk density(g/cm3):≥3.6/≥3.7
Hardness(Mohs):9
Product Introduction
Hexagonal ceramic tile, also known as hexagonal ceramic sheet, is a kind of high-temperature, high-strength ceramic material.It has excellent electrical properties and high temperature resistance, wear resistance, corrosion resistance and other excellent characteristics.

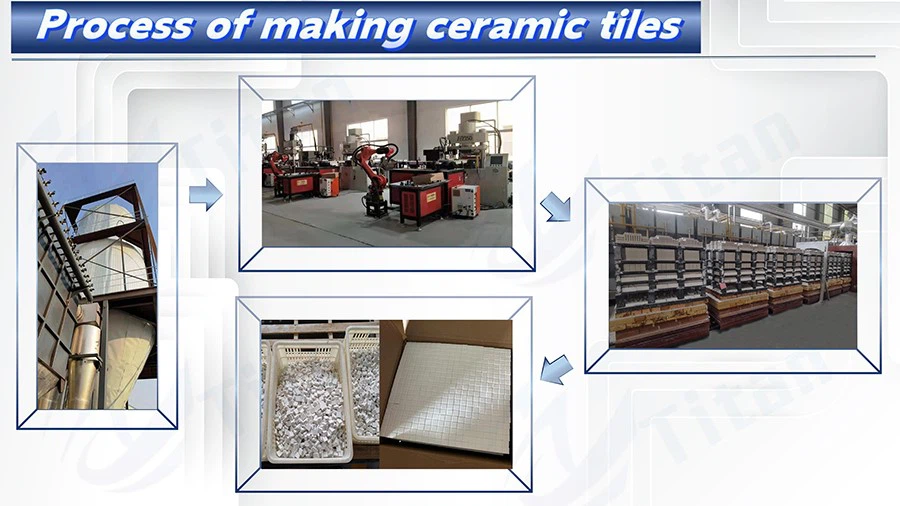

The manufacturing process of hexagonal ceramic tile is relatively complex, and the raw materials need to be mixed, crushed, sifted and other processes, and then pressed, cut, dressing, sintering and other multi-process steps, and finally form a dense ceramic sheet.
Characteristic
Advantages of hexagonal ceramic tile:
1. Hexagonal mosaic industrial tiles have high surface hardness, are scratch-resistant, dust-proof, waterproof and have a long service life.
2. It has the advantage of chemical resistance and can resist the erosion of various chemical substances.
3. Its unique hexagonal structure has excellent mechanical properties and chemical resistance.
Application
1. Mechanical equipment field: Hexagonal ceramic tile can be used in various mechanical equipment to effectively improve the durability of mechanical equipment.
2. Mining and metallurgy fields: Hexagonal ceramic tile can be used in wear-resistant and corrosion-resistant equipment fields, such as stone, coal, ore, water tanks, cement and metallurgy.
3. Chemical and pharmaceutical industry: Hexagonal ceramic tile can be used in various chemical equipment, pharmaceutical equipment, storage tanks, reactors and other acid-, alkali-, and corrosion-resistant equipment.
Specification
| Series | BM92 | BMG95 | BME95 | BMZTA | BMZR |
| AL2O3(%) | 92±0.5 | 95±0.5 | 95±0.5 | ≥75 | - |
| ZrO2(%) | - | - | - | ≥21 | 94.8±0.5 |
|
Bending strength (Mpa) |
≥220 | ≥250 | ≥300 | ≥400 | ≥800 |
|
Compressive strength (Mpa) |
≥1050 | ≥1300 | ≥1600 | ≥2000 | - |
|
Fracture toughness (MPam1/2) |
≥3.70 | ≥3.80 | ≥4.0 | ≥4.5 | ≥7 |
|
Rockwell hardness (HRA) |
≥82 | ≥85 | ≥88 | ≥90 | ≥88 |
| Wear volume(cm3) | ≤0.25 | ≤0.2 | ≤0.15 | ≤0.05 | ≤0.02 |
| Bulk density(g/cm3) | ≥3.6 | ≥3.65 | ≥3.7 | ≥4.1 | ≥5.9 |
| Length * Width | Height |
| 12*12 | 6-25 |
| 12.5*12.5 | 6-25 |
