Wear Resistant Hexagon Aluminum Porcelain
video

Wear Resistant Hexagon Aluminum Porcelain

Product Name: wear resistant hexagon aluminum porcelain
Product Code: BM92
Alumina Content: 92%
Compressive Strength: ≥1050MPA
Product Color: White
Certifified: ISO 9001
Fracture toughness(MPam1/2): ≥3.70
Send Inquiry
Product Introduction

Product Details

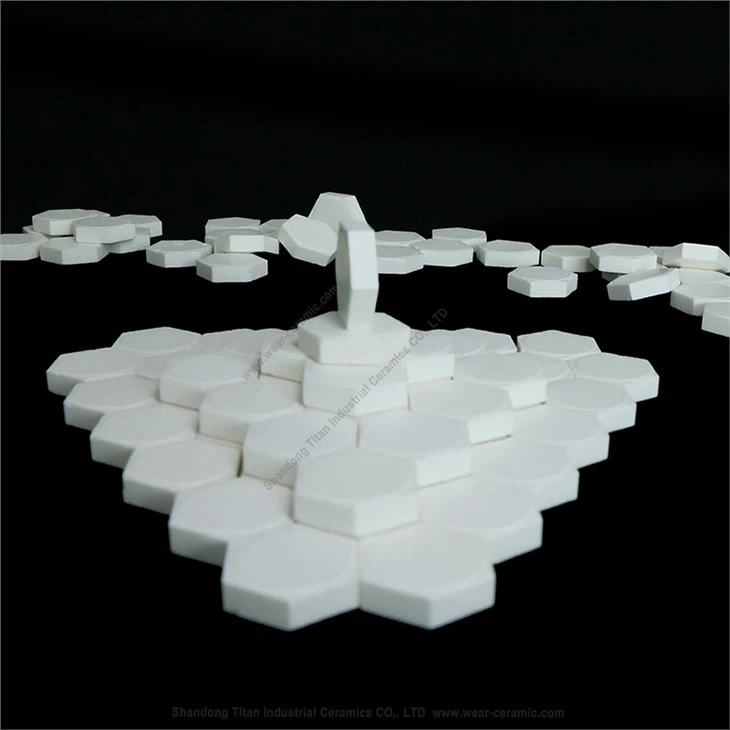

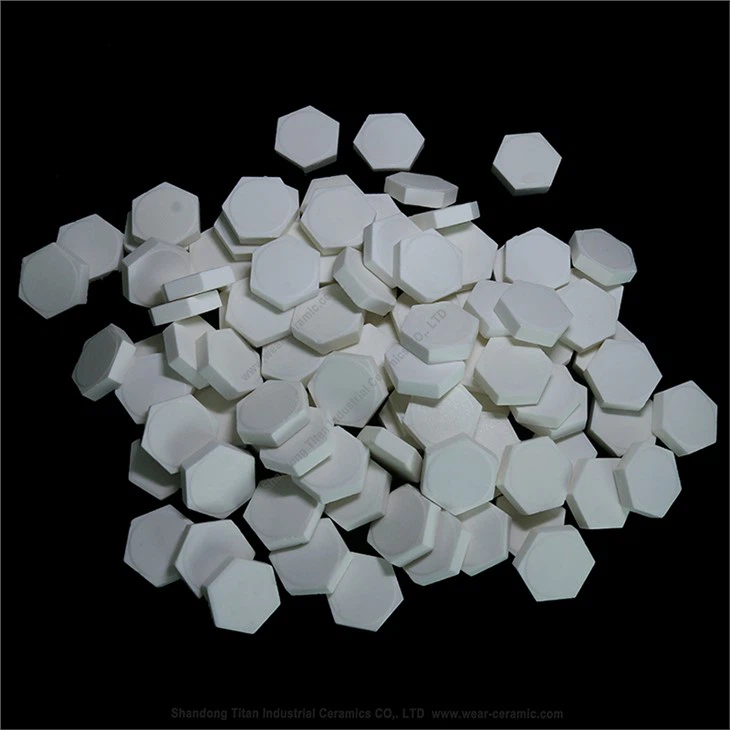

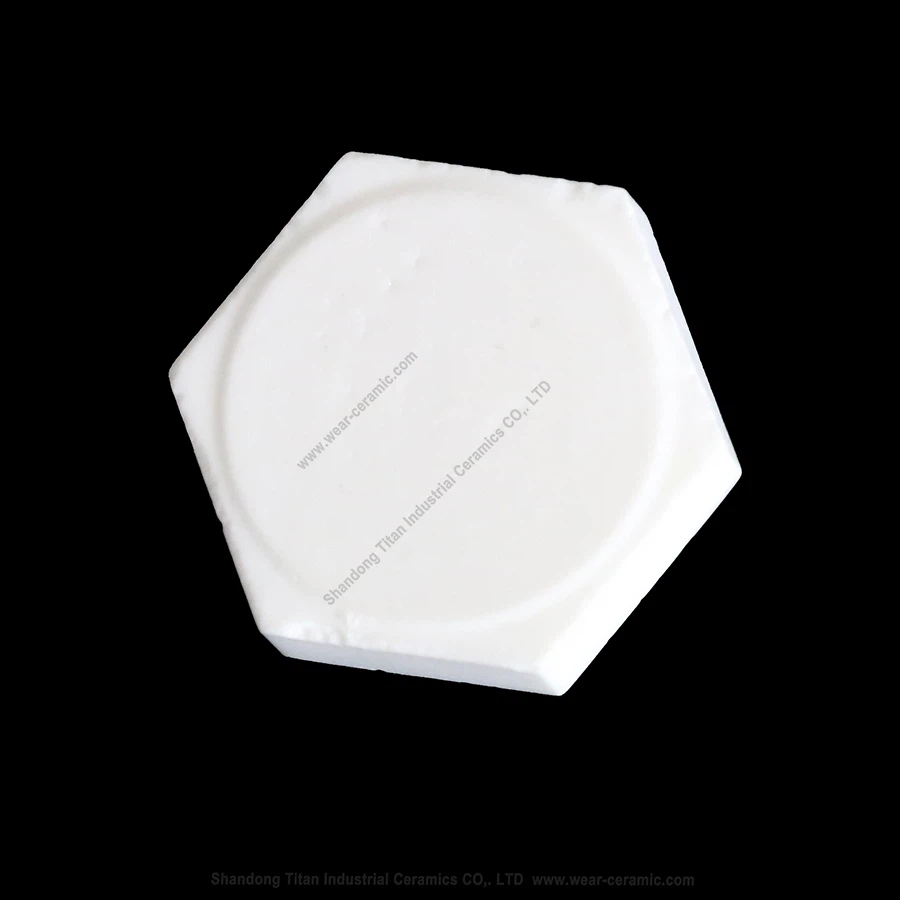

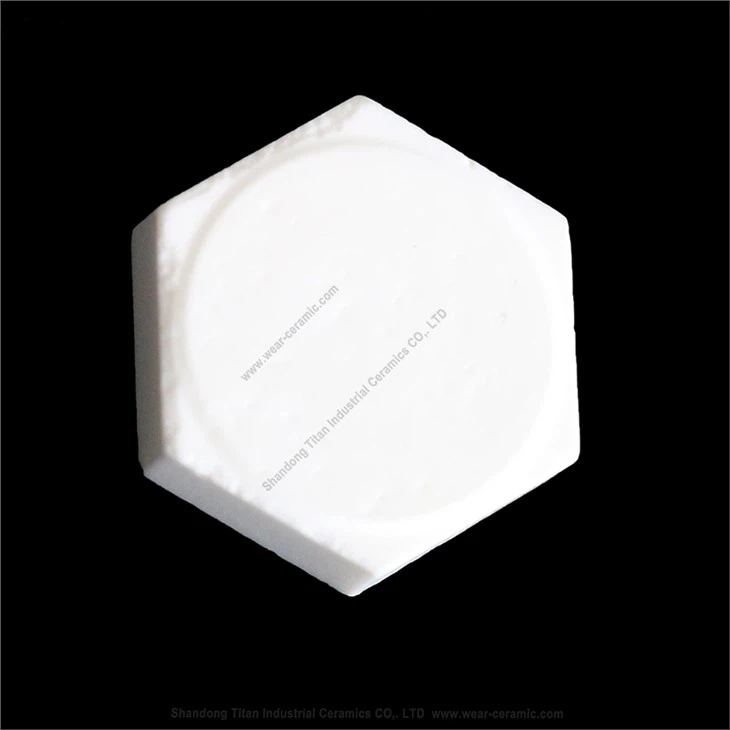

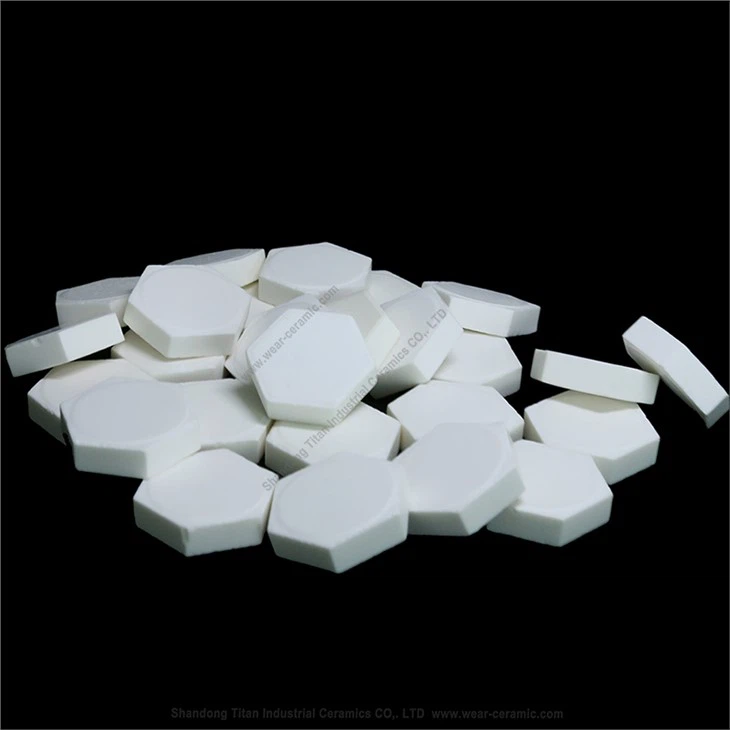

Alumina ceramic lining has the characteristics of small volume and different shapes. Dozens of alumina ceramic sheets are arranged and combined into alumina ceramic plates. Alumina ceramic sheets have hexagonal bricks and squares with pits.

Features

1. withstand high temperature: has the characteristics of high melting point, high boiling point, can be used at high temperature without being affected

2. not easy to corrosion: in strong acid, strong base, inorganic, organic salt and other conditions are not affected

3. antimagnetic: no magnetic material, no dust absorption, can reduce the surface shedding

4. electrical insulation: at room temperature as an insulator, high resistivity, can be used for insulation requirements in the equipment



Technical Data

Series

BM92

AL2O3 (%)

92±0.5

​Bulk density(g/cm3)

≥3.6

Compressive strength (MPa)

≥1050

Bending strength (MPa)

≥220

Fracture toughness (MPam1/2)

≥3.70

Rockwell hardness (HRA)

≥82

Loss bulk (cm3)

≤0.25



Application

All thermal power, iron and steel, smelting, machinery, coal, mining, chemical industry, cement, port terminals and other enterprises of coal transport, feeding system, pulverizing system, ash, dust removal system and all wear of machinery and equipment, can be selected according to different needs of different types of products.



202212091020091dc2cfeeaa45436ebacbc61f78aae90f

20221209102013cdef22e826624279a40e3c07ccad5b1f

20221209102015c52a6c10c82140aabb059ff5a5e9b453





Hot Tags: wear resistant hexagon aluminum porcelain, manufacturers, suppliers, factory, price, made in China, Square Wear Resistant Ceramic Lining Sheet, alumina tile, high alumina ceramic tiles, alumina ceramic grinding column, alumina ceramic block, Microcrystalline Wear Resistant Alumina Liner
