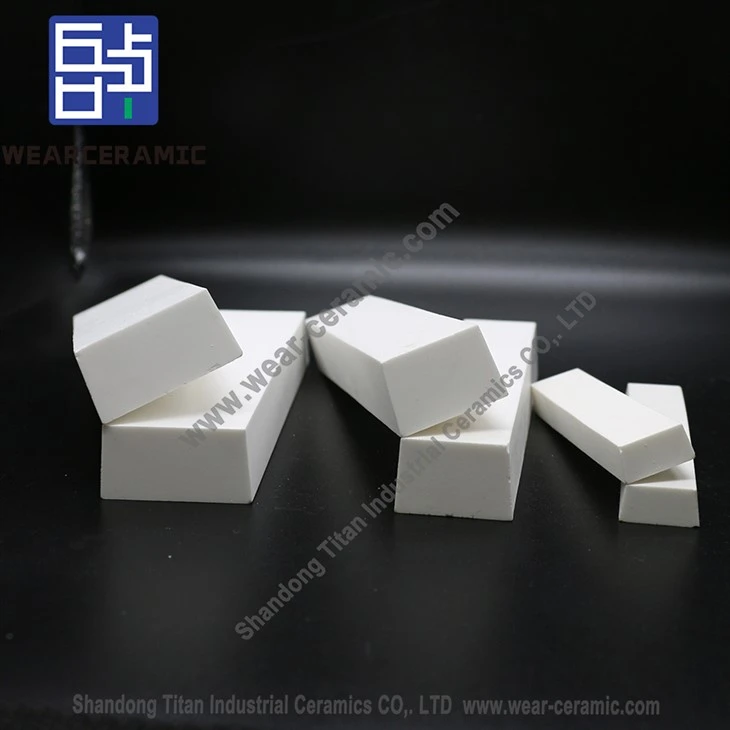

ZTA Ceramic Wear Resistant Customized Plate
Product Code:BMZTA
Product Material:Zirconium Aluminum
Product Color:White
Loss bulk(cm3)： ≤0.05
Bulk density(g/cm3)： ≥4.1
Customized: available
Product Description
Alumina and zirconia are combined to create the uniquely created ZTA Ceramic Wear Resistant Customized Plate, a ceramic lining plate with exceptional wear resistance, outstanding chemical resistance, and high hardness.
These specialized plates are commonly used to line the wear-prone parts of machinery such ball mills, crushers, vibrating screens, and centrifugal pumps in the metallurgy, mining, power generating, and chemical processing sectors.
Properties
ZTA Ceramic Wear Resistant Customized Plate's remarkable wear-resistant qualities, which outperform frequently used materials like rubber and stainless steel by a factor of five to ten, are among its main advantages.
It is also highly resistant to temperature changes, which makes it perfect for withstanding extreme heat and thermal shock. Additionally, the plate has outstanding chemical resistance, shielding the machinery from corrosive substances and extending its lifespan.
The ceramic plate's capacity to lower maintenance expenses and downtime is yet another important benefit. The ceramic material's remarkable hardness greatly lessens the need for regular replacements and repairs. As a result, there is minimal downtime and the machinery may continue to operate at its best for the duration of its life.
Application
ZTA Ceramic Wear Resistant Customized Plate are widely used in various industries and applications that require high wear resistance and durability.
1. Mining and mineral processing: The plates are used in crushers, ball mills, and other equipment to protect against abrasion, impact, and wear caused by processing abrasive minerals.
2. Cement and power plants: The plates are used in vertical mills, wear parts, and conveyor systems where high abrasion resistance is required.
3. Steel and iron industry: The plates are used to protect equipment such as rollers, chutes, hoppers, and blast furnace bells from wear and corrosion.
4. Chemical and pharmaceutical industry: The plates are used in mixing tanks, reactors, and other equipment that is exposed to corrosive and abrasive materials.
Specification
| Series | BMZTA |
| AL2O3 (%) | ≥75 |
| ZrO2 (%) | ≥21 |
| Bulk density(g/cm3) | ≥4.1 |
| Compressive strength (MPa) | ≥2000 |
| Bending strength (MPa) | ≥400 |
| Fracture toughness (MPam1/2) | ≥4.5 |
| Rockwell hardness (HRA) | ≥90 |
| Loss bulk (cm3) | ≤0.05 |
