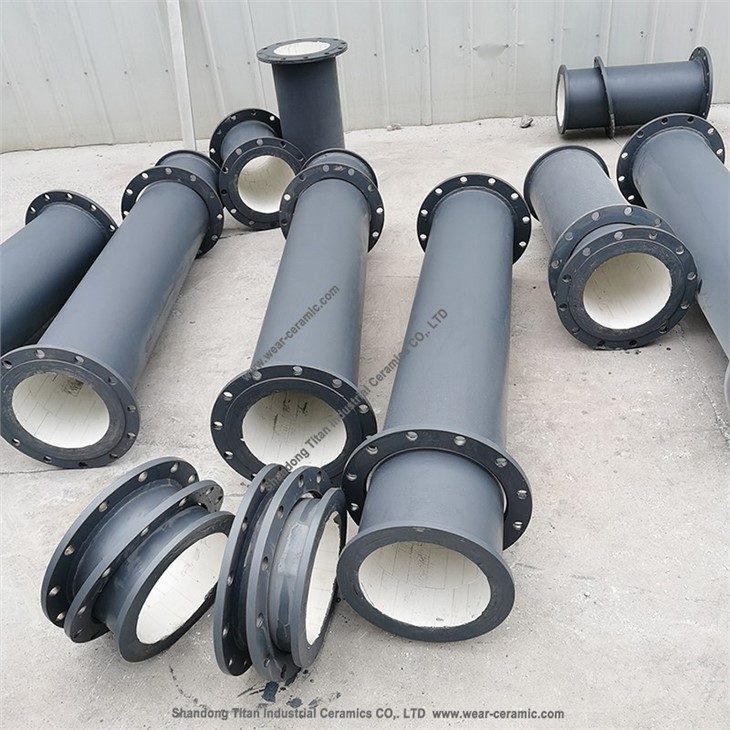

Lined With Ceramic Wear Resistant Steel Pipe
Product Material: Alumina ceramic
Alumina Content: 92 or 95
Hardness(Mohs): 9
Bulk Density( g/cm3): >=3.6 >=3.7
Self Wearing Rate：<=0.15 <=0.1
Certifified: ISO 9001
Product Introduction
Lined with ceramic wear resistant steel pipe can be divided into alumina ceramic pipes and silicon carbide ceramic pipes. Ceramic wear-resistant pipe according to the structural form of the ceramic pipe and ceramic patch wear-resistant pipe.Composite pipe gives full play to the high strength of steel pipe, good toughness, impact resistance, good welding performance and corundum porcelain high hardness, high wear resistance, corrosion resistance, heat resistance, overcome the steel pipe hardness, poor wear resistance and poor toughness of ceramic characteristics. Therefore, the composite pipe has good wear resistance, heat resistance, corrosion resistance and mechanical and thermal shock resistance, good weldability and other comprehensive properties. It is an ideal wear-resistant and corrosion-resistant pipeline for conveying granular materials, grinding and corrosive media.
Properties
1, high wear resistance: high wear resistance from high hardness, alumina ceramics Rockwell hardness HRA>85, Mohs level 9, hardness second only to diamond, far more than a variety of metal wear plate;
2. Light weight: density of wear-resistant ceramic lining ≥3.6g/cm3, only half of the weight of steel, light weight, easy to transport and install;
Application field
Because the pipe has wear resistance, corrosion resistance, heat resistance, so it can be widely used in electric power, metallurgy, mining, coal, chemical industry as conveying sand, stone, pulverized coal, ash slag, liquid aluminum and other grinding granular materials and corrosive media, is an ideal abrasion resistance pipeline.
Technical Specific
|
Series |
BM92H |
BMG95H |
BME95H |
|
AL2O3 (%) |
92±0.5 |
95±0.5 |
95±0.5 |
|
Bulk density(g/cm3) |
≥3.6 |
≥3.65 |
≥3.7 |
|
Compressive strength (MPa) |
≥1050 |
≥1300 |
≥1600 |
|
Bending strength (MPa) |
≥220 |
≥250 |
≥300 |
|
Fracture toughness (MPam1/2) |
≥3.70 |
≥3.80 |
≥4.0 |
|
Rockwell hardness (HRA) |
≥82 |
≥85 |
≥88 |
|
Mohs hardness |
9 |
9 |
9 |
workshop
