alumina ceramic composite plate

Product introduction

In order to create a alumina ceramic composite plate, the alumina ceramic composite plate uses an innovative thermal vulcanisation method to vulcanise the rubber and square or hemispherical wear-resistant ceramic lining together. It effectively addresses the issue of equipment wear resistance in the process of carrying big pieces of boring because it combines the benefits of high hardness ceramics and high cushioning and anti-fatigue capabilities of rubber. Rubber gives the composite board strong anti-wear and anti-corrosion properties, and it also helps to eliminate production halts and reduce noise from material collection.

Ceramic rubber composite panels are divided into two-in-one and three-in-one. Among them, the two-in-one refers to the ceramic-rubber composite board, and the three-in-one refers to the ceramic-rubber-steel composite board. The three-in-one composite board comes with bolts for easy installation.

Ceramic-rubber composite board connection method: gluing, bonding the composite board to the inner shell steel plate of the equipment with a high-strength organic adhesive to form a strong and buffering anti-wear layer.

  Product Advantage

 1.Rubber backed ceramic panel thee-in-one liner is modularly produced and assembled, which can replace high-wear areas;

2. Provide stud fixing and welding installation methods;

3.The special rubber thermal vulcanization process can not only ensure that the ceramic blocks embedded in the rubber layer are firmly bonded, but also act as a buffer layer to prevent the ceramic blocks from breaking;

4.The shape, size and thickness of the porcelain block or lining plate can be customized according to your specific working conditions or purposes.

Product Application

Wear-resistant ceramic rubber composite panels are mainly used in coal conveying and ash discharge systems in thermal power plants, as well as in material conveying and batching systems in metallurgical iron and steel industries.

An good impact and wear-resistant material for feeders, chutes, silos, conveying points, conveying systems, screen plates, abrasive chutes, silos, etc. is rubber ceramic composite lining plate. It is mostly utilised in thermal power plants, cement manufacturing facilities, blast furnaces, manufacturing facilities, and other sectors that demand highly impact- and wear-resistant surfaces.

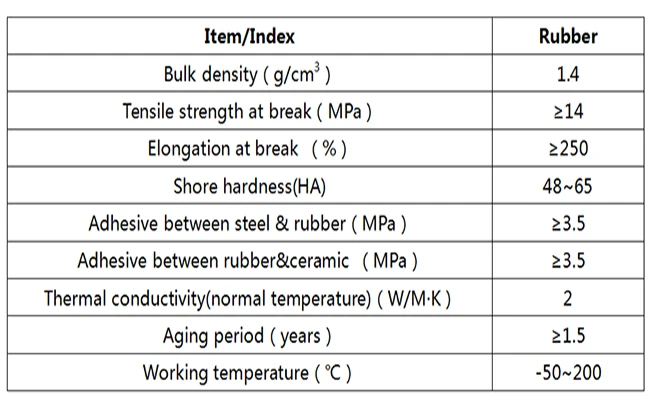

Parameter Data of Rubber

Parameter Data of Ceramic tile


Our workshop

FAQ

1.How can we guarantee quality?

We have QC during production, provide mass production samples , accept third party inspection if nessary.

2.What can you buy from us?

Alumina grinding media , zirocnia grinding media ,SS pipe with ceramic liner inside, ceraic composite plate, cyclones , Rubber coated roller ,ceramic adhensive etc.

3. What payment term can we do?

T/T, L/C at sight.

4. What services can we provide?

 Accept customized according to your requirements. No strict require on the MOQ, accept small order
