Alumina Ceramic Tile With Hole
Introduction
Alumina ceramic tile with hole has many features that make it an attractive choice for a variety of industrial and commercial applications. Alumina ceramic is a high-temperature ceramic which provides excellent chemical and thermal shock resistance over other ceramic materials. Alumina tiles with hole provide higher strength, rigidity, and heat resistance than traditional ceramic materials.
Specifications
|
Series |
BM92 |
BMG95 |
BME95 |
BMZTA |
BMZR |
|
AL2O3 (%) |
92±0.5 |
95±0.5 |
95±0.5 |
≥75 |
- |
|
ZrO2 (%) |
- |
- |
- |
≥21 |
94.8±0.5 |
|
Bulk density(g/cm3) |
≥3.6 |
≥3.65 |
≥3.7 |
≥4.1 |
≥5.9 |
|
Compressive strength (MPa) |
≥1050 |
≥1300 |
≥1600 |
≥2000 |
- |
|
Bending strength (MPa) |
≥220 |
≥250 |
≥300 |
≥400 |
≥800 |
|
Fracture toughness (MPam1/2) |
≥3.70 |
≥3.80 |
≥4.0 |
≥4.5 |
≥7 |
|
Rockwell hardness (HRA) |
≥82 |
≥85 |
≥88 |
≥90 |
≥88 |
|
Loss bulk (cm3) |
≤0.25 |
≤0.2 |
≤0.15 |
≤0.05 |
≤0.02 |
Features and Application
Alumina ceramic tile with hole is used as a wear-resistant lining for chutes, buckets, hoppers, and other industrial equipment. It can also be used as a heat shield in high temperature applications and as a thermal insulating layer in process chambers.
Good anti-stick performance: When handling highly sticky and easy-to-caking materials, the perforated welded liner can provide better anti-stick performance, preventing materials from sticking to the surface, reducing downtime and maintenance costs.
Alumina ceramic tile with hole is also highly resistant to corrosion, abrasion, and thermal shock. It can withstand extremely high temperatures and is extremely durable. It is also non-toxic and non-combustible, making it a safer option than some other materials. This type of ceramic tile with hole is also very lightweight, making installation easier and quicker. It also requires little maintenance and can last for decades with proper care and operation.

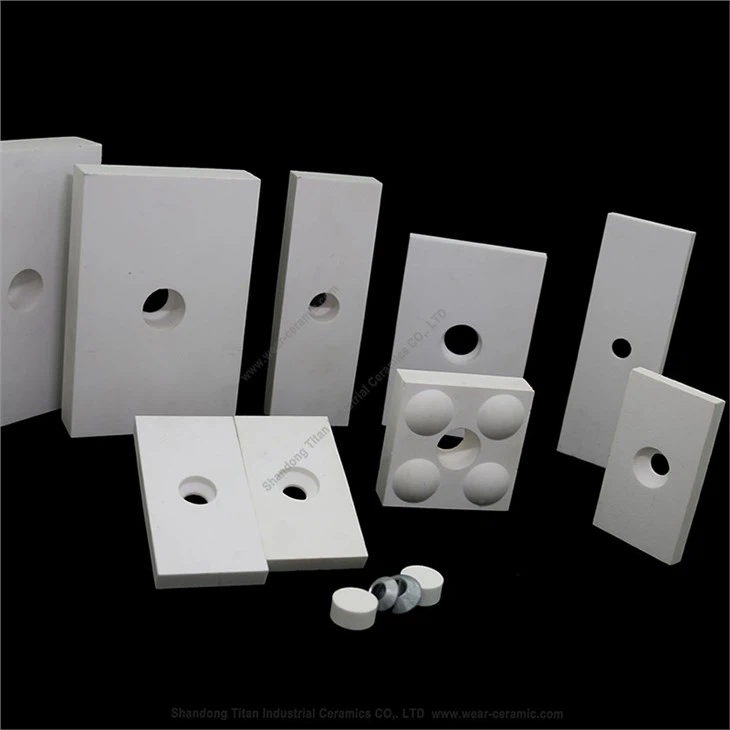

Product Photo

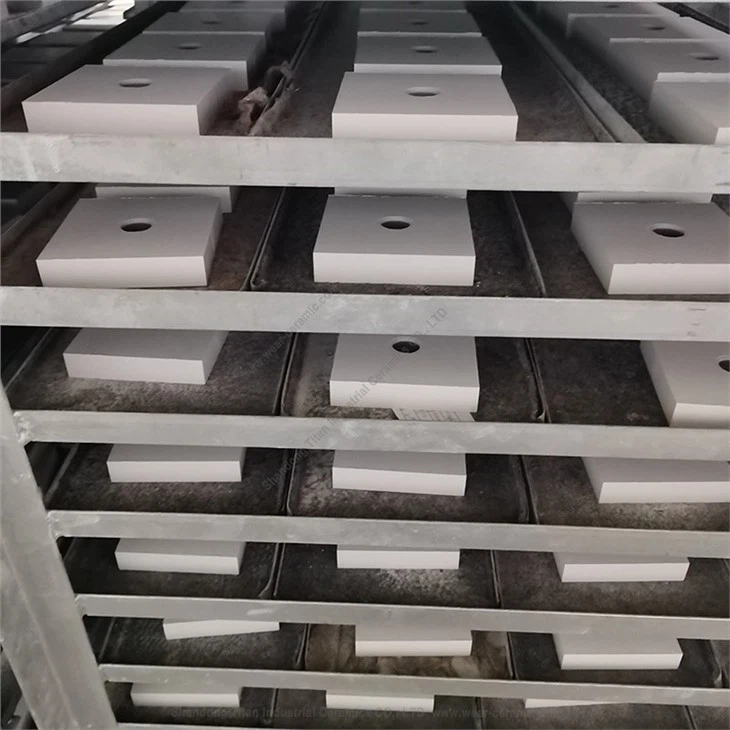

Factory Photos
