Aluminum Zirconium Composite Liner
Product Code:BMZTA
Product Material:Zirconium Aluminum
Product Color:White
Loss bulk(cm3)： ≤0.05
Bulk density(g/cm3)： ≥4.1
Customized: available
Introduction
Aluminum zirconium composite liner is a high-performance liner material based on zirconium and aluminum. It has good high temperature resistance, corrosion resistance, and wear resistance, and is widely used in metallurgy, chemical industry, electric power and other industries. The zirconium-aluminum composite liner has a complex composition structure, and its main function is to enhance the wear resistance and corrosion resistance of the liner, prevent cracking while maintaining high wear resistance, and improve the plasticity and load-bearing capacity of the liner.
Feature
The main advantages of aluminum zirconium composite liner are:
1. Strong corrosion resistance. Zirconium-aluminum composite liner has super strong resistance to chemical erosion threats such as high temperature, strong acid and alkali.
2. Strong wear resistance. Zirconium-aluminum composite liner has extremely strong wear resistance and minimal wear.
3. Light weight. Due to the low density of zirconium-aluminum liner, it is lighter than other liners and more convenient to use.
4. Strong impact resistance. Because the zirconium-aluminum composite liner contains metal zirconium, it has better impact resistance and stronger protection, which can effectively reduce equipment damage and extend service life.

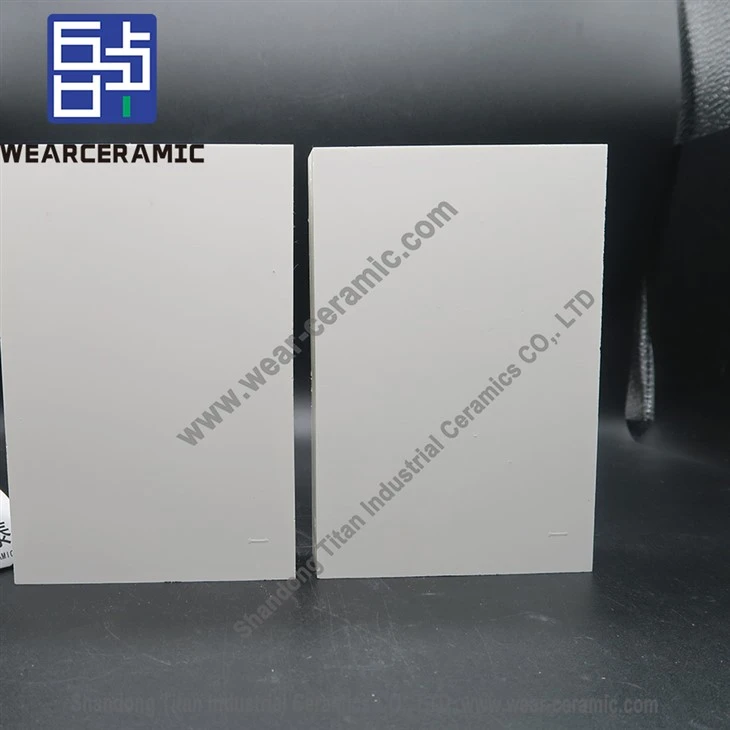

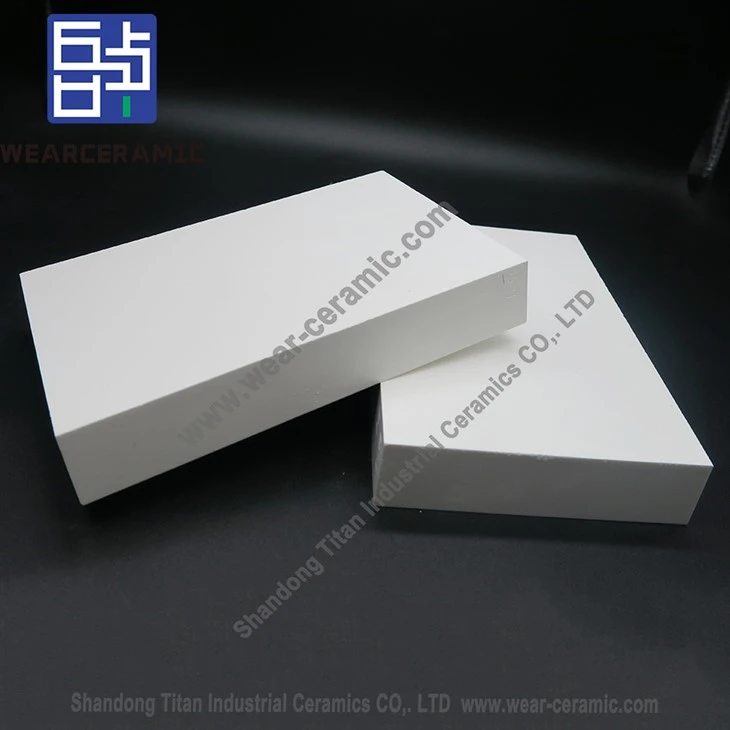

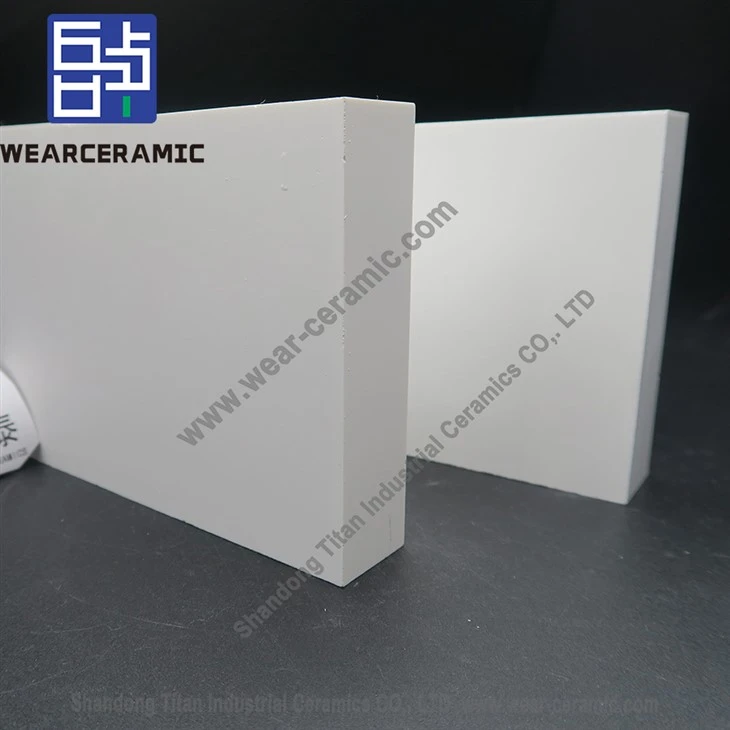

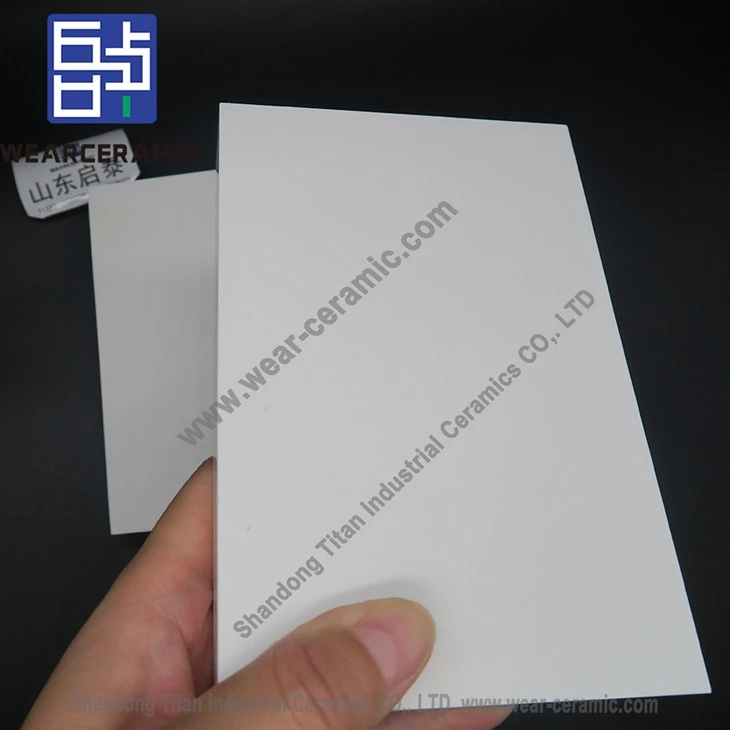

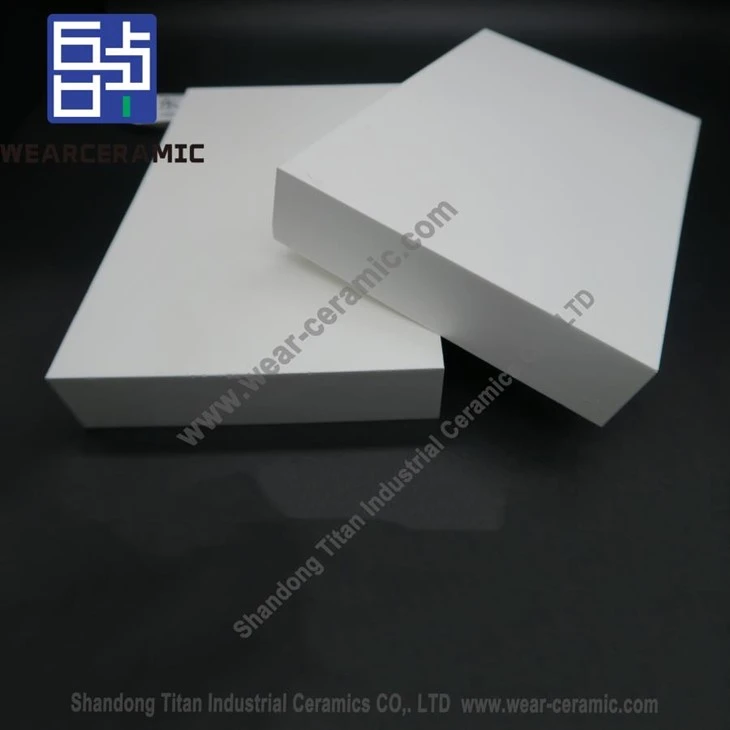

Product Photo
Application
The main applications of aluminum zirconium composite liner in the chemical, metallurgical and other industries are as follows:
1. Chemical industry: Zirconium-aluminum composite liner is a very strong corrosion-resistant material. It is widely used in the chemical industry due to its corrosion resistance under various acidic and alkaline conditions.
2. Zirconium-aluminum composite liner is widely used in the metallurgical industry for liners of various blast furnaces, electric furnaces, pipelines and other equipment for high temperature and high corrosion conditions.
3. Other industries: In addition to the pulp and mining industries, zirconium-aluminum composite liners are also used in the medical field.
Specification
| Series | BMZTA |
| AL2O3 (%) | ≥75 |
| ZrO2 (%) | ≥21 |
| Bulk density(g/cm3) | ≥4.1 |
| Compressive strength (MPa) | ≥2000 |
| Bending strength (MPa) | ≥400 |
| Fracture toughness (MPam1/2) | ≥4.5 |
| Rockwell hardness (HRA) | ≥90 |
| Loss bulk (cm3) | ≤0.05 |
