Impact Resistant Ceramic Wear Plate For Cement
Product Series:BM92/BMG95
Product Material:Rubber and Alumina Ceramic
Bending strength(MPa) >=220 250
Product Size: Customized
Rockwell hardness (HRA) >=82 85
Product Introduction

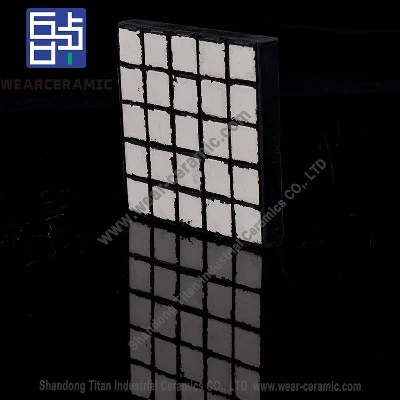

Impact Resistant Ceramic Wear Plate for Cement is through rubber vulcanization technology, the special ceramic embedded in the special rubber, forming a ceramic rubber composite liner, forming a strong and buffering anti-wear layer, rubber can effectively absorb the impact load, while the ceramic can effectively protect the surface, in addition, it can be vulcanized together with the steel plate with countersink bolts, easy to install and replace. Practice has proved that it has excellent performance in the material handling system with heavy workload and harsh working conditions.
Properties
1. Impact resistance, Impact Resistant Ceramic Wear Plate for Cement has good cushioning performance, can effectively buffer the impact of ore falling from high altitude, and wear-resistant ceramic liner because the main raw material of the product is alumina, has wear-resistant performance, but the toughness is insufficient, when the impact reaches a certain degree, composite ceramic wear-resistant liner must be selected.
2. The construction is convenient, there is no gap after the installation of the liner. Rubber composite liner can be twisted and cut, suitable for the installation of various special-shaped equipment.
3. Non-stick material is not blocked: due to the high strength and corrosion resistance of ceramics, it effectively solves the phenomenon of equipment sticking material and blocking material. The traditional nylon plate is often stained, which affects the work efficiency.
Application Field
The Impact Resistant Ceramic Wear Plate for Cement has been designed primarily for the lining of high wear components in mining and mineral processing equipment including: pipes and tanks, deflectors, launders, spill face sloping walls&loading chutes, bins&hoppers, mill feed components.
Chemical Composition and Physical Properties
|
Series |
BM92 |
BMG95 |
|
AL2O3 (%) |
92±0.5 |
95±0.5 |
|
Bulk density(g/cm3) |
≥3.6 |
≥3.65 |
|
Compressive strength (MPa) |
≥1050 |
≥1300 |
|
Bending strength (MPa) |
≥220 |
≥250 |
|
Fracture toughness (MPam1/2) |
≥3.70 |
≥3.80 |
|
Rockwell hardness (HRA) |
≥82 |
≥85 |
|
Loss bulk (cm3) |
≤0.25 |
≤0.2 |
