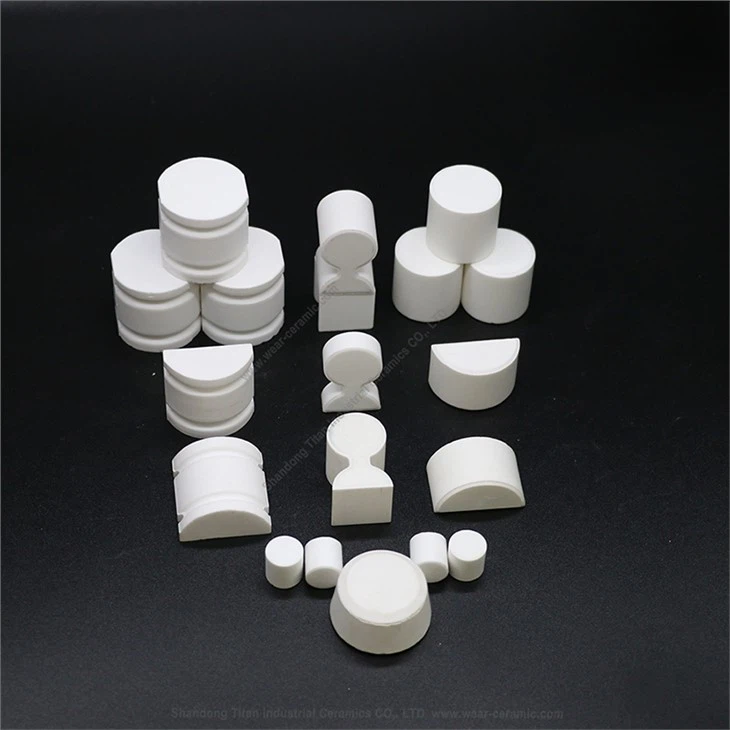

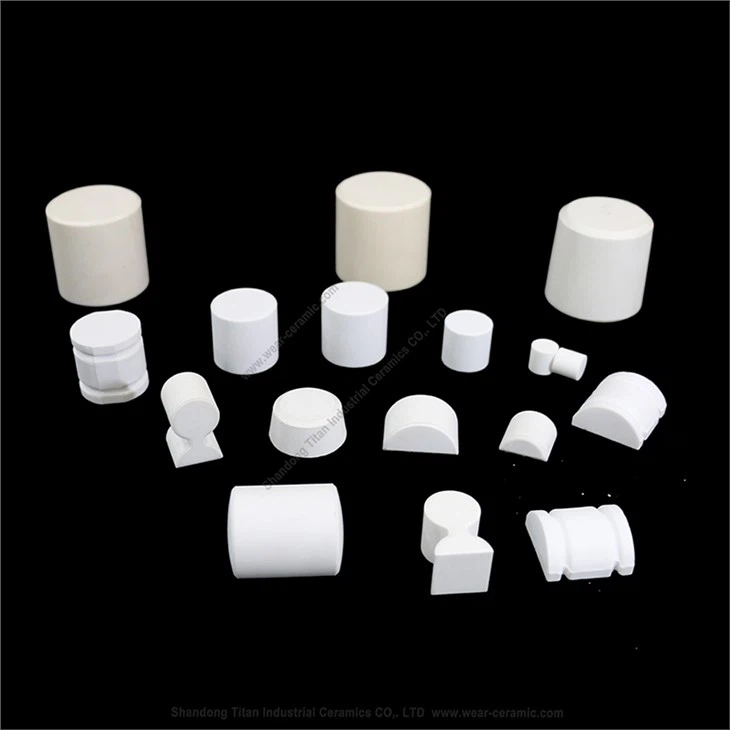

Alumina Grinding Cylinder
Al2O3 : 92% 95%
Mohs Hardness : 9
Advantage:(1) The primary ingredient in this product is premium alumina, which has a high degree of whiteness and has no impact on the caliber of the ground material.
(2) The product is made by rolling and isostatic pressing and has a high specific gravity, which can significantly boost the ball mill's grinding efficiency, shorten the grinding time, and increase the amount of grinding materials added.
(3) The high alumina grinding ball has low wear and may significantly increase the grinding body's useful life.
(4) The product can endure corrosion, acid, alkali, and temperatures above 1,000 degrees.
Product Introduction
Alumina grinding cylinder is a cylindrical grinding medium made of high-quality alumina powder and sintered at a high temperature of 1650 degrees. In addition to being used as a grinding medium in a ball mill, the alumina cylinder can also be used as a ceramic sheet in a wear resistant ceramic composite plate,which can effectively decompose the impact of materials.
Advantage
1. High alumina grinding cylinder has excellent characteristics such as high strength, high hardness, high wear resistance, high specific gravity, high temperature resistance, acid and alkali resistance, corrosion resistance, and no pollution.
2. The grinding efficiency and wear resistance are far superior to ordinary ball stones and natural pebbles. Alumina ceramic cylinder is an excellent grinding medium for fine grinding equipment such as ball mills, pot mills, and vibration mills.
| Chemical Composition and Physical Properties | ||
| Series | BMYMZ92 | BMYMZ95 |
| AL2O3(％) | 92±0.5 | 95±0.5 |
| Hardness (Mohs) | 9 | 9 |
| Bulk density (g/cm3) | ≥3.6 | ≥3.7 |
| Self wearing rate (%) | ≤0.15 | ≤0.1 |
| Specification Available | ||
| Series | Size (mm) | |
| Cylinder |
φ12*12mm φ15*15mm φ23*23mm φ20*20mm φ20*20mm φ25*20mm φ25*25mm φ30*30mm φ32*32mm φ40*40mm φ50*50mm φ60*60mm |
|
| Half-cylinder |
φ20*10mm φ20*20mm φ20*25mm φ30*30mm φ40*40mm |
|
| NOTE: It is able to make the products in different specifications as customer's requirement | ||
Application
Alumina grinding cylinder is widely used for grinding materials in ball mill, stripping machine, polishing machine and sand mill, which can greatly improve grinding efficiency, reduce grinding time and save energy consumption.
How to order your products?
Step 1. Please tell us which model and quantity you need. Get the latest quote.
Step 2. Create a Proforma Invoice
Step 3. Confirm your PI with us and arrange payment.
Step 4. Once we receive your payment, we will make production samples for your confirmation.
Step 5. After confirmation, production begins.
Please believe that we have a strict quality management system, if necessary, feel free to contact our customer service for further discussion and information.
In addition, we have free samples to ship, but you need to bear the freight, if necessary, please inform us in advance.
