Zirconium Toughened Alumina Ball ZTA

Zirconium toughened alumina ball ZTA is a material made of a mixture of zirconium and aluminum, usually used in high temperature, high pressure, high hardness, high corrosion resistance and other high requirements.
Send Inquiry
Product Introduction

Introduction

Zirconium toughened alumina ball ZTA is a composite material with alumina (Al2O3) and zirconium oxide (ZrO2) as the main raw materials. It has high temperature resistance,wear resistance and good corrosion resistance. As a new type of high-performance ceramic material, it has broad development prospects. The ratio of alumina to zirconium oxide is of great significance for the preparation of high quality and high stability.



Characteristic


High hardness and

high strength

Alumina and zirconium oxide both have high hardness and strength. After interaction, with the addition of zirconium, and the bearing capacity and compression performance are enhanced.

Strong wear and corrosion resistance

Zirconium toughened alumina ball ZTA have a smooth surface, good wear resistance,good corrosion resistance, no pollution to the environment, and are particularly suitable for various occasions requiring high-quality grinding balls.

Good temperature

resistance

ZTA composite balls have good high temperature stability and can work at high temperatures.

Excellent chemical resistance

Composite zirconium has no reaction to corrosive gases, acids, alkalis and other chemicals, so it has excellent chemical resistance.

Self-lubricating property

ZTA composite balls are not prone to excessive friction and wear during production due to their smooth surface, and have excellent self-lubricating properties.

Customizable

Zirconium-aluminum composite balls can be customized in different sizes to meet the needs of different applications.





logo01

Application

1. Powder abrasive, suitable for grinding and mixing in the production process of various powders such as mine and cement.
2. In terms of environmental protection, ZTA composite materials are widely used in environmental protection due to their non-toxic and odorless,for example, sewage treatment, solid waste treatment and other projects.
3. High-precision grinding, using zirconium toughened alumina ball ZTA as grinding materials, plays an irreplaceable role in precision instruments such as clocks, optical instruments, magnetic recording heads, and magnetic disks.



Choose Titan, we will help you increase production and efficiency and reduce costs.



Specs

Series BMZTA5 BMZTA10 BMZTA60 BMZTA70 BMZTA75
Al2O3+ZrO2 (%) ≥92% ≥85% ≥95% ≥96% ≥96%
Density(g/cm3) ≥3.7 ≥3.8 ≥4.5 ≥4.7 ≥5.0
Vickers Hardness(GPa) ≥12 ≥11 ≥12 ≥12 ≥11
Rapid Wearing Rate(g/kg.h) ≤1.3 ≤1.3 ≤1.3 ≤1.3 ≤1.3
Dimension(mm) φ1-10 φ1-10 φ1-10 φ1-10 φ1-10
Roundness 96% 96% 96% 96% 96%

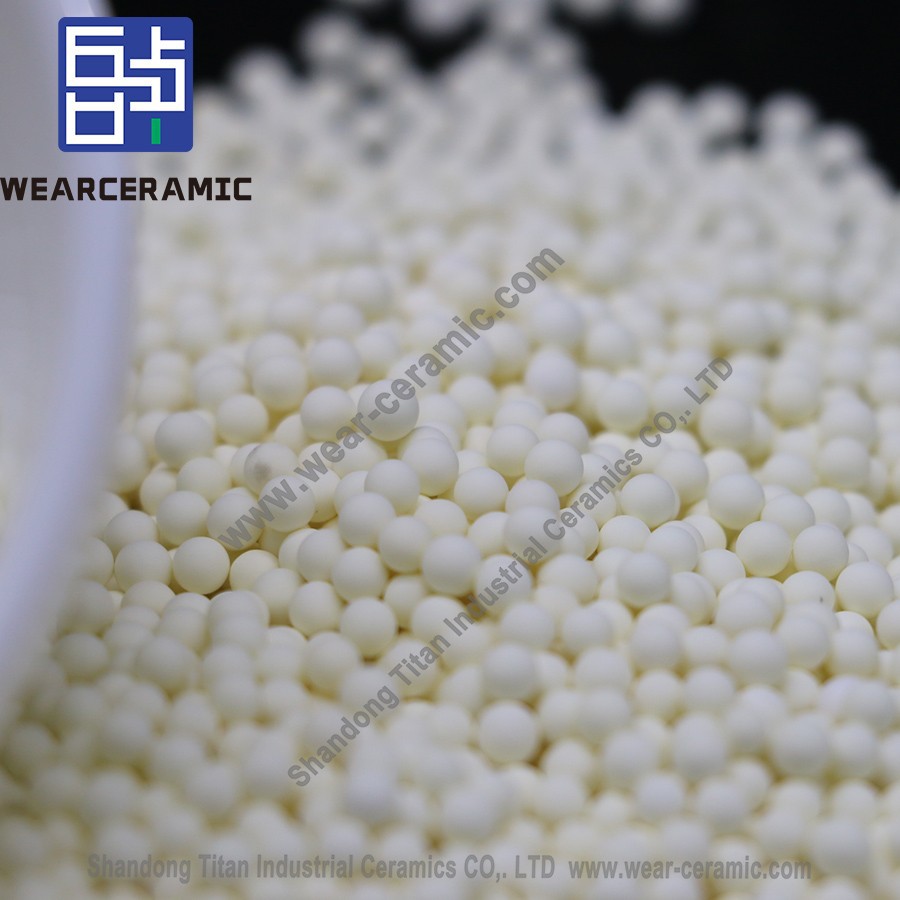

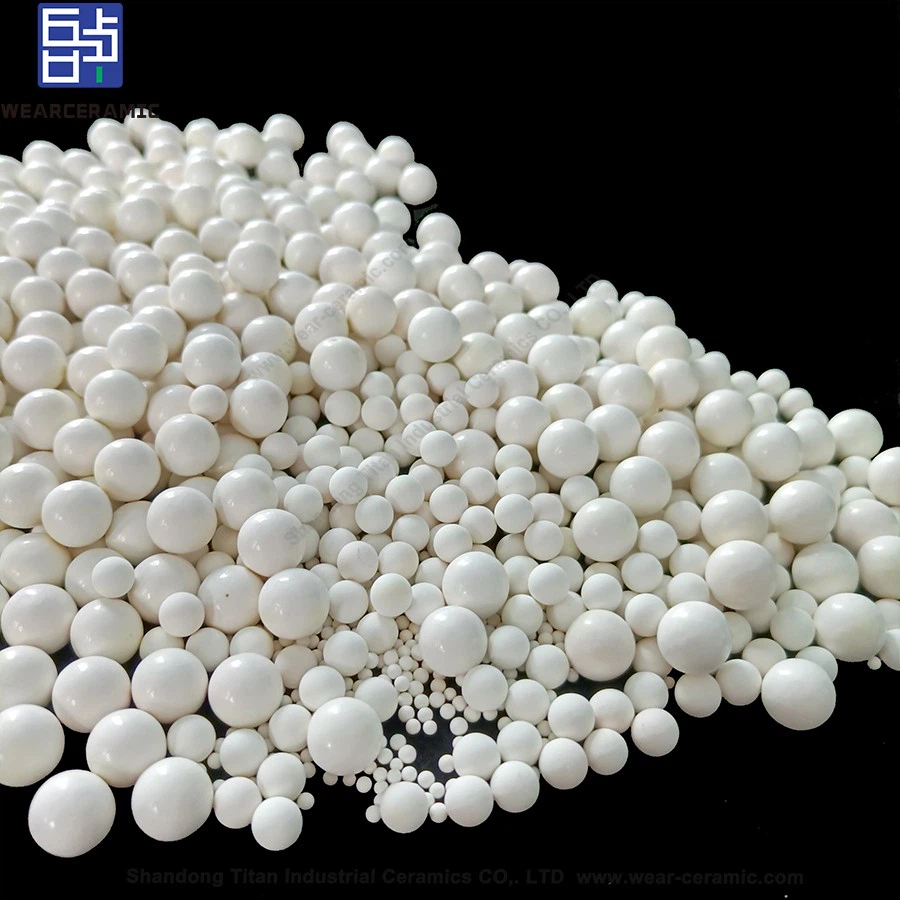

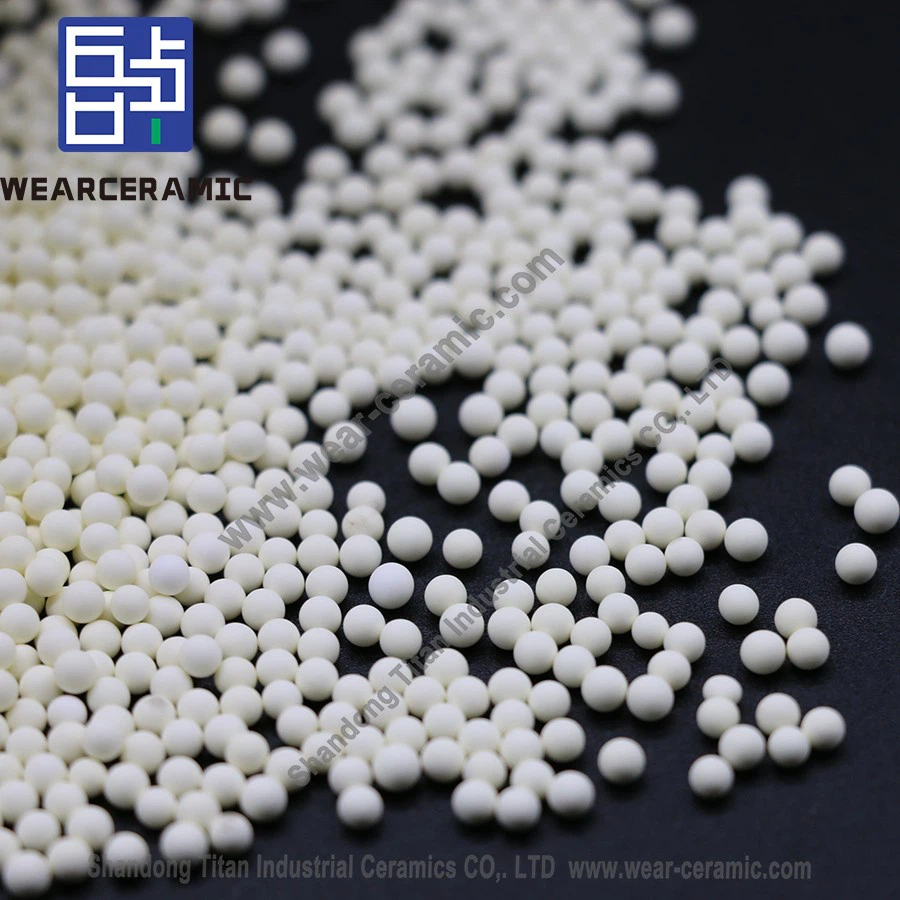

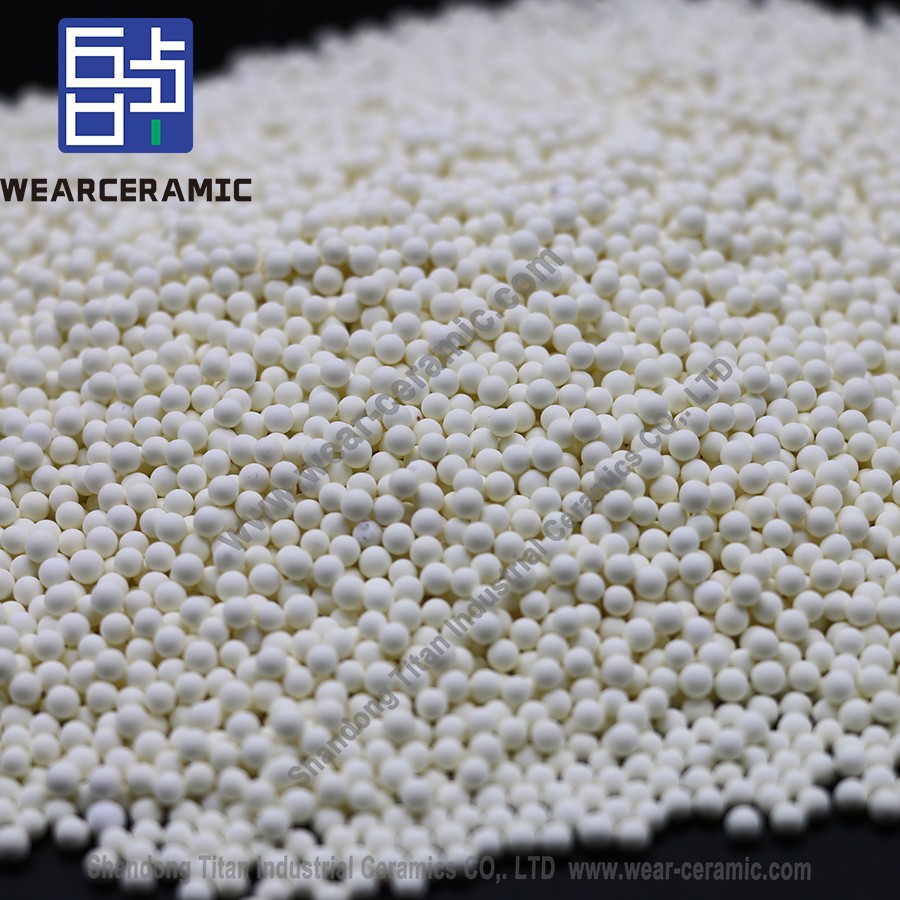

Product Photo




Our other grinding balls

beadslogo

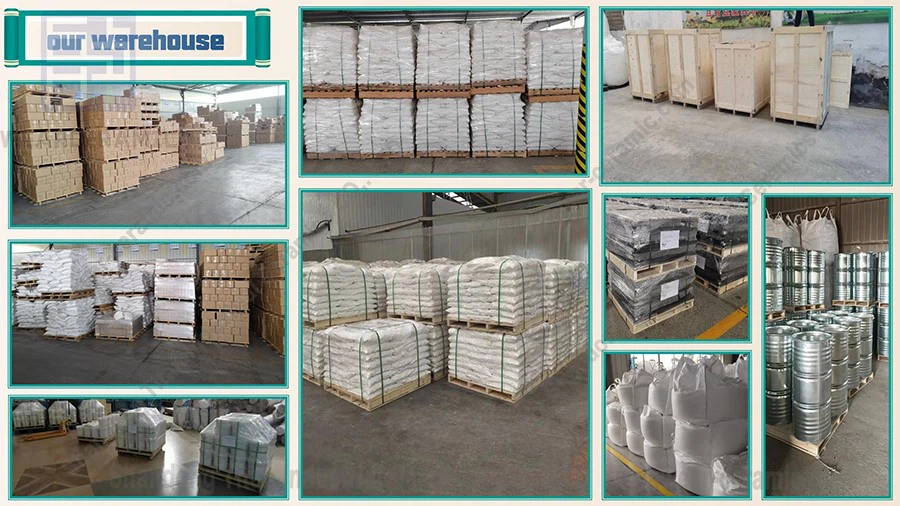

Our warehouse

logo

FAQ





01.What does ZTA stand for?

ZTA stands for Zirconia Toughened Alumina. It is a composite ceramic material in which a zirconia phase is used to improve the fracture toughness of an alumina-based structure.

02.What is the difference between ZTA balls and alumina grinding balls?

Conventional alumina balls mainly rely on alumina's hardness and wear resistance. ZTA balls introduce zirconia toughening to improve resistance to crack development and mechanical damage. The best choice depends on the actual milling conditions.

03.Are ZTA ceramic balls suitable for wet grinding?

They may be used in compatible wet milling processes. Selection should take into account slurry chemistry, operating speed, media size, and the properties of the material being ground.

04.Can TITAN supply different ball diameters?

Available sizes and specifications should be confirmed according to production requirements. Please share your target diameter and quantity so TITAN can evaluate the appropriate option.

05.What information is needed to select ZTA grinding media?

Useful details include the mill type, required ball diameter, feed material, target particle size, wet or dry grinding conditions, and any contamination restrictions. These details help determine whether ZTA is suitable for the application.
