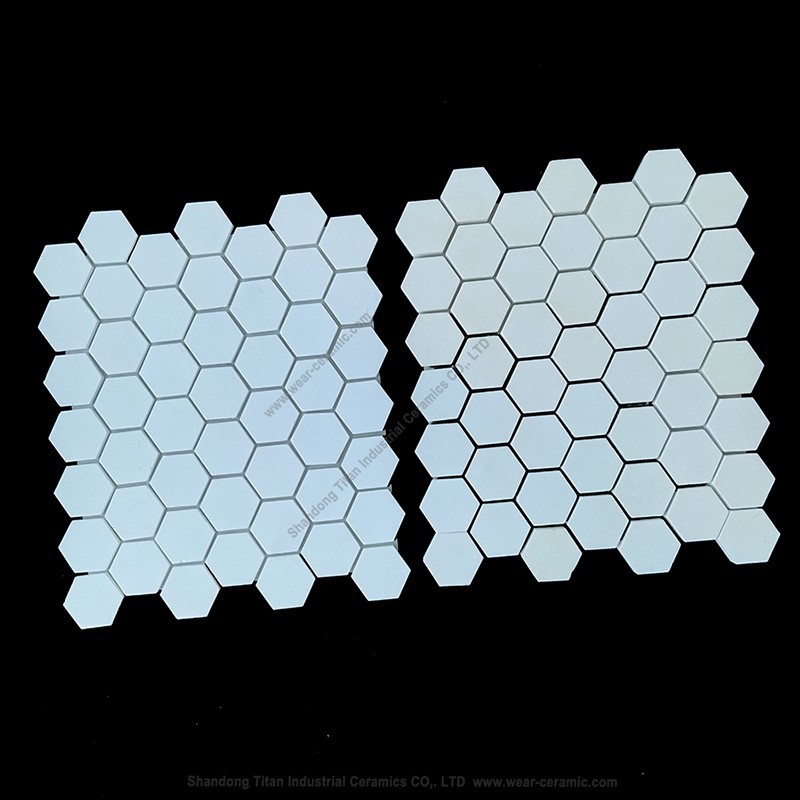

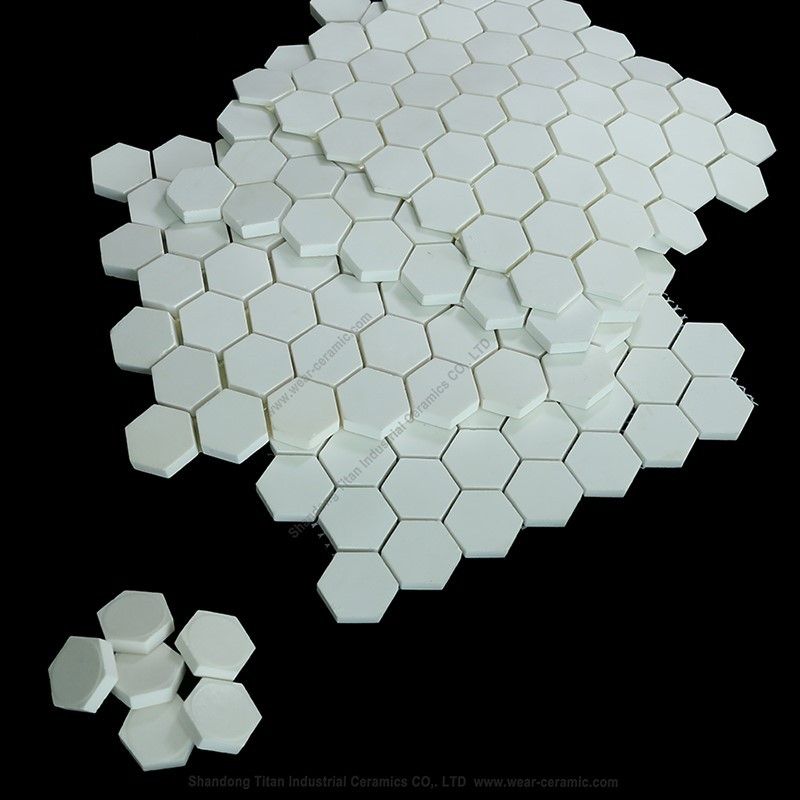

Hexagonal Anti-wear Ceramic Lining Mosaic
Hexagonal Anti-wear Ceramic Lining Mosaic are special corundum ceramics made of Al2O3 as the main raw material, rare metal oxides as flux, and fired at a high temperature of 1700 degrees, and then combined with special rubber and high-strength organic/inorganic binders.
Product Introduction
Hexagonal anti-wear ceramic lining mosaic is also named alumina ceramic hex tile. Titan alumina ceramic mosaic has two main types including square and hexagonal shapes. Hexagonal anti-wear ceramic lining mosaic is easy to paste and has excellent characters of impact resistance and wear resistance, which is widely used in a range of equipment including pipes, tanks, pumps and flotation cells, etc.
Feature
First of all, the hardness of Hexagonal anti-wear ceramic lining mosaic is high, and its Rockwell hardness can reach HRA80-90;
Secondly, the wear resistance is excellent, and the wear resistance can be higher than that of manganese steel and high chromium cast iron, which can prolong the service life of the equipment by more than ten times;
In addition, the wear-resistant alumina ceramic lining is very light in weight, and its density is 3.65g/cm, which can greatly reduce the load on the equipment;
The wear-resistant alumina ceramic lining is firmly bonded to the equipment, has good heat resistance, and can operate at 350°C for a long time without aging.
Chemical composition and physical properties:
| Series | BM92 | BMG95 |
| AL2O3(%) | 92±0.5 | 95±0.5 |
| Bending strength(Mpa) | ≥220 | ≥250 |
| Compressive strength (Mpa) | ≥1050 | ≥1300 |
| Fracture toughness(MPam1/2) | ≥3.70 | ≥3.80 |
| Rockwell hardness(HRA) | ≥82 | ≥85 |
| Wear volume(cm3) | ≤0.25 | ≤0.2 |
| Bulk density(g/cm3) | ≥3.6 | ≥3.65 |
Specification Available
| Length*Width(mm) | Height(mm) | Note |
| 12*12 | 6-25 | paste |
| 12.5*12.5 | 6-25 | paste |
NOTE: It is able to make the products in different specifications as customers' needs.
Application
Wear-resistant hexagonal ceramic tiles sheets can be directly processed on metal pipes lined with high-wear-resistant alumina engineering ceramics. Known for its particle impact and high temperature resistance, it has been widely used in thermal power, thermal power, steel, heat, cement, smelting, mining, chemical, machinery, paper, aluminum and other industries with severe wear and tear.
What else we have ?
The production process
FAQ
1.How can we guarantee quality?
We have QC during production, provide mass production samples , accept third party inspection if nessary.
2 .What is your Delivery Terms?
FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery.
3.What can you buy from us?
Alumina grinding media , zirocnia grinding media ,SS pipe with ceramic liner inside, ceraic composite plate, cyclones , Rubber coated roller ,ceramic adhensive etc.
4. What payment term can we do?
T/T, L/C at sight.
5. What services can we provide?
Accept customized according to your requirements.
No strict require on the MOQ, accept small order
Hot Tags: hexagonal anti-wear ceramic lining mosaic, manufacturers, suppliers, factory, price, made in China, wear resistant ceramic tiles, Hexagonal Ceramic Lining Sheet, Alumina Wear Resistant Ceramic Lining Cube, ceramic liner with salient point, alumina ceramic block, Wear Resistant Ceramic Lining with Buckle
