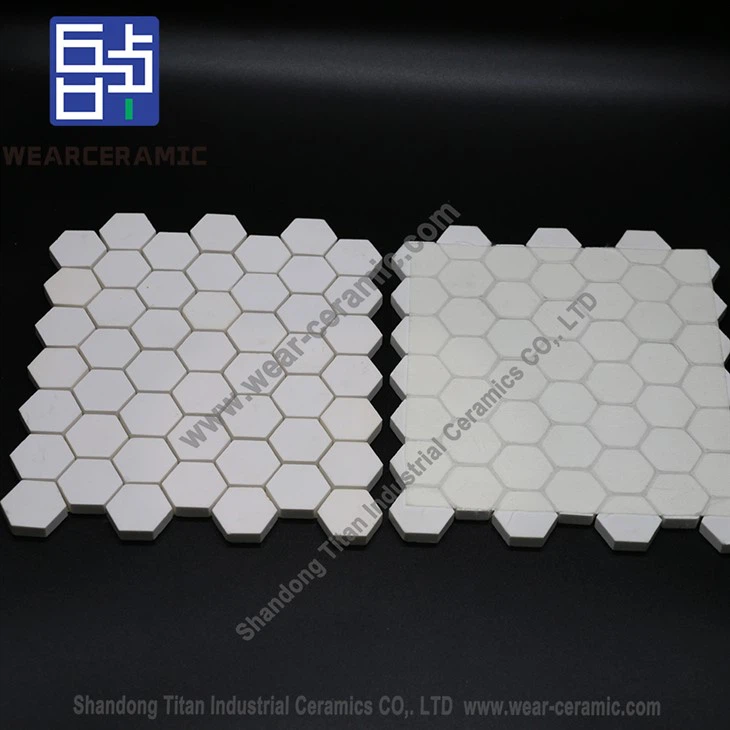

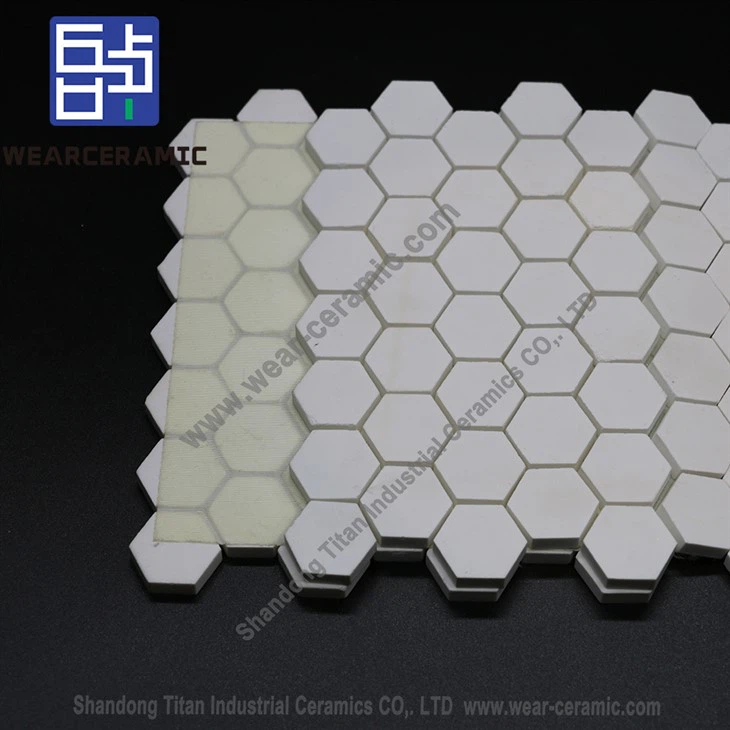

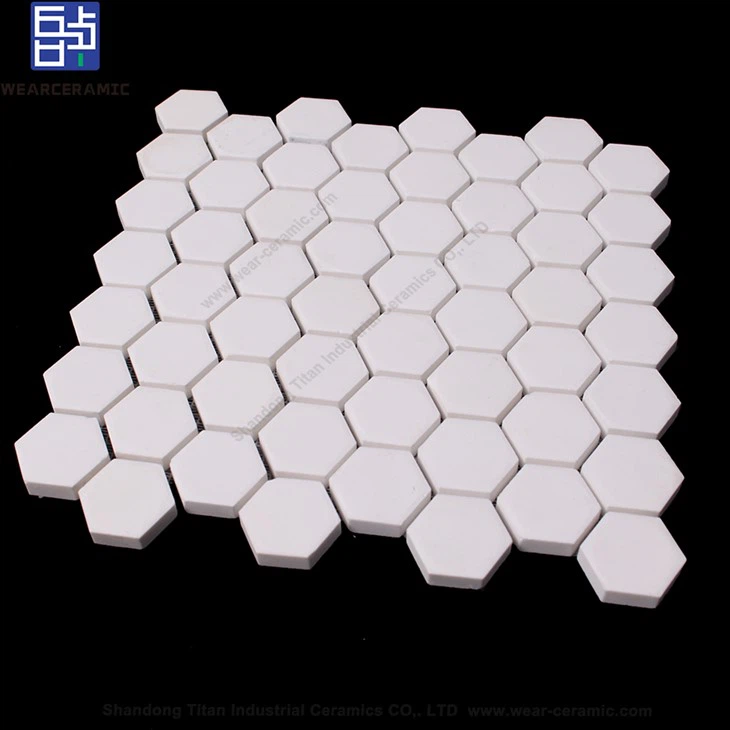

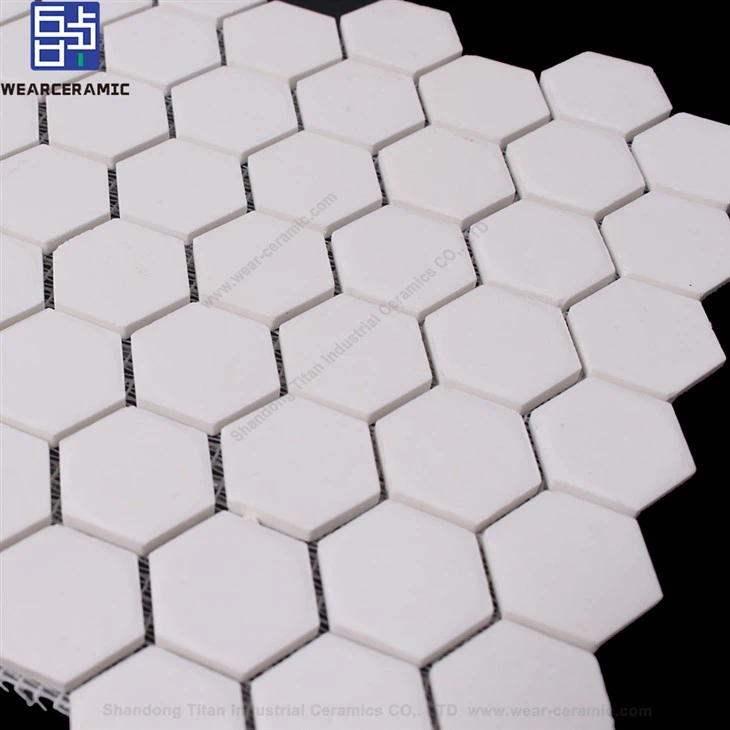

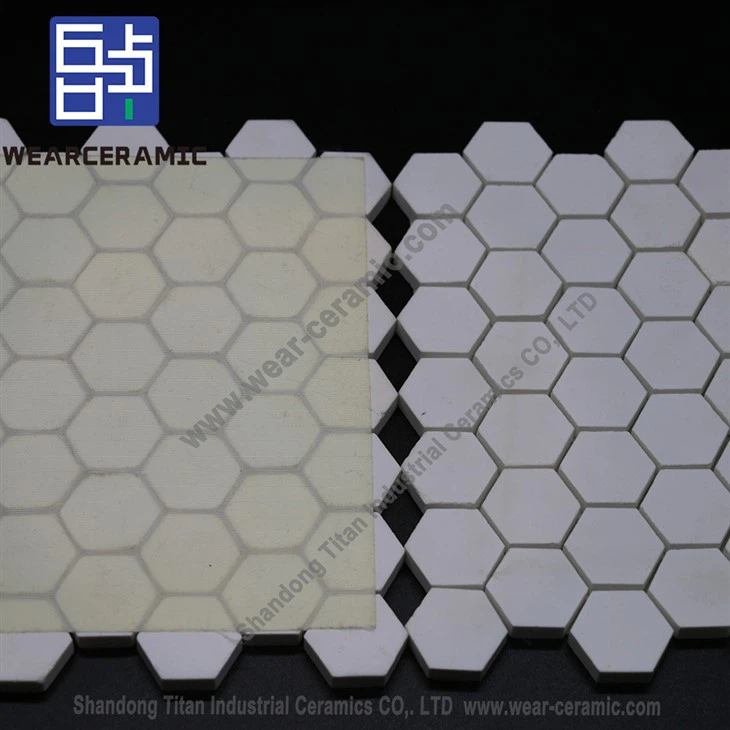

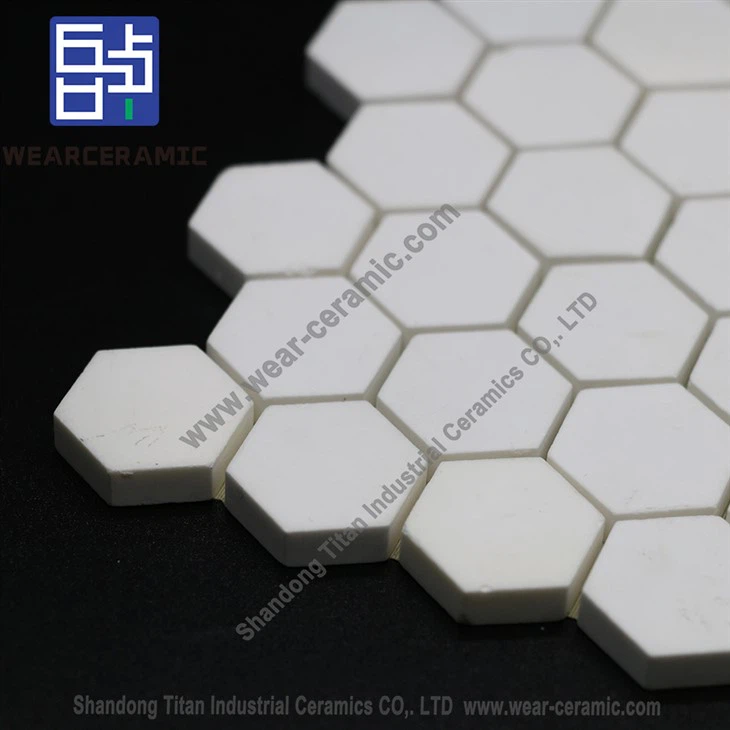

Hexagon Alumina Ceramic Lining Sheet Mosaic
Al2O3 ： 92%
Bending strength(MPa) ： >=220
Compressive strength(MPa) ： >=1050
Fracture toughness (MPam1/2) ： >=3.7
Rockwell hardness (HRA)： >=82
Loss bulk(cm3)： <=0.25
Bulk density(g/cm3) ： >=3.6
Feature :high hardness, corrosion resistance,wear resistance.
Product Introduction
Hexagon alumina ceramic lining sheet mosaic is also called hexagonal ceramic tile, hexagonal mosaic sheet. It has the characteristics of high hardness, corrosion resistance and wear resistance.Generally speaking, ceramic mosaic can be pasted into different sizes according to different equipments. And we also can produce hexagon alumina ceramic lining sheet mosaic of different sizes and thickness according to customers' requirements.
Properties
1.The hexagon alumina ceramic lining sheet mosaic has the characteristics of high hardness,corrosion resistance,wear resistance,high temperature resistance.
2.The wear-resistant alumina ceramic lining is firmly bonded to the equipment, has good heat resistance, and can operate at 350°C for a long time without aging.
Chemical composition and physical properties
| Series | BM92 | BMG95 |
| AL2O3(%) | 92±0.5 | 95±0.5 |
| Bending strength (Mpa) | ≥220 | ≥250 |
| Compressive strength (Mpa) | ≥1050 | ≥1300 |
| Fracture toughness(MPam1/2) | ≥3.70 | ≥3.80 |
| Rockwell hardness(HRA) | ≥82 | ≥85 |
| Wear volume(cm3) | ≤0.25 | ≤0.2 |
| Bulk density(g/cm3) | ≥3.6 | ≥3.65 |
Specification Available
| Length*Width | Height |
| 10*10 | 3-10 |
| 17.5*17.5 | 3-10 |
| 20*20 | 4-10 |
| 25-25 | 4-10 |
NOTE: Other dimension can be customized according to customers' requirements.
Application
Mosaic tiles sheet is used as wear-resistant materials for material conveying equipment or liquid flowing through the surface of pipelines in petroleum, mining, steel mills, power plants, cement and other industries,the main function is to effectively resist the abrasive effect on the pipe wall when the material passes through, which can effectively prolong the service life of the equipment.
Our ceramic tiles
The production process
Hot Tags: hexagon alumina ceramic lining sheet mosaic, manufacturers, suppliers, factory, price, made in China, square ceramic, high alumina ceramic tiles, Hexagon Alumina Ceramic Lining Sheet Mosaic, alumina ceramic grinding column, wear resistant ceramic lining, Wear Resistant Ceramic Lining with Buckle
