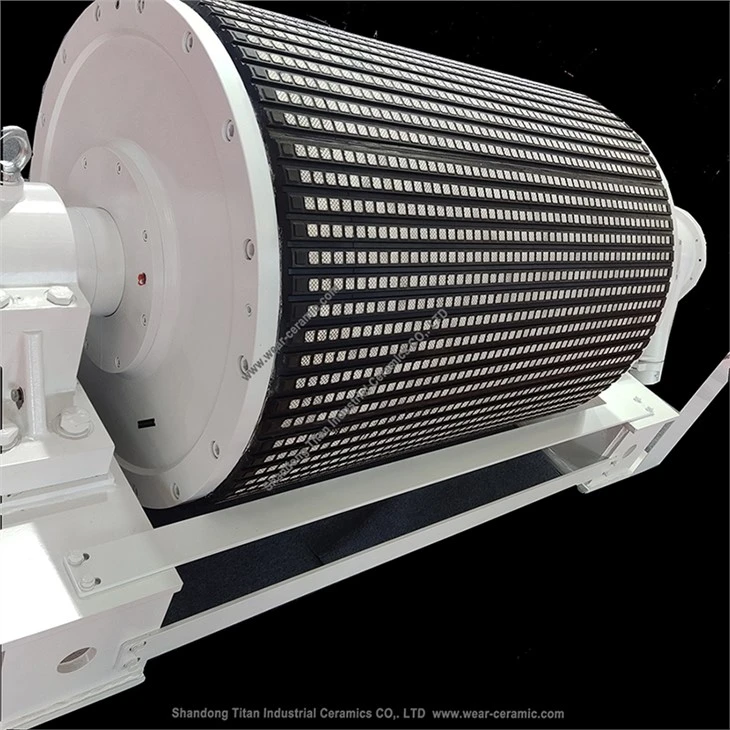

ceramic rubber lagging rollers

Product Name:ceramic rubber lagging rollers
Alumina content:92% 95%
Bending strength(MPa) ：>=220 250
Compressive strength(MPa)： >=1050 1300
Fracture toughness (MPam1/2) ： >=3.7 3.8
Rockwell hardness (HRA) ： >=82 85
Loss bulk(cm3)： <=0.25 0.2
Bulk density(g/cm3) ： >=3.6 3.65
Certificate:ISO9001
Customized: available
Product Packaging: pallet /as requirements

Send Inquiry

Product Introduction

Details

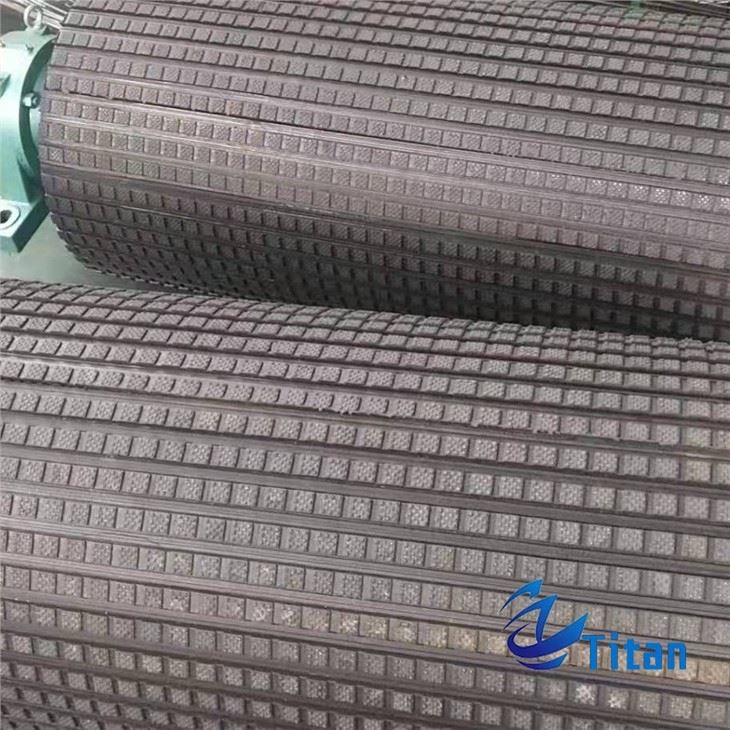

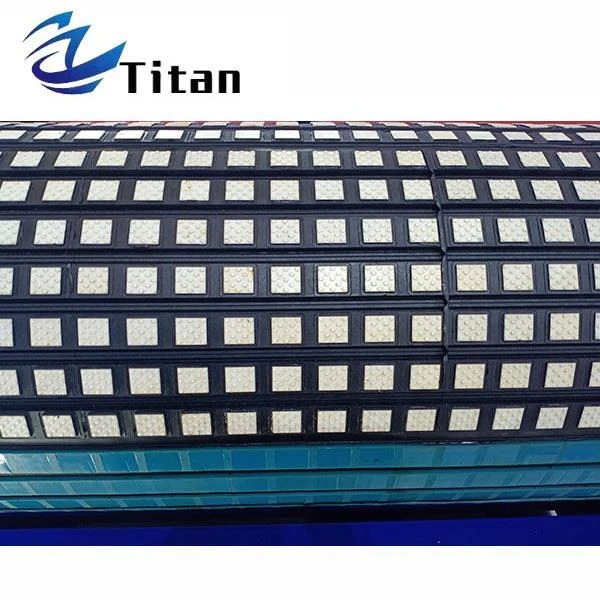

Ceramic drum lagging is to use hot vulcanization process to vulcanize wear-resistant ceramics with bumps on the surface into special rubber according to a certain layout, and then cold paste it on the surface of the drum to replace traditional rubber. It has many performance advantages in production and use.

Advantages

1. The high wear resistance of surface ceramics is applied to the driving drum of the belt conveyor, the ceramics with special structure, the special arrangement mode and the special rubber structure, so as to increase the friction coefficient between them and the belt and prevent the belt from slipping.

2. Under the same load, it can reduce the tension of the belt and extend the life of the belt.

3. The wear resistance of the ceramic makes the service life of the driving drum more than ten times than traditional drum.

Product Application

Ceramic rubber lagging rollers is suitable for extremely harsh conditions such as high abrasion, easy slipping, material or surrounding environment humidity.

1. Under harsh working environment;

2. Transport a variety of wet, muddy and highly abrasive materials;

3. High-strength, high-tension conveying system

Technical Data of ceramic tile

Series	BM92	BMG95
AL2O3 (%)	92±0.5	95±0.5
Bulk density(g/cm3)	≥3.6	≥3.65
Compressive strength (MPa)	≥1050	≥1300
Bending strength (MPa)	≥220	≥250
Fracture toughness (MPam1/2)	≥3.70	≥3.80
Rockwell hardness (HRA)	≥82	≥85
Loss bulk (cm3)	≤0.25	≤0.2
