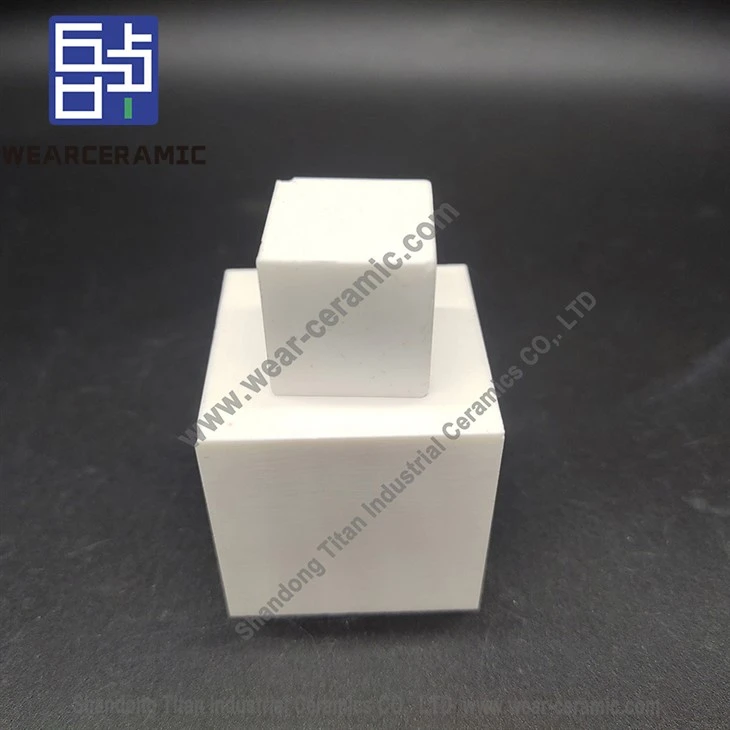

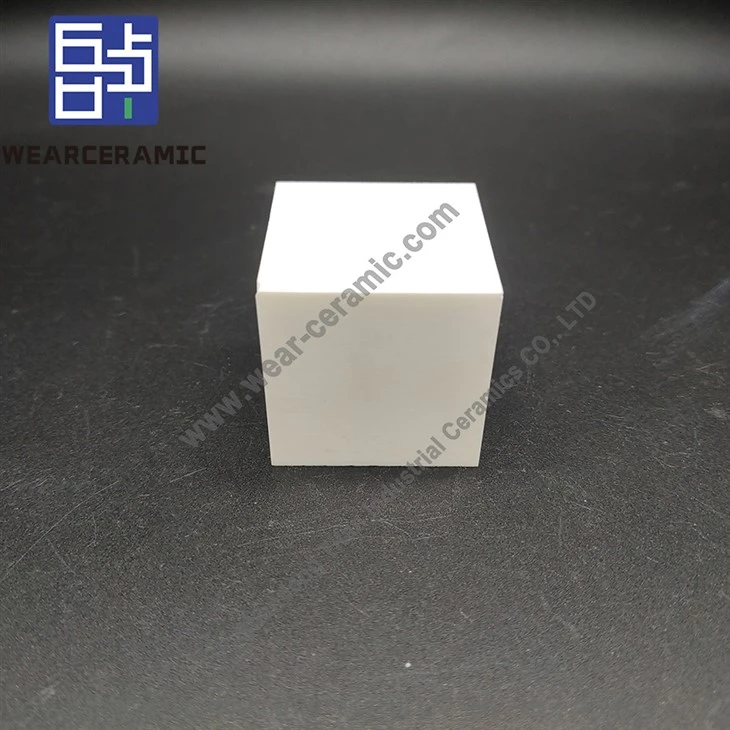

Wear Resistant Ceramic Lining Cube
Al2O3 ： 92%
Bending strength(MPa) ： >=220
Compressive strength(MPa) ： >=1050
Fracture toughness (MPam1/2) ： >=3.7
Rockwell hardness (HRA)： >=82
Loss bulk(cm3)： <=0.25
Bulk density(g/cm3) ： >=3.6
Feature:high hardness, smooth surface.
Product Introduction
Wear Resistant Ceramic Lining Cube is a new type of wear-resistant material, which greatly improves the impact resistance of ceramics by combining rubber and
ceramics. It is very suitable for the use of wear-resistant protection in the position with large frontal impact.
Benefits: Because wear-resistant alumina ceramic lining is made of an inorganic, non-metallic material, it won't harm the environment. It also has good toughness and shock resistance, strong fracture toughness, and high mechanical strength. These properties help it effectively prevent damage and peeling brought on by impacts.
Feature
There are several benefits to using alumina ceramic tiles.
1. High hardness: its Rockwell hardness is HRA80-90, the hardness is second only to diamond, far exceeding the wear resistance of wear-resistant steel and stainless steel.
2. Excellent wear resistance: its wear resistance is equivalent to 266 times that of manganese steel and 171.5 times that of high chromium cast iron. According to our customer follow-up survey over the past ten years, under the same working conditions, the service life of the equipment can be extended by at least ten times.
3. Light weight: its density is 3.6g/cm3, which is only half of that of steel, which can greatly reduce the load on equipment.
4. Strong bonding and good heat resistance: the wear-resistant ceramic lining is pasted on the inner wall of the equipment with heat-resistant superglue. Long-term operation without aging at 350°C
Technical Specific
| AL2O3(%) | 92±0.5 | 95±0.5 | 95±0.5 |
|
Bending strength(Mpa) |
≥220 | ≥250 | ≥300 |
|
Compressive strength (Mpa) |
≥1050 | ≥1300 | ≥1600 |
|
Fracture toughness (MPam1/2) |
≥3.70 | ≥3.80 | ≥4.0 |
| Rockwell hardness(HRA) | ≥82 | ≥85 | ≥88 |
| Wear volume(cm3) | ≤0.25 | ≤0.2 | ≤0.15 |
| Bulk density(g/cm3) | ≥3.6 | ≥3.65 | ≥3.7 |
NOTE: Size can be customized according to customers' requirements.
Uses
Coal conveying, material conveying system, pulverizing system, ash discharge, dust removal system and other mechanical equipment with large wear and tear in thermal power, steel, smelting, machinery, coal, mining, chemical, cement, port and wharf enterprises, etc., can be used according to different Choose different types of products according to your needs.
Our product
The production process
FAQ
A: We are the manufacturer in Zibo city, our products have competitive price and quality
guarantee. Welcome to send your inquiry!
Q: How about the Delivery time?
A: 5-7days after receiving the deposit based on the MOQ. Normally, 15-20days to finish the order for a 20ft container.
Q: How can you guarantee the product quality?
A: We have the quality control system ISO9001, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.
Q: I'd like to know your Payment terms.
A: Basically, the payment terms are T/T, L/C at sight.
Q: Beat Prices?
A:We are the manufacture and our president build this company from nothing. So we are the professional
and will do the best price.
Q:How can I know how my order is being done?
A:We will inspect and test all items in order to avoid damage and missing parts before shipping. The detailed
inspection pictures of the order will be sent to you for your confirmation before delivery.
