Product introduction

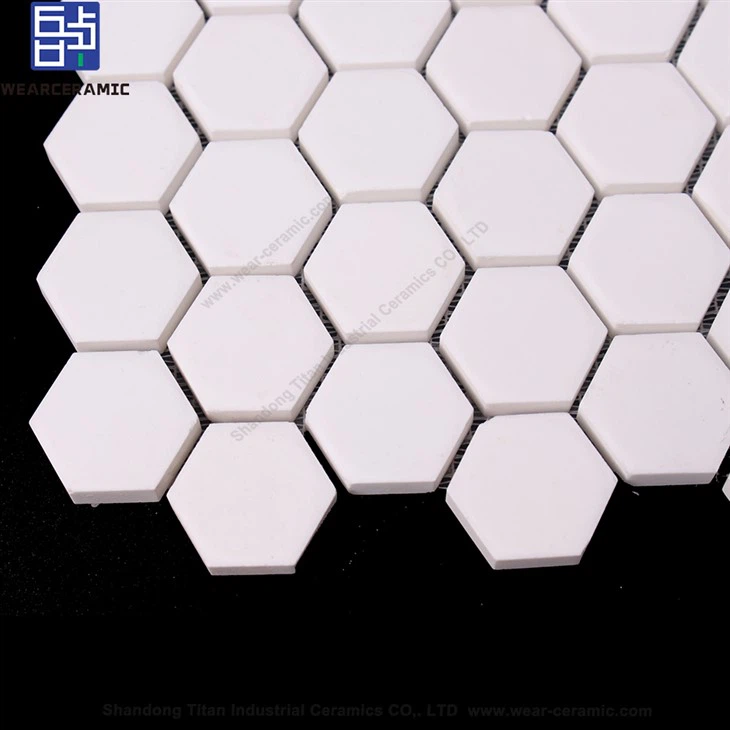

Alumina wear-resistant lining bricks, also known as alumina ceramic liners or ball mill lining plates, are engineered to protect grinding equipment from continuous abrasion and chemical attack. Their high hardness, compact structure and low wear rate provide reliable surface protection during long-term operation. The precise shape and consistent dimensions also help achieve a close-fitting lining arrangement.
These ceramic liners are widely installed inside ball mills, where they help reduce direct contact between the mill body and grinding materials. Their excellent wear and corrosion resistance can extend the service interval of the equipment while reducing maintenance requirements, making them a practical solution for demanding grinding applications.
Advantage
With consistent dimensions and a uniform profile, the ceramic pieces can be installed in combination with male and female components or arranged directly against one another, creating an effective barrier between the equipment surface and abrasive materials.
Under comparable operating conditions, the reported wear rate can be significantly lower than that of conventional manganese steel and high-chromium cast iron. The clean white appearance also helps prevent unwanted discoloration or contamination of processed materials.
The ceramic offers high hardness together with reliable impact resistance, making it suitable for protecting equipment exposed to hard and abrasive solids. Its stable chemical structure provides good resistance to acidic and alkaline media, while its thermal stability allows use in elevated-temperature applications when the installation system is properly selected.
Chemical Composition and Physical Properties
| Series | BM92 | BMG95 | BME95 | BMZTA | BMZR |
| AL2O3(%) | 92±0.5 | 95±0.5 | 95±0.5 | ≥75 | - |
| ZrO2(%) | - | - | - | ≥21 | 94.8±0.5 |
|
Bending strength (Mpa) |
≥220 | ≥250 | ≥300 | ≥400 | ≥800 |
| Compressive strength (Mpa) | ≥1050 | ≥1300 | ≥1600 | ≥2000 | - |
|
Fracture toughness (MPam1/2) |
≥3.70 | ≥3.80 | ≥4.0 | ≥4.5 | ≥7 |
|
Rockwell hardness (HRA) |
≥82 | ≥85 | ≥88 | ≥90 | ≥88 |
| Wear volume (cm3) | ≤0.25 | ≤0.2 | ≤0.15 | ≤0.05 | ≤0.02 |
| Bulk density (g/cm3) | ≥3.6 | ≥3.65 | ≥3.7 | ≥4.1 | ≥5.9 |
Specification Available
| Type | Length(mm) | Width(mm) | Height(mm) |
| Flat tile | 50~150 | 25~100 | 6~50 |
| Weldable tile | 50~150 | 30~100 | 10~50 |
| Trapezoidal tile | 50~150 | 20~100 | 8~50 |
FAQ
01.What are Wear Resistant Ceramic Tiles used for?
02.What material are the tiles made from?
03.Can the tiles be customized?
04.How are ceramic tiles installed?
05.How long do ceramic wear tiles last?
06.How can I choose the right product?
Looking for a reliable Wear Resistant Ceramic Tiles solution for mining, cement, coal, steel or bulk-material handling equipment?
Send TITAN your equipment dimensions, material type, operating temperature, wear conditions and required quantity.
Our team can recommend a suitable ceramic grade, tile size, thickness and installation method for your application.
Contact TITAN today for customized specifications and a competitive quotation.
