Ceramic Rubber Liner
Product Material:Ceramic + Rubber
Product Size:as customer requirement
Product Color:white
Certificate:ISO9001
Customized: available
Product Packaging:25kgs/bag /as requirements
Description
The wear-resistant three-in-one ceramic lining plate structure: The lining plate adopts the hot vulcanization process to vulcanize the toughened ceramic sheet in the steel plate groove equipped with special rubber, that is to say, it is a composite of ceramic, rubber and steel plate. Ceramic Rubber Liner has the advantages of these three materials at the same time.
The high hardness of wear-resistant ceramics provides excellent wear resistance for the lining. The steel plate is the structural support. Its strong toughness and ductility protect the ceramic lining and enhance the impact resistance of the lining. Special rubber makes the ceramic It is perfectly combined with the steel plate, and further enhances the impact resistance of the liner.
The properties of each material in the 3-in-1 liner complement each other, resulting in a superior wear and impact liner.
Product Features:
1)Impact resistance: Ceramic Rubber Liner has good buffering performance, which can effectively buffer the impact caused by ore falling from a high altitude;
2)Anti-falling: The ceramic rubber steel plate is vulcanized in one piece, and the combination is very firm. Each liner has a countersunk bolt passing through the bottom steel plate, which is firmly welded, and double insurance;
3)Convenient maintenance: The lining board has counter sunk bolts and the lining board is more than 60% lighter than the wear-resistant steel plate, so the installation is very convenient.
Application Field
Alumina ceramic composite plate is mainly used in thermal power industry (coal falling pipe liner), iron and steel industry (blast furnace hopper, cylindrical mixer), cement building materials industry (raw clinker chute), smelting industry (hopper), machinery industry (hopper), coal industry (transfer station chute), mining industry (primary crushing, medium crushing and fine crushing transfer chute hopper), chemical industry (chutes), silicone industry (first-class, second-class and third-class cyclone dust collector), coal chemical industry (coal drop pipe), Port wharf (ship unloader hopper), commercial concrete industry (mixer lining plate), automobile manufacturing and other industries with serious wear and tear.
Indicator data
| Item Index | rubber |
| Bulk Density(g/cm³) | 1.4 |
| Tensile Strength at break(MPa) | ≥14 |
| Elongation at break(%) | ≥250 |
| Shore Hardness | 48-65 |
| Adhesive between steel&rubber(Mpa) | ≥3.5 |
| Adhesive between rubber&ceramic(Mpa) | ≥3.5 |
| Thermal conductivity(normal temperature) | 2 |
| Aging period(years) | ≥1.5 |
| Working temperature(ºC) | -50-200 |
| Al2O3(%) | 92±0.5 | 95±0.5 |
| Bending strength(Mpa) | ≥220 | ≥250 |
| Compressive strength(Mpa) | ≥1050 | ≥1300 |
| Fracture toughness(Mpam1/2) | ≥3.7 | ≥3.80 |
| Rockwell hardness(HRA) | ≥82 | ≥85 |
| Loss bulk (g/cm³) | ≤0.5 | ≤0.2 |
| Bulk density(g/cm³) | ≥3.6 | ≥3.65 |

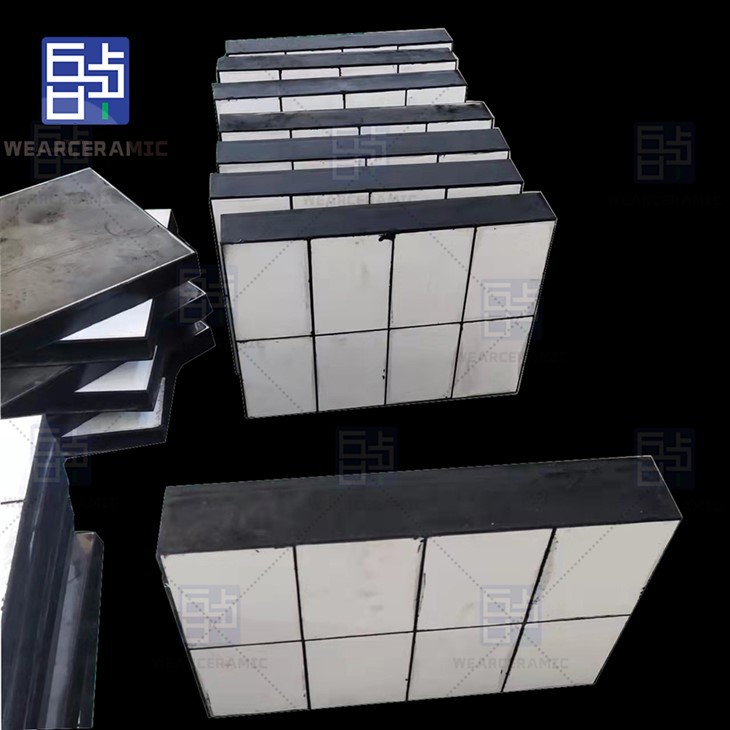

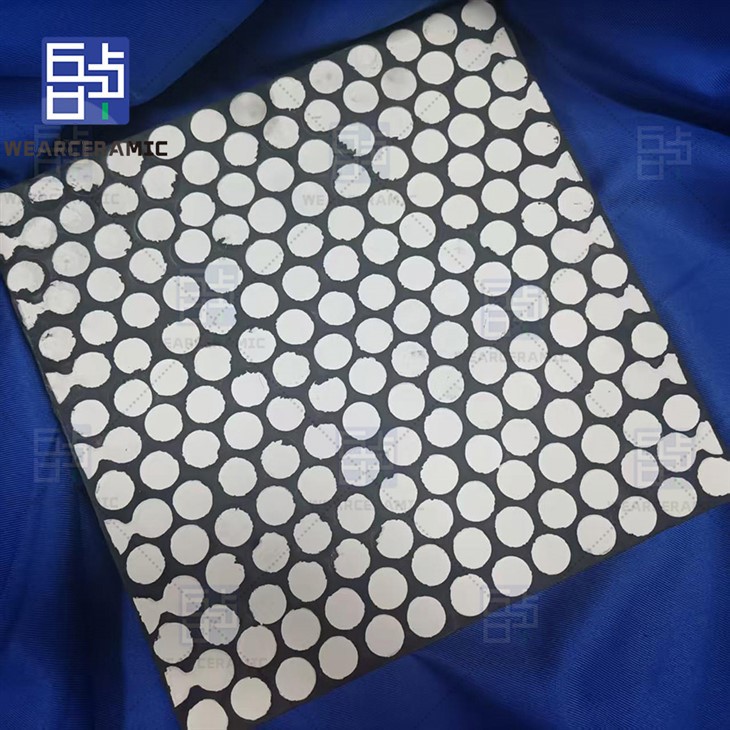

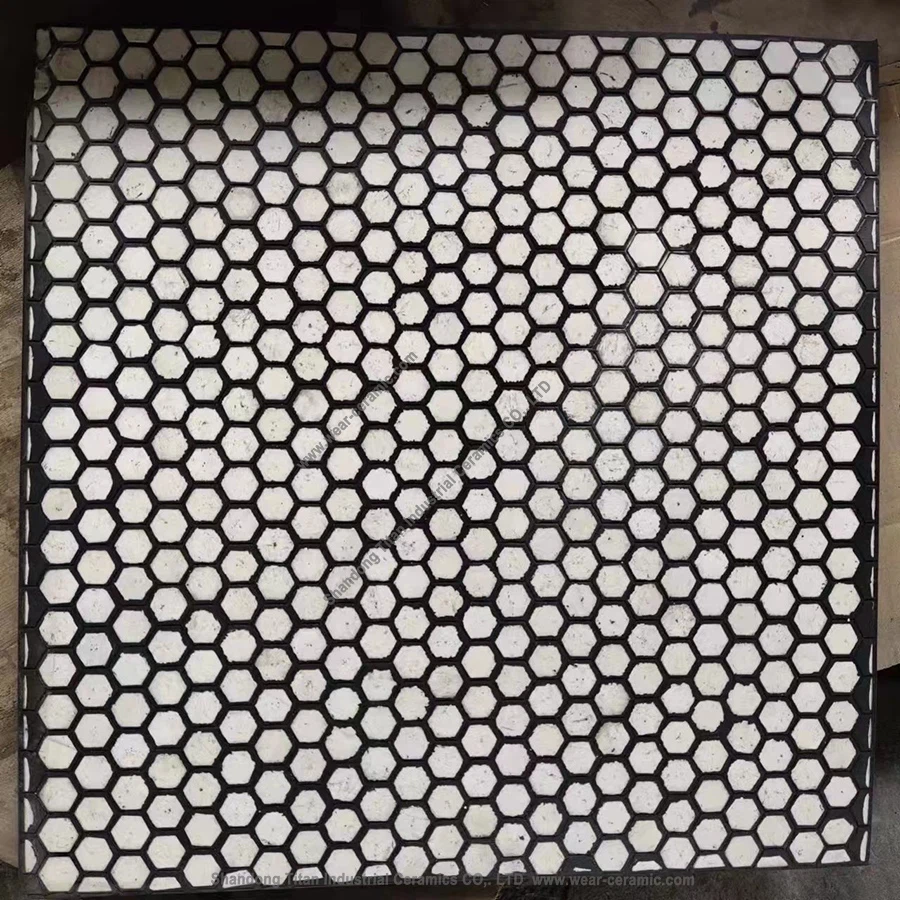

Product picture
What else we have ?
Our workshop
FAQ
A: We are a manufacturer.
Q: Is the sample free?
A: Yes, we offer free samples within 100g.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. It is 7-15 days if the goods are not in stock.
A: 30% T/T deposit , balance against the BL copy.
A: Yes. Please kindly send the details information.
