Ball Mill Lining Brick
Product Code: BM92/BM95/BME95/BMZTA
Alumina Content: 92%/95%/75%
Bending strength: ≥220/≥250/≥300/≥400MPa
Product Color: White
Certifified: ISO 9001
Size: Custom-made as your requirements

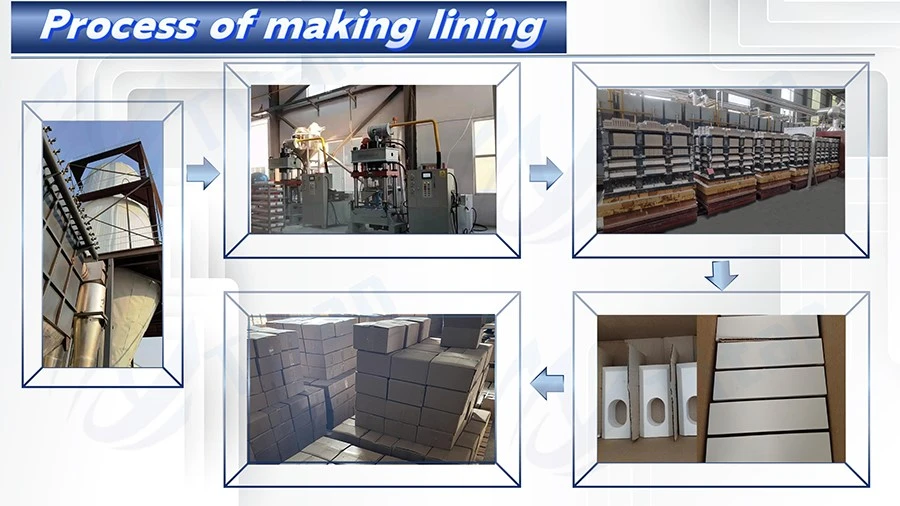

Process of Making Ball Mill Lining Brick
After the ore containing alumina is mined, it will be roughed into industrial alumina (γ-AL2O3), at this time the alumina content is about 65%, and then deeply processed into aluminum oxide powder (α-AL2O3), the alumina content will reach 99.5%, which can be used as raw materials of fine ceramics by various ceramic enterprises.
After the aluminum oxide powder enters the factory, it is generally made first to ensure that the fineness of the aluminum oxide powder meets the production demand. A small amount of binder, coarser particles and fine powder are matched to become billet, which is placed in the metal model and formed under pressure on the press.
The wear-resistant aluminum oxide lining brick after forming is put into the kiln car and sent to the high-temperature tunnel kiln. After high temperature calcination at about 1700℃, the finished lining brick is completed. After that, the worker will screen, polish and then pack.
Characteristics of Wear-resistant Lining Brick
1. wear-resistant lining brick is mainly composed of high quality alumina, high purity, can greatly reduce the pollution caused by grinding materials.
2. good wear resistance, effectively prolong the service life of the machine equipment.
3. with high aluminum ball with grinding out fine paste.
4. corrosion resistance, high density, high mechanical strength and so on.
Specifications
|
Series |
BM92 |
BMG95 |
BME95 |
BMZTA |
|
AL2O3 (%) |
92±0.5 |
95±0.5 |
95±0.5 |
≥75 |
|
Bulk density(g/cm3) |
≥3.6 |
≥3.65 |
≥3.7 |
≥4.1 |
|
Compressive strength (MPa) |
≥1050 |
≥1300 |
≥1600 |
≥2000 |
|
Bending strength (MPa) |
≥220 |
≥250 |
≥300 |
≥400 |
|
Fracture toughness (MPam1/2) |
≥3.70 |
≥3.80 |
≥4.0 |
≥4.5 |
|
Rockwell hardness (HRA) |
≥82 |
≥85 |
≥88 |
≥90 |
|
Loss bulk (cm3) |
≤0.25 |
≤0.2 |
≤0.15 |
≤0.05 |
Application
Wear-resistant alumina lining brick has high hardness, high density, low wear, good regularity, corrosion resistance and other characteristics, used in ball mill wear-resistant lining, widely used in ceramics, cement, paint, pigment, chemical, coating and other industries, can effectively improve grinding efficiency, reduce grinding costs, reduce product pollution.

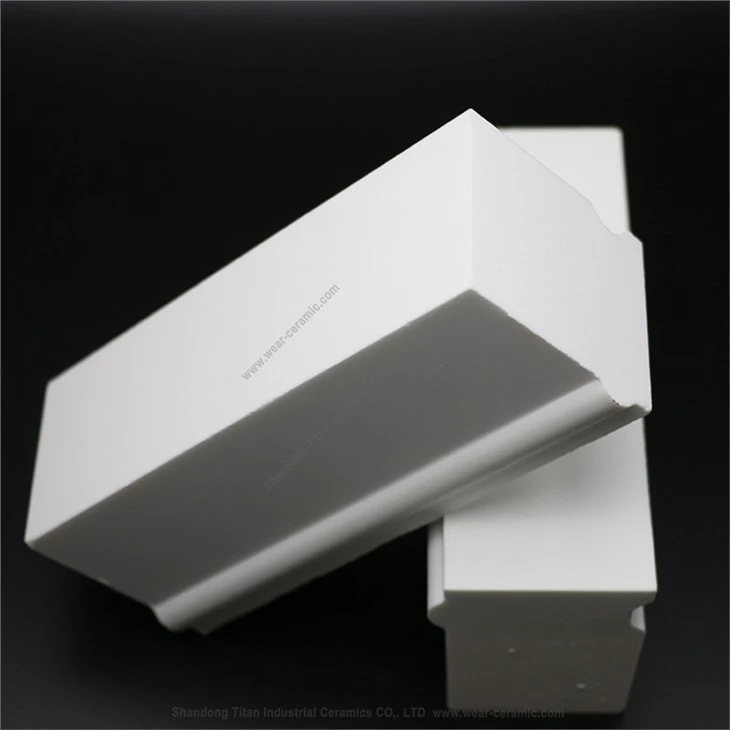

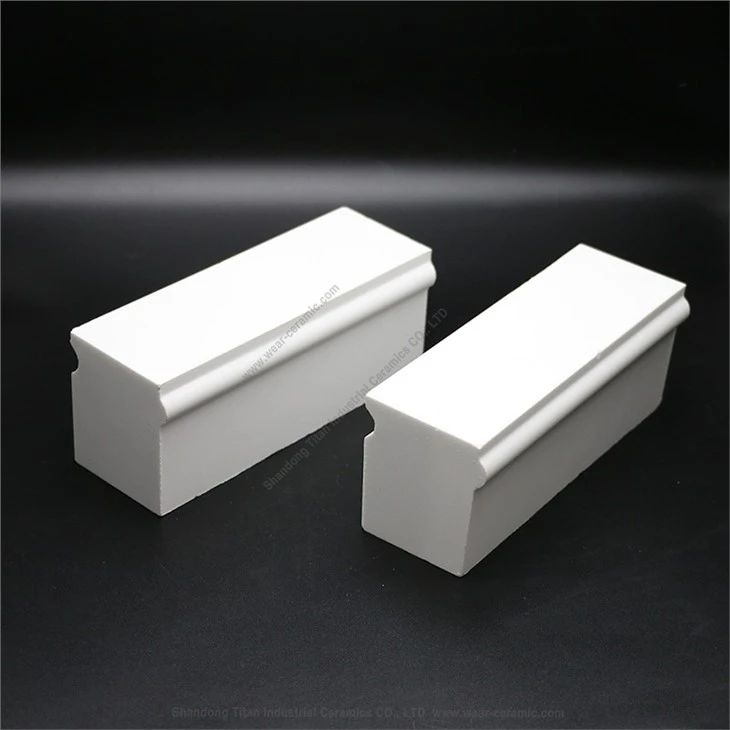

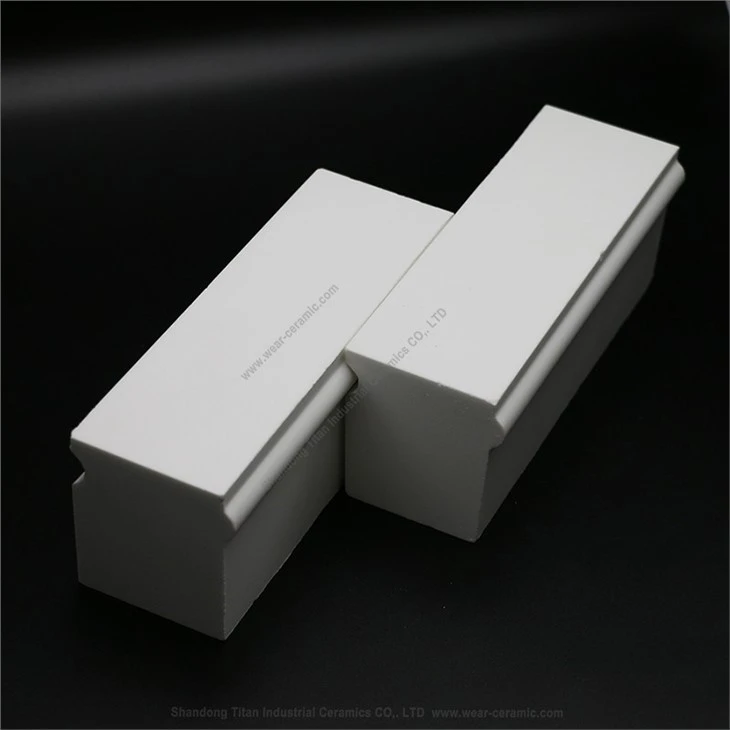

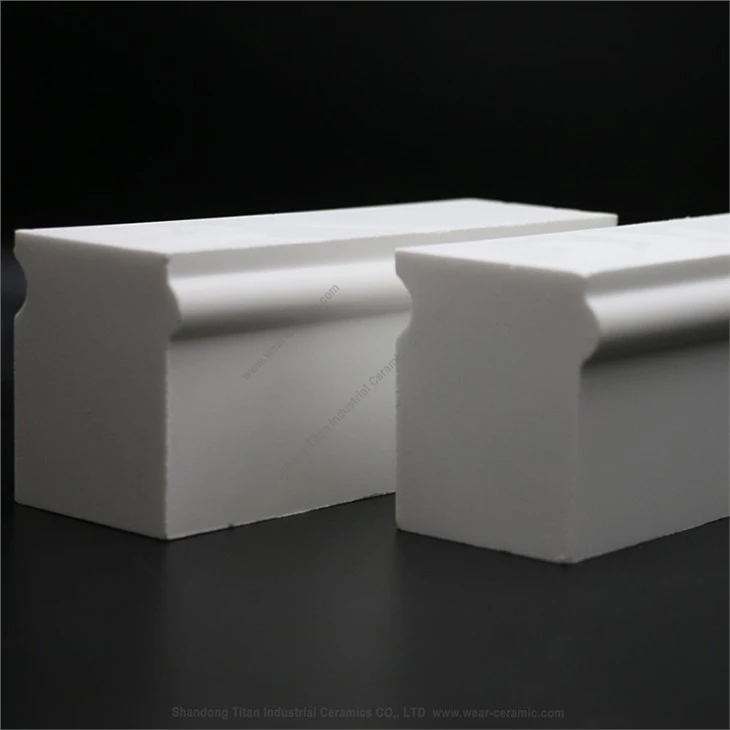

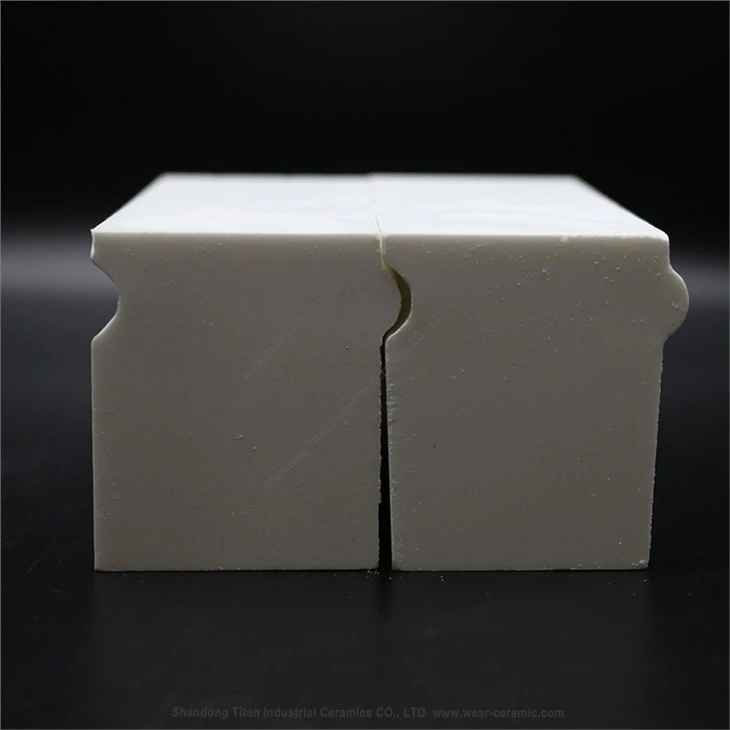

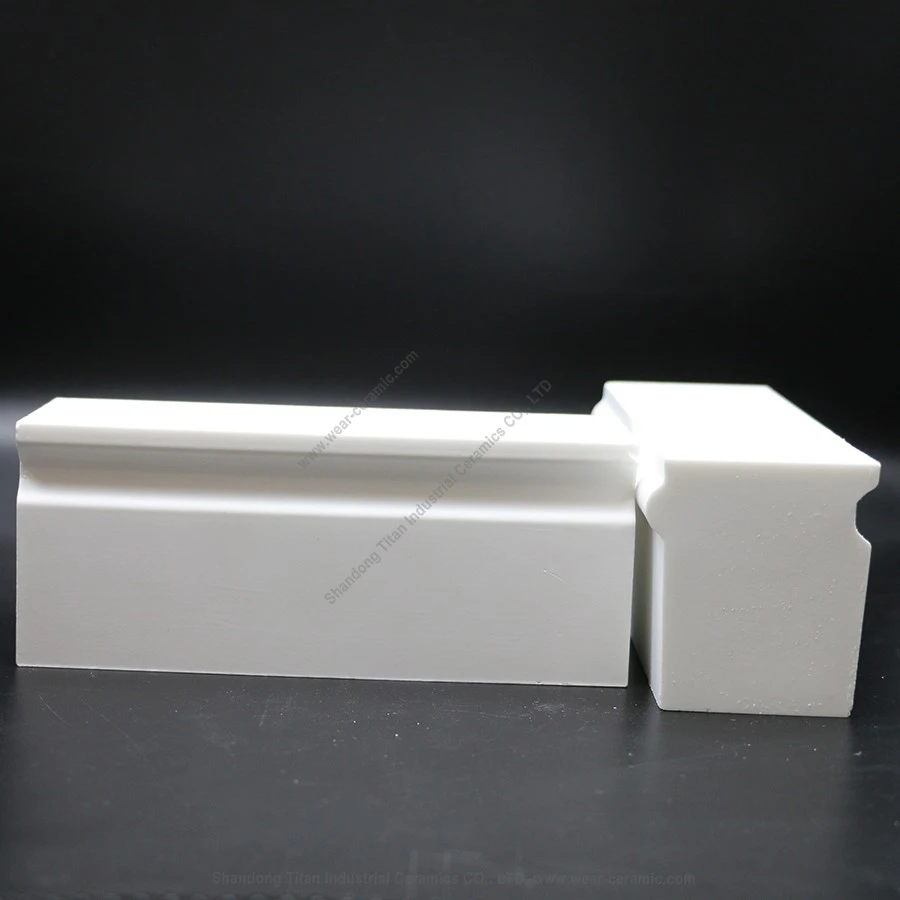

Product Picture
