Alumina Ceramic Cylinder

Product Name:Alumina Ceramic Cylinder
Al2O3: 92% 95%
Mohs Hardness : 9
Bulk density(g/cm3): >=3.6 3.7
Self wearing rate: <= 0.15 0.1
Product Color:white
Certificate:ISO9001
Customized: available
Product Packaging:as requirements
Send Inquiry
Product Introduction

Product Introduction

TITAN Alumina Ceramic Cylinders are designed for demanding grinding and wear protection applications. Made from high-alumina material, they combine high hardness, low wear loss and chemical resistance. Available in different sizes and grades, they provide a practical solution for industrial milling and equipment protection.Aluminum Oxide Ceramic Cyclinder is wildely used in many fields including mechanical, electronics, electrical, semiconductor, automotive,textile, etc. For the good propertities, more and more customers choose Alumina ceramic materials for their applications. Alumina Ceramic can be made to Ceramic Nozzles, Ceramic Sprayers Cyclones, Ceramic Linings, Milling Systems, Ceramic Thread guides, etc.Customized designs are very often to be made.



Product Overview

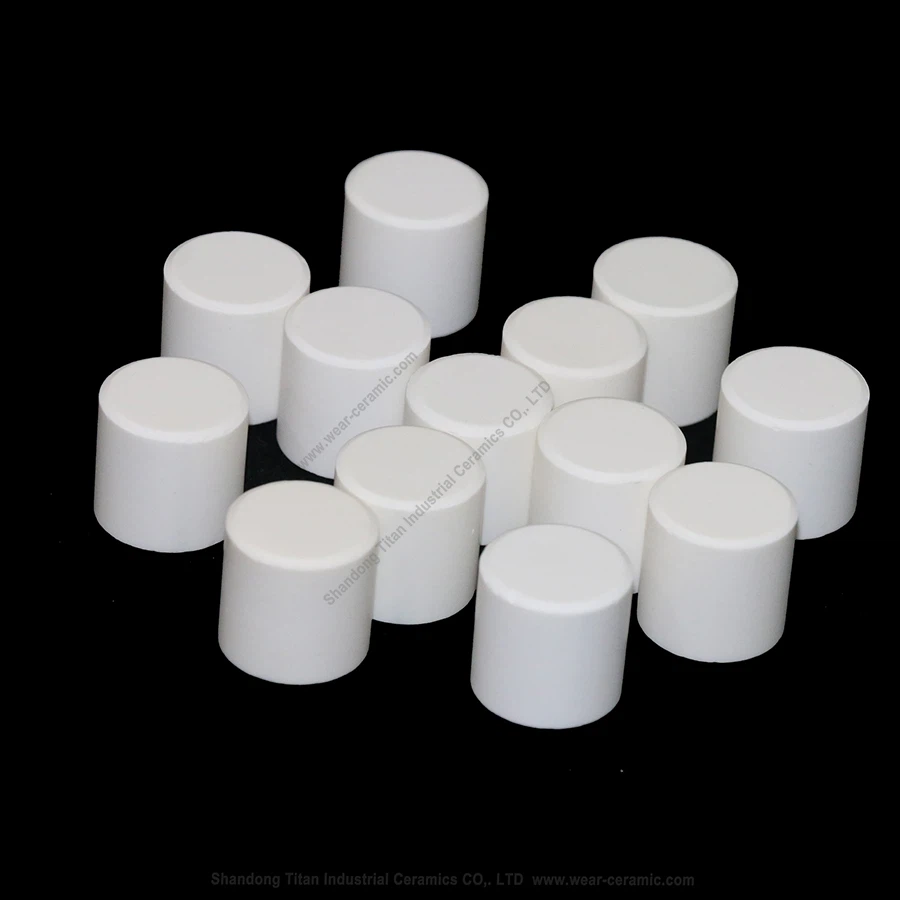

IMG_9031

Alumina Ceramic Cylinders are cylindrical components manufactured from aluminum oxide (Al₂O₃). They are mainly used as grinding media in ball mills, pot mills and vibrating mills. They can also be incorporated into ceramic-rubber composite liners to protect equipment surfaces exposed to continuous abrasion.

Compared with conventional grinding materials, high-alumina cylinders offer a combination of hardness, density and resistance to material loss. Their cylindrical shape provides a different contact pattern from spherical grinding media, making them suitable for specific milling processes where media shape and grinding conditions influence the final result.

Ceramic Cyclinder Advantage

Good mechanical strength ,could suiteble for most of working condition.

Excellent electrical insulation , it also widely used in the Electronic and Electrical Industry.

Good thermal conductivity ,Heat, wear and corrosion resistance.



Application

The Alumina Ceramic Cylinder could not only used as the grinding media for most of raw meterial ,but also could used in composite plate by vulcanization.



Key Features and Benefits



'lt is awesome to work with Creative. amazingy organized,easy to communicate with. responsive with next iterations,and beautiful work.



High Hardness for Abrasion Resistance

TITAN offers 92% and 95% alumina grades, both with a Mohs hardness of 9. This hard ceramic structure helps resist surface damage caused by repeated contact with abrasive particles. For buyers, this can mean slower media consumption and fewer interruptions for replenishment.




Low Wear Loss for Better Cost Control

The listed self-wear rates are no more than 0.15‰ for the 92% grade and 0.1‰ for the 95% grade. Lower media wear helps reduce the amount of grinding material entering the finished powder and supports more predictable operating costs. Actual consumption depends on the mill type, material hardness, loading and operating conditions.




High Density for Grinding Performance

The bulk density is at least 3.6 g/cm³ for 92% alumina and 3.7 g/cm³ for 95% alumina. Suitable media density helps generate effective impact and friction during milling. Selecting the right grade and dimensions can help balance grinding efficiency, energy use and product quality.




Corrosion Resistance and Low Contamination

Alumina is resistant to many chemical environments and does not introduce iron contamination in the same way as steel grinding media. This makes it a useful option for wet or dry processing where material purity is important. Chemical compatibility should still be checked against the actual slurry and process conditions.





Index



Series Size(Mm)
Cylinder

Φ12*12mm    Φ15*15mm    Φ23*23mm

Φ20*10mm    Φ 20*20mm   Φ25*20mm

Φ25*25mm    Φ30*30mm    Φ32*32mm

Φ40*40mm    Φ50*50mm    Φ60*60mm

Half-Cylinder

Φ20*10mm    Φ20*20mm    Φ20*25mm

Φ30*30mm    Φ40*40mm

Pyramid

Φ50/45*50mm           Φ33/28*17mm

Φ32/28*32mm           Φ33/28*33mm

Cylinder With Slot Φ31*31mm



Chemical Composition And Physical Properties
Series BMYMZ92 BMYMZ95
AL2O3(%) 92±0.5 95±0.5
Hardness (Mohs) 9 9
Bulk Density (G/Cm3) ≥3.6 ≥3.7
Self Wearing Rate (%) ≤0.15 ≤0.1



Production process

tiles



Our product

202211221459494effefbed84740e7a0ab15ad5270a145



FAQ





01.What alumina grades are available?

TITAN offers 92% and 95% alumina ceramic cylinders. The appropriate grade depends on the required density, wear performance and processing conditions.

02.What sizes can you supply?

Common diameters range from φ12 mm to φ60 mm, with different height options. Customized dimensions can also be discussed.

03.Can these cylinders be used in different types of mills?

Yes. They are commonly used in ball mills, pot mills and vibrating mills. Please provide your equipment details so the dimensions and grade can be checked.

04.Can alumina cylinders be used in wear-resistant composite panels?

Yes. They can be incorporated into ceramic-rubber composite liners to provide an abrasion-resistant contact surface for bulk-material handling equipment.

05.How do I choose between 92% and 95% alumina?

The 95% grade has a higher listed bulk density and a lower self-wearing rate. However, the best option depends on your material, mill operation, budget and product purity requirements.

06.Does TITAN accept customized orders?

Yes. Please send your drawings, dimensions, required quantity and application details. TITAN can review the requirements and confirm the available manufacturing options.



Looking for reliable ceramic grinding media or customized wear-resistant ceramic components?

Contact TITAN with your required alumina grade, dimensions, application and estimated order quantity. Our team will help you review the specifications and provide a suitable quotation.

Send your inquiry to TITAN today to discuss your Alumina Ceramic Cylinder requirements.
