Alumina Ceramic Hexagonal Piece
Al2O3 ： 92% 95%
Bending strength(MPa) ： >=220 250 300 400 800
Compressive strength(MPa) ： >=1050 1300 1600 2000
Fracture toughness (MPam1/2) ： >=3.7 3.8 4.0 4.5 7
Rockwell hardness (HRA)： >=82 85 88 90
Loss bulk(cm3)： <=0.25 0.2 0.15 0.05 0.02
Bulk density(g/cm3) ： >=3.6 3.65 3.7 4.1 5.9
Product Color:white
Certificate:ISO9001
Customized: available
Product Packaging:carton /as requirements
Description
The raw material of alumina ceramic hexagonal tiles sheet is alumina, which is dissolved with metal compounds and calcined at a high temperature of 1700 ° C.
Alumina ceramic hex tiles sheet is a wear-resistant material, which paste the ceramic tile as a sheet to improve the impact resistance of ceramics. Ideal for wear protection in areas with high frontal impact.
Product Advantages
1. High hardness, Rockwell hardness is HRA80-90, the hardness is second only to diamond
2. Long service life, under the same working conditions, the service life of the equipment can be extended by more than 10 times.
3. The weight is light, the density is 3.6g/cm3, which can reduce the load of the equipment.
4. Alumina Ceramic Hexagonal Piece has firm bonding and good heat resistance.
Technical Data
Length*Width | Height |
12*12 | 6-25 |
12.5*12.5 | 6-25 |
Series | BM92 | BMG95 | BME95 | BMZTA | BMZR |
AL2O3 (%) | 92±0.5 | 95±0.5 | 95±0.5 | ≥75 | - |
ZrO2 (%) | - | - | - | ≥21 | 94.8±0.5 |
Bulk density(g/cm3) | ≥3.6 | ≥3.65 | ≥3.7 | ≥4.1 | ≥5.9 |
Compressive strength (MPa) | ≥1050 | ≥1300 | ≥1600 | ≥2000 | - |
Bending strength (MPa) | ≥220 | ≥250 | ≥300 | ≥400 | ≥800 |
Fracture toughness (MPam1/2) | ≥3.70 | ≥3.80 | ≥4.0 | ≥4.5 | ≥7 |
Rockwell hardness (HRA) | ≥82 | ≥85 | ≥88 | ≥90 | ≥88 |
Loss bulk (cm3) | ≤0.25 | ≤0.2 | ≤0.15 | ≤0.05 | ≤0.02 |
Application
Alumina Ceramic Hexagonal Piece have the characteristics of wear resistance, impact resistance, corrosion resistance, high temperature resistance, and convenient construction. Alumina Ceramic Hexagonal Piece is used in electric power, metallurgy, coal, petroleum, cement, chemical, machinery and other industries Tailings, cement, etc.) is an ideal material for wear-resistant surface of conveying equipment, and it is very safe and reliable to use in the occasions of high-temperature corrosion, high-temperature wear or high-temperature erosion.

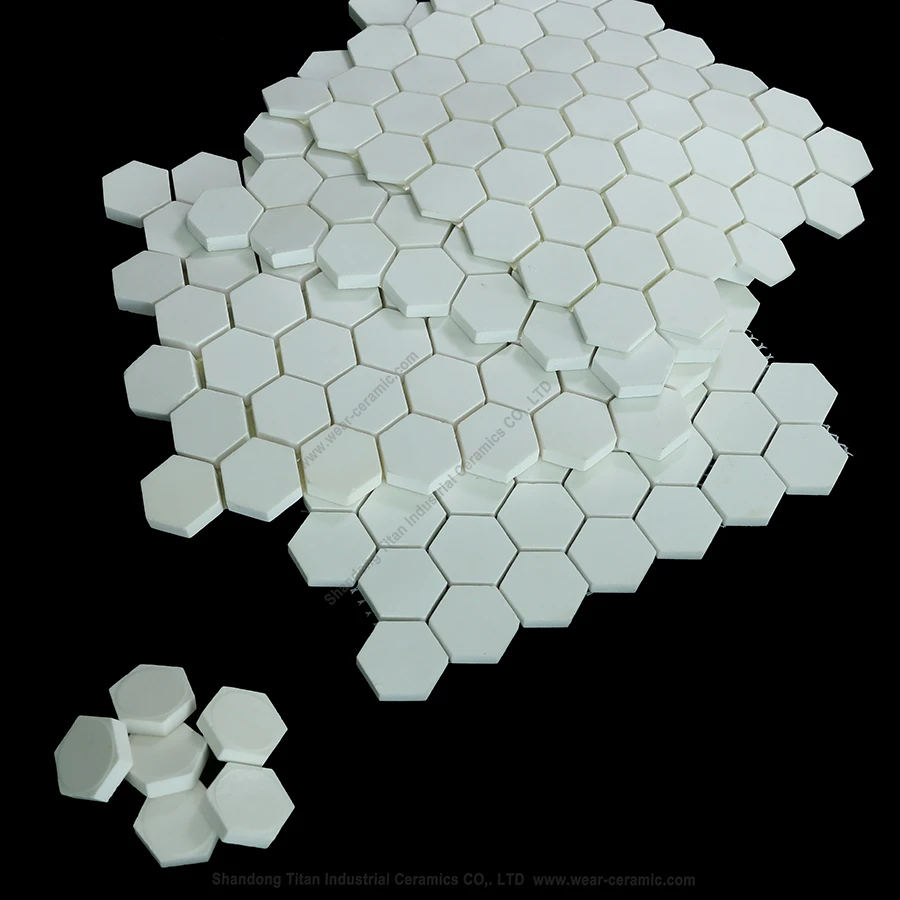

Product Image

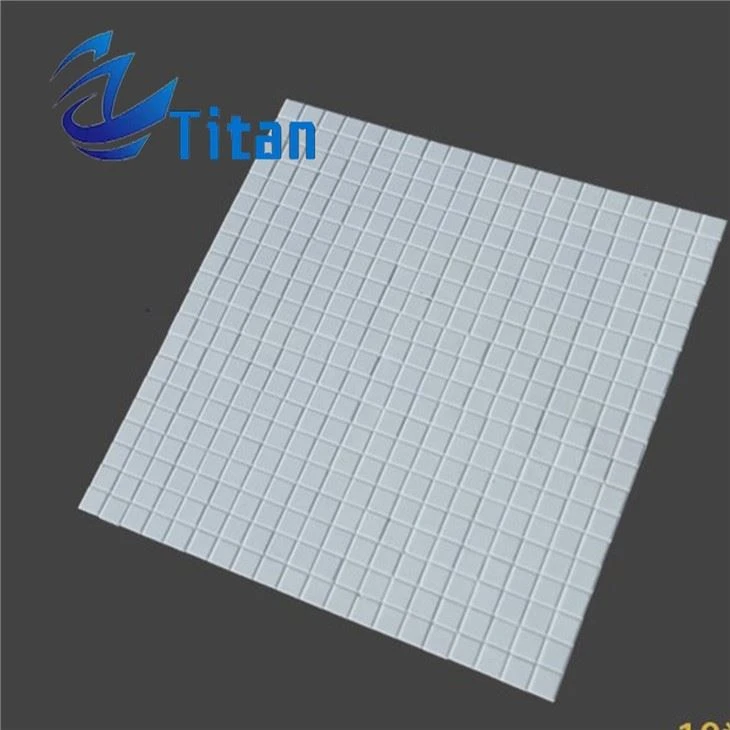

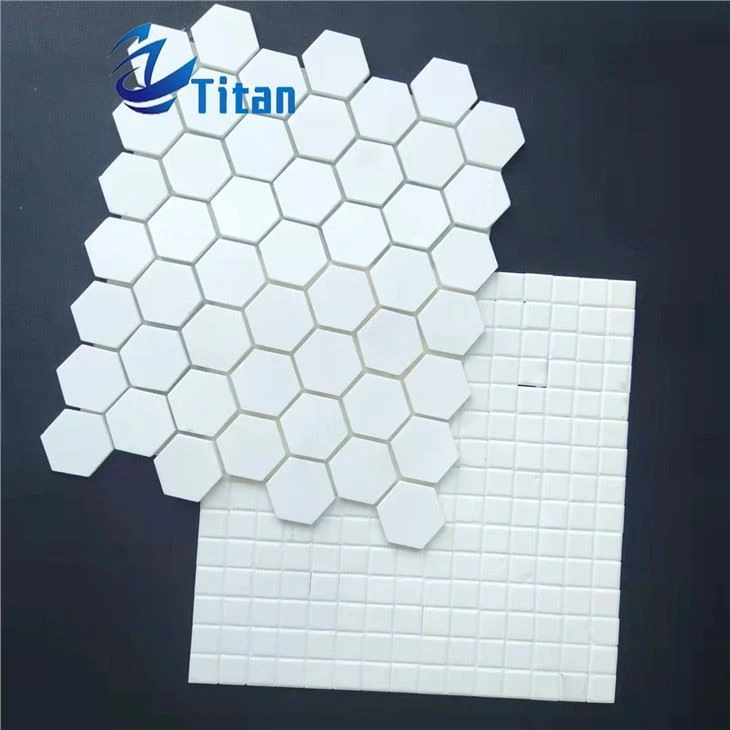

Our ceramic tiles

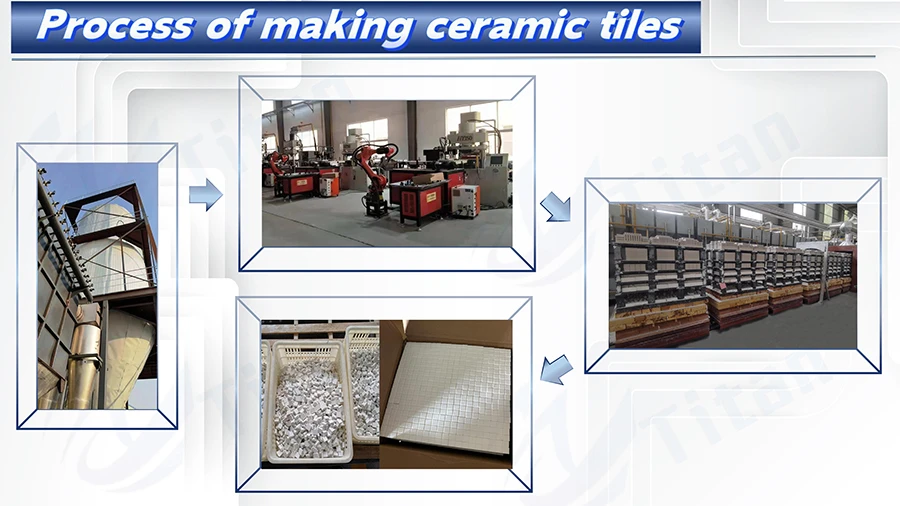

The production process
FAQ
1. Are you are trading company or a factory?
We are a factory, manufacturing high alumina ceramic wear resistant liners in Zibo, China.
2. What is your monthly capacity?
500-650ton per month.
3. What kinds of ceramic wear resistant liners do you manufacture?
92%alumina liner, 95%alumina liner, T95%alumina liner, zirconia tile liner, ZTA tiles , ceramic-rubber composite plates, wearing compound .
4. What is the delivery time?
If we have stock, the delivery time is within 5-7days after order confirmed. If there is no stock, it is usually 15-20days.
5. Can you manufacture ceramic liner according to customers' desgin?
Yes, we have engineer team and we can produce ceramic parts according to the drawings of the customers.
6. What is the packing?
Bag or carton, and then wooden pallet or wooden box, 20~25tons per 1*20"FCL.
7. What is the nearest port?
Qingdao port .
