Wear Resistant Ceramic Mosaics Mat White Ceramic Mosaic Tile

Product Name: Wear Resistant Ceramic Mosaics Mat White Ceramic Mosaic Tile
Al2O3 : 92% 95%
Bending strength(MPa) : >=220 250 300 400 800
Compressive strength(MPa) : >=1050 1300 1600 2000
Fracture toughness (MPam1/2) : >=3.7 3.8 4.0 4.5 7
Rockwell hardness (HRA): >=82 85 88 90
Loss bulk(cm3): <=0.25 0.2 0.15 0.05 0.02
Bulk density(g/cm3) : >=3.6 3.65 3.7 4.1 5.9
Product Color: white
Certificate: ISO9001
Customized: available
Product Packaging: 25kgs/bag /as requirements
Send Inquiry
Product Introduction

Product Description

TITAN Raised Button Alumina Ceramic Tiles feature a distinctive raised working surface designed for direct contact with abrasive materials. Made from high-alumina ceramic, these solid white tiles provide durable surface protection for industrial equipment exposed to continuous material movement and friction.Mozaic ceramic tile is a special corundum ceramic made of Al2O3 as the main raw material and rare metal oxide as the solvent, which is calcined at a high temperature of 1700 ºC.

Mozaic ceramic tile is a new type of wear-resistant material, which greatly improves the impact resistance of ceramics by combining rubber and ceramics. It is very suitable for the use of wear-resistant protection in the position with large frontal impact.



Product Overview

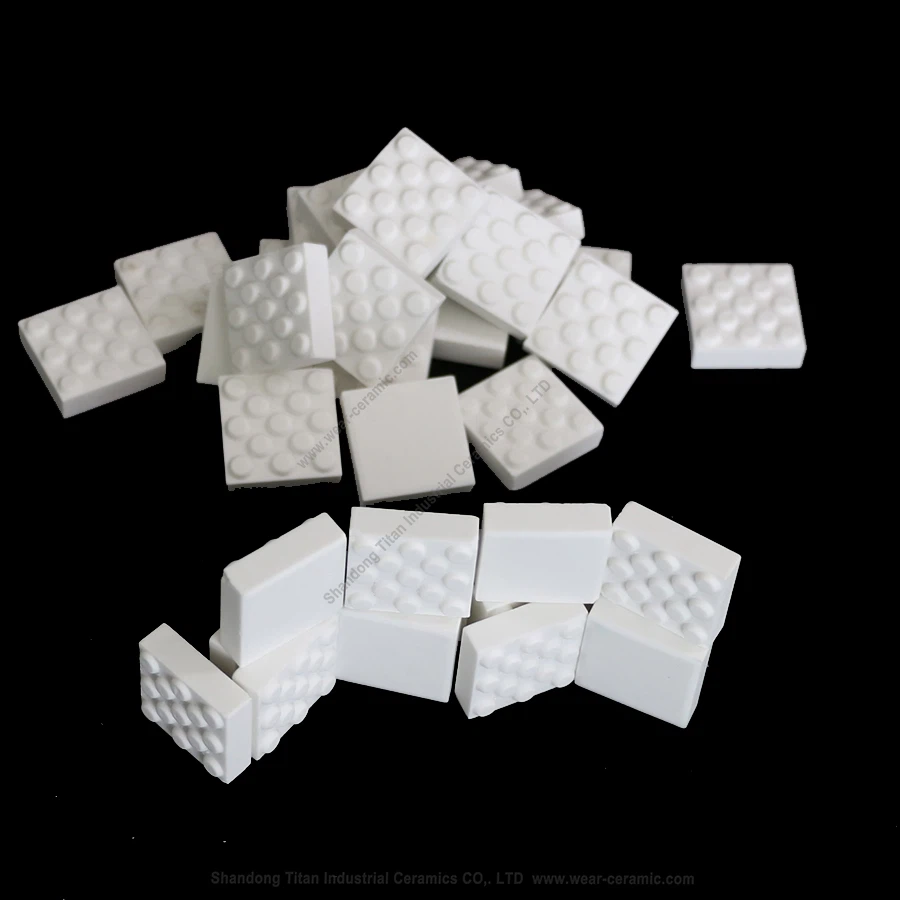

Raised Button Alumina Ceramic Tiles are specialized wear-resistant lining components made from alumina ceramic. Each tile has a square body with multiple rounded ceramic protrusions on one side. Unlike conventional flat ceramic liners, the raised surface is designed to face the moving material and serve as the primary contact area during operation.

TITAN manufactures these ceramic wear tiles using 92% and 95% alumina materials. The ceramic body is formed and sintered at high temperature to develop a dense structure with high hardness and mechanical strength. The flat reverse side provides a mounting surface, while the raised face forms the exposed wear surface.

This structure is suitable for equipment where abrasive materials repeatedly pass over or contact the lining. Individual tiles can be arranged and installed on a prepared equipment surface using a suitable ceramic bonding system. Their separate-piece format also allows damaged sections to be inspected and replaced without necessarily removing the entire lining.

IMG_8580
Feature




Lightweight

Alumina linings are lightweight and ideal for close bonding of critical equipment.




Good high temperature resistance

For equipment that needs to work at high temperatures for a long time, alumina linings are essential. It does not deform or dissolve at high temperatures, making it ideal for such applications.




More environmentally friendly

Alumina lining is an inorganic material formed by melting and solidification, so it is more environmentally friendly than other materials.




Good corrosion resistance

Alumina linings excel in any corrosive environment, making them an ideal tool in areas such as ceramic ware, food manufacturing and environmental monitoring.





Technical Data







Series

BM92

BMG95

BME95

BMZTA

BMZR

AL2O3 (%)

92±0.5

95±0.5

95±0.5

≥75

-

ZrO2 (%)

-

-

-

≥21

94.8±0.5

Bulk density(g/cm3)

≥3.6

≥3.65

≥3.7

≥4.1

≥5.9

Compressive strength (MPa)

≥1050

≥1300

≥1600

≥2000

-

Bending strength (MPa)

≥220

≥250

≥300

≥400

≥800

Fracture toughness (MPam1/2)

≥3.70

≥3.80

≥4.0

≥4.5

≥7

Rockwell hardness (HRA)

≥82

≥85

≥88

≥90

≥88

Loss bulk (cm3)

≤0.25

≤0.2

≤0.15

≤0.05

≤0.02



Application

1Wear Resistant Ceramic Mosaics Mat White Ceramic Mosaic Tile used for magnetic separator drum.

2 Vulcanized rubber lining, better wear resistance.

3 Mosaic tile paste into a whole sheet as a pipe lining mat.



What else we have?

202212141348406b19990ba8cf48caac00b38c8ca8a8d6

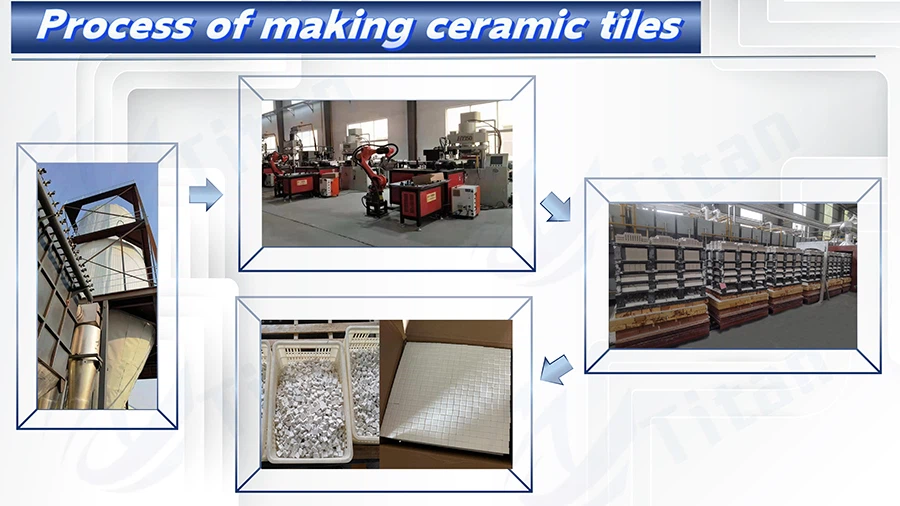

The production process

tiles

FAQ

FAQ





01.Are you trade company or manufacture?

We are manufacture with professional experience,and the price is the factory price.

02.How to control the quality?

We have strict quality by QC team.

03.How long is the delivery time?

It is about 5-7 days after payment for stock goods,10-15 days for new producing goods.

04.How to get the sample ?

Please contact us for send your samples.

05.What is the payment terms?

Flexible and diverse payment ways can be chosen, make you more convenient . Generally,50% in advance,50% before shipment

06.Can you do OES service?

Yes,size & shape could be made as customer requirment.

Looking for raised-surface ceramic liners for abrasive material handling?

Contact TITAN with your required tile dimensions, protrusion design, alumina grade, quantity, and application details. You can also send us a drawing or product sample for evaluation.

Our team will help you review the specifications and provide a suitable ceramic wear protection solution and quotation.
