High Alumina Ceramic

Product name:High Alumina Ceramic
Product series:BMYM
Product material:Alumina ceramic
Product color:White
Alumina content:92% 95%
Dimension(mm):0.5-90
Send Inquiry
Product Introduction

Product introduction

TITAN High Alumina Ceramic provides dependable performance in demanding industrial environments. With excellent hardness, abrasion resistance, and chemical stability, it is suitable for manufacturing wear-resistant components, protective linings, and precision ceramic parts across various industries.



High alumina ceramic is a kind of ceramic ball made by processing high-purity alumina, which can give full play to the characteristics of anti-wear and impact resistance of alumina ceramic ball, protect the equipment, and effectively improve the production and grinding efficiency.

When modern equipment is grinding materials, it usually causes great damage to the equipment itself, resulting in serious aging and wear of the equipment, which often affects the service life of the equipment and increases the cost of the enterprise.High alumina ceramic grinding media can effectively avoid this problem, greatly extending the service life of the equipment.

Product Overview

High alumina ceramic is an advanced technical ceramic made primarily from aluminum oxide (Al₂O₃). By controlling the alumina content, powder composition, forming process, and sintering conditions, manufacturers can produce ceramic components with different mechanical and physical properties. These materials are widely used where ordinary metals, plastics, or conventional ceramics cannot provide sufficient resistance to wear and harsh operating conditions.

TITAN supplies industrial alumina ceramic materials in different grades, including 92%, 95%, and higher-purity options. They can be manufactured into plates, tubes, tiles, liners, cylinders, and other customized components according to application requirements.

alumina ball 34



Application

alumina ball

High alumina ceramic have many advantages in a wide range of applications. In industries such as metal powder, electronics, ceramics, glass, chemicals, coatings, nanomaterials, biotechnology and food industry, they can improve production efficiency, reduce production costs, improve product quality, reduce energy consumption and alleviate environmental pollution.

Titan is able to make the products in different specifications as customer's requirement.

How to Select the Right Alumina Ceramic Product

Choosing a suitable material requires more than comparing alumina percentages. Before placing an order, buyers should evaluate several factors:

Operating environment

Identify whether the component will be exposed to abrasion, impact, corrosion, high temperature, or electrical stress.

01

Required material grade

Compare alumina content, density, hardness, and other relevant mechanical properties.

02

Component dimensions

Confirm length, width, thickness, diameter, tolerances, and installation space.

03

Installation method

Determine whether the part requires bonding, bolting, welding through a supporting structure, or another fixing method.

04

Expected operating conditions

Provide information about material characteristics, temperature, flow speed, and maintenance requirements.

A correct material and structural design can help avoid premature damage and unnecessary replacement costs.

05

Chemical Composition and Physical Properties

Series

BMYM92

BMYM95

AL2O3 (%)

92±0.5

95±0.5

Hardness(Mohs)

9

9

Bulk density(g/cm3)

≥3.6

≥3.7

Self wearing rate(‰)

≤0.15

≤0.1

Dimension(mm)

φ0.5-90

φ0.5-90

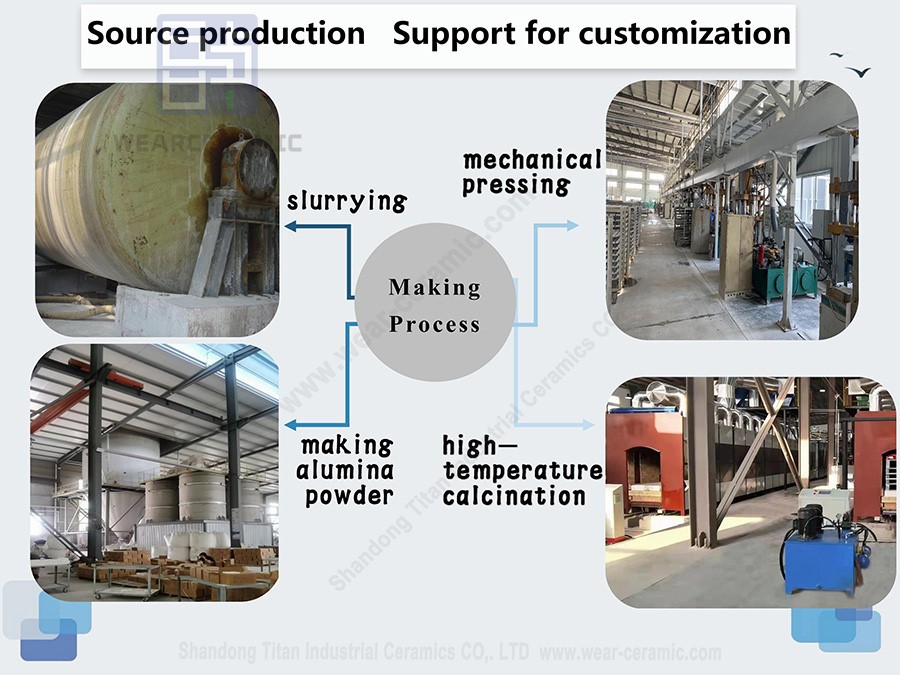

Product process

04logo

FAQ





01.What is high alumina ceramic made of?

It is primarily made from aluminum oxide (Al₂O₃), combined with carefully selected raw materials and processed through forming and high-temperature sintering. The alumina content varies according to the required material grade.

02.What is the difference between 92% and 95% alumina ceramic?

The main difference is the aluminum oxide content and the resulting material properties. A 95% grade generally offers a higher alumina proportion, while the actual differences in density, hardness, and wear performance should be evaluated using the product datasheets.

03.Is alumina ceramic suitable for abrasive environments?

Yes. Its high hardness and wear resistance make it suitable for many applications involving continuous contact with abrasive particles. The product structure and grade should be selected according to the actual wear conditions.

04.Can TITAN manufacture customized ceramic components?

Yes. TITAN can discuss customized shapes and dimensions based on customer drawings, samples, and technical requirements. Feasibility, tooling requirements, and production lead time depend on the design.

05.Is alumina ceramic resistant to chemicals?

It offers resistance to many chemical substances, but it is not universally resistant to every chemical environment. Chemical type, concentration, temperature, and exposure time should be considered before selection.

06.What information is needed for a quotation?

Please provide the product type, alumina content, dimensions, required quantity, application, and any available technical drawings or specifications. These details help TITAN recommend an appropriate material and prepare an accurate quotation.



Looking for high-performance alumina ceramic materials for your industrial equipment or production line?

Contact TITAN with your required product shape, dimensions, alumina content, application, and estimated quantity. If you have technical drawings or existing product samples, you can also share them with our team for evaluation.

TITAN is ready to discuss your requirements and provide a suitable ceramic solution for your project.
