Alumina Ceramic Beads For Grinding Media
video

Alumina Ceramic Beads For Grinding Media

Product Name:Alumina Ceramic Beads For Grinding Media
Product Color:white
Alumina content:92% 95%
Mohs hardness:9
Bulk density(g/cm3):≥3.6 3.7
Self wearing rate :≤0.15 0.1
size:dia0.5-20 mm
Certificate:ISO9001
Product Packaging: 25kg/bag / as requirement
High alumina content, high density, high hardness and high wear resistance
Send Inquiry
Product Introduction

Product Introduction

TITAN Alumina Ceramic Grinding Beads support fine grinding and dispersion across industrial powder-processing applications. Their high hardness, low wear, and carefully selected size options help maintain consistent milling conditions, limit unwanted contamination, and improve process control in wet or dry grinding systems.Alumina ceramic beads, due to their high alumina content, high density, high hardness and high wear resistance, are widely used in fine grinding and dispersion of different types of ceramics, enamels, glass, thick and hard materials in chemical plants. Alumina grinding ceramic beads are suitable for various ball mills, such as planetary ball mills, drum ball mills, stirring ball mills, vibration ball mills and other ball mills.



Product Features

1-High wear resistance: the wear resistance of alumina grinding ceramic beads is better than that of ordinary ceramic balls.

2-High purity: when the grinding ceramic bead is running, it will not produce pollution, so it can maintain high purity and improve the stability of grinding effect.

3-High density: high density, high hardness and high grinding can effectively improve the grinding effect.

 4-High strength, high temperature resistance, high pressure resistance, strong acid and alkali corrosion resistance, good thermal shock stability, and stable chemical properties.



Product Application

TITAN's alumina beads can be considered for applications requiring fine grinding, particle-size control, or dispersion, including:

Ceramics and enamels: Processing raw materials and glaze components.

Paints, inks, and coatings: Dispersing pigments and other solid ingredients.

Glass and mineral powders: Reducing particle size for downstream processing.

Chemical materials: Grinding selected powders where ceramic media are suitable.

Titanium dioxide processing: Supporting grinding and dispersion operations.

Other specialty powders: Applications requiring controlled media wear and stable milling conditions.

Alumina is chemically stable in many industrial environments, but compatibility should be checked for specific chemicals, temperatures, and process conditions. If product purity is critical, buyers should also evaluate the possible contribution of the beads, mill lining, and other contacting components to contamination.



Why Choose TITAN?

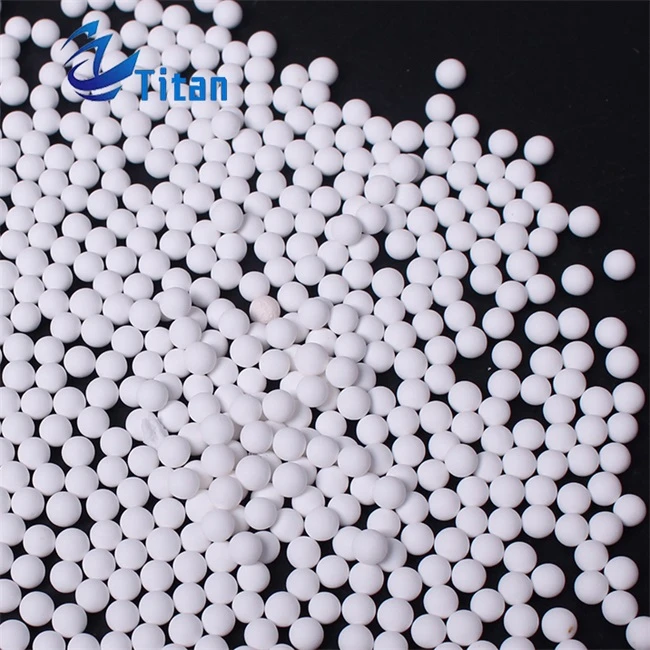

IMG_0084(1)

TITAN provides alumina grinding media in multiple grades and diameters, helping buyers match the material to their equipment and production targets. Published specifications for the 92% and 95% series give buyers a starting point for comparing hardness, density, and wear performance.

For more effective selection, TITAN recommends considering the feed material, target particle size, grinding method, mill type, and required quantity together. This approach helps buyers avoid choosing media solely by price or a single technical parameter.

For projects with strict particle-size or purity requirements, testing a suitable bead size under representative operating conditions can help verify performance before full-scale procurement.

Chemical Composition and Physical Properties

Series

BMpro50

BMpro60

BMpro70

BMpro92

BMpro92s

BMpro95

BMpro92M

BMpro92M

AL2O3 (%)

50±0.5

60±0.5

70±0.5

92±0.5

90±0.5

95±0.5

90±0.5

95±0.5

Hardness(Mohs)

7

7

8

9

9

9

9

9

Bulk density(g/cm3)

≥2.8

≥2.8

≥3.2

≥3.6

≥3.7

≥3.7

≥3.7

≥3.7

Self wearing rate(g/kg.h)

≤2.5

≤2.3

≤2

≤1.6

≤1.3

≤1.3

≤0.8

≤0.6

Dimension(mm)

φ1-10

φ1-10

φ0.5-10

φ0.5-20

φ0.5-20

φ0.5-20

φ0.5-20

φ0.5-20

FAQ





IMG_0079

01.What are alumina ceramic grinding beads used for?

They are used as grinding media for fine particle reduction and dispersion in ceramics, coatings, inks, glass, minerals, and selected chemical applications.

02.What alumina grades are available?

TITAN offers 92% and 95% alumina options for this product series.

03.What sizes can I order?

The listed diameter range is approximately 0.5–20 mm. Confirm the exact size and availability when requesting a quotation.

04.Are these beads suitable for wet grinding?

Yes, they can be considered for wet grinding. The appropriate diameter and grade depend on slurry viscosity, feed size, mill type, and target fineness.

05.How can I reduce media wear and contamination?

Choose a suitable grade and diameter, maintain appropriate operating conditions, and assess the compatibility of all materials contacting the product.

06.What information is needed for a quotation?

Please provide the required alumina grade, bead diameter, quantity, material to be processed, mill type, wet or dry grinding method, and target particle size.

Our grinding media

beads

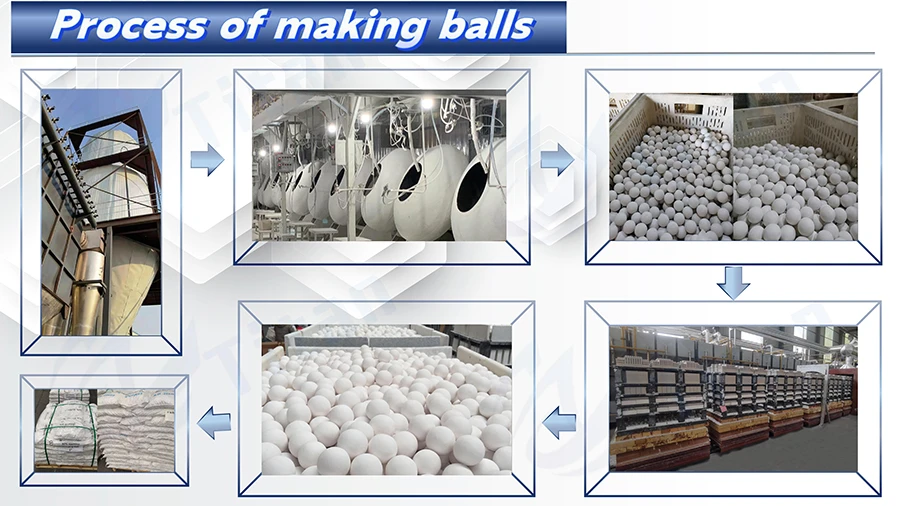

The production process

balls

Looking for ceramic grinding beads for fine milling or dispersion?

Contact TITAN with your material type, mill model, required bead diameter, target particle size, grinding method, and order quantity. Our team can help you compare available alumina grades and provide a quotation based on your application.
