Industrial Ceramic Pipes

wear resistance, impact resistance, corrosion resistance, high temperature resistance
Send Inquiry
Product Introduction

Product introduction

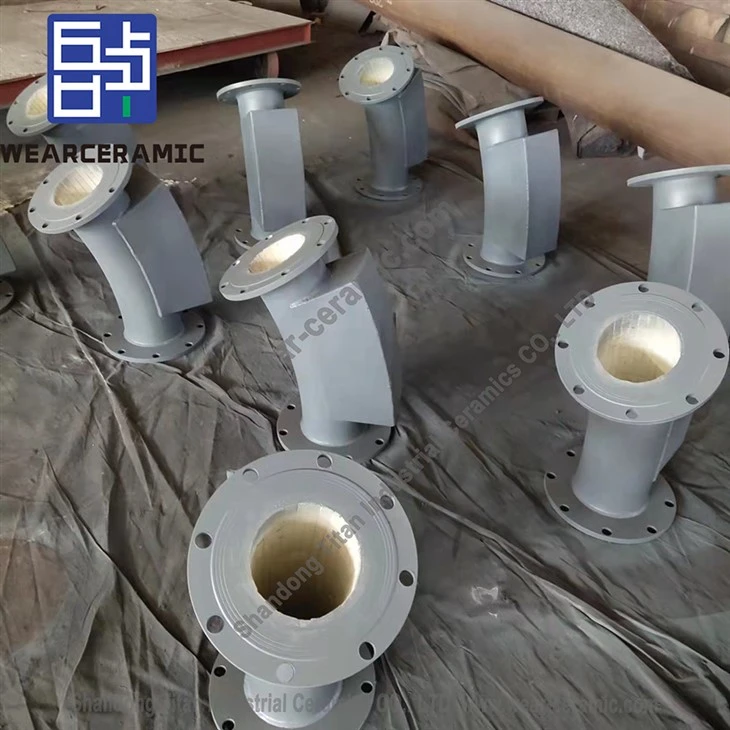

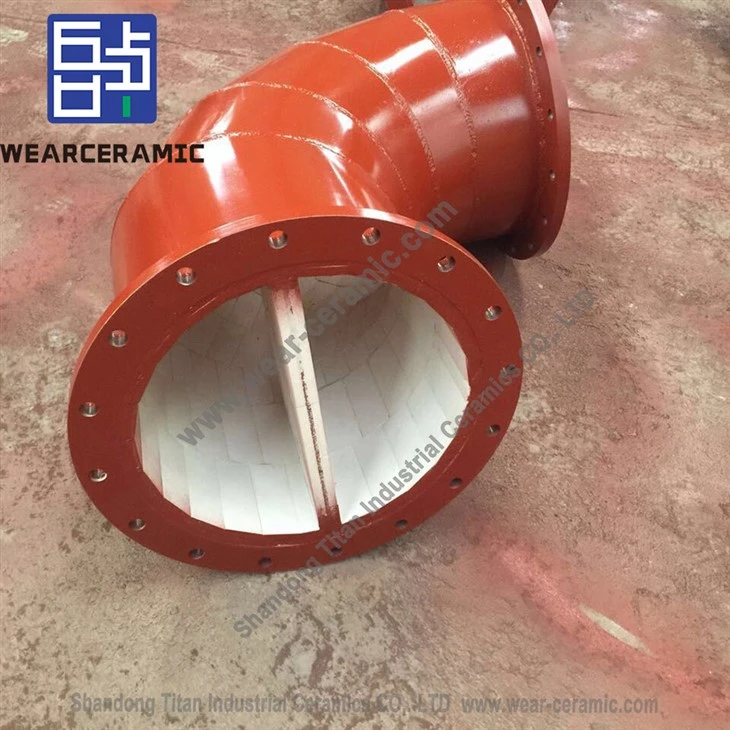

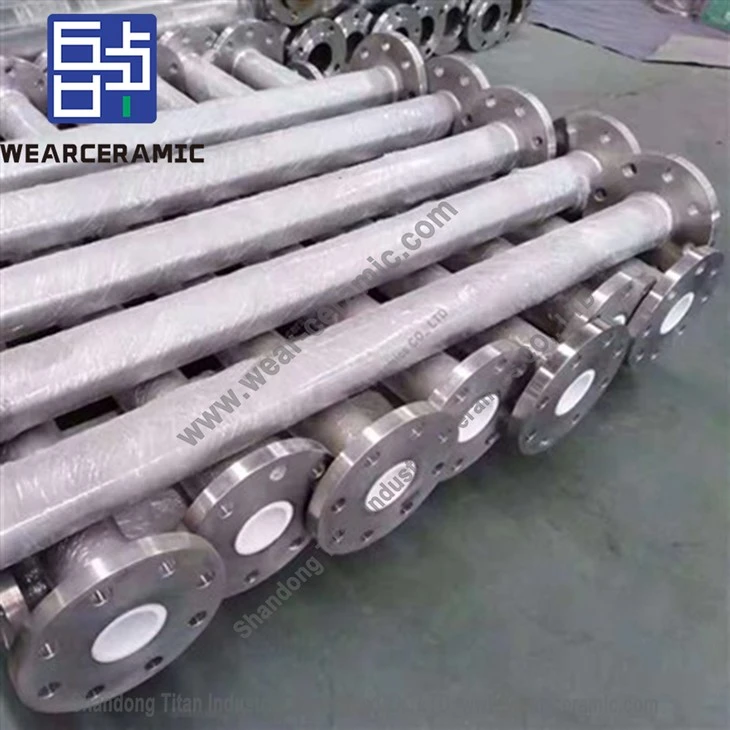

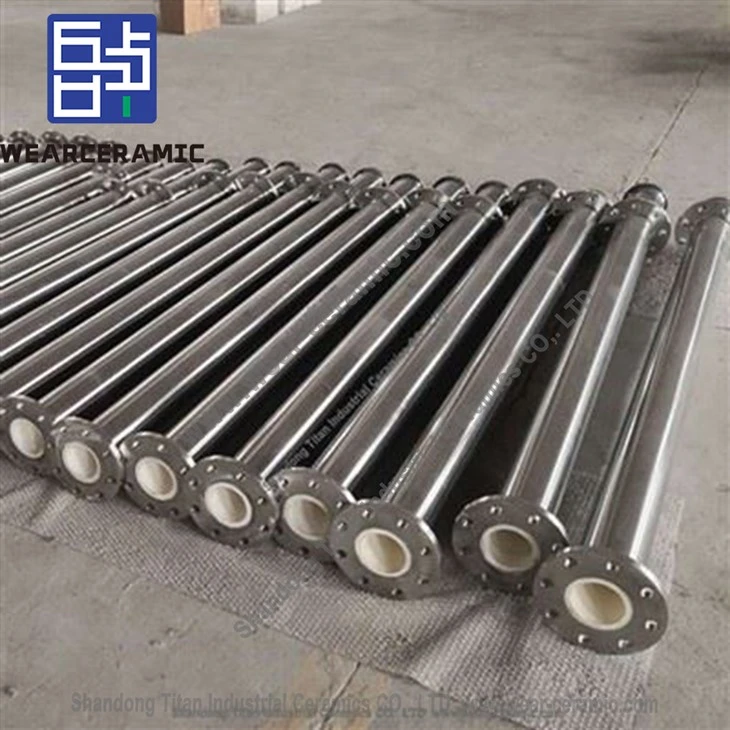

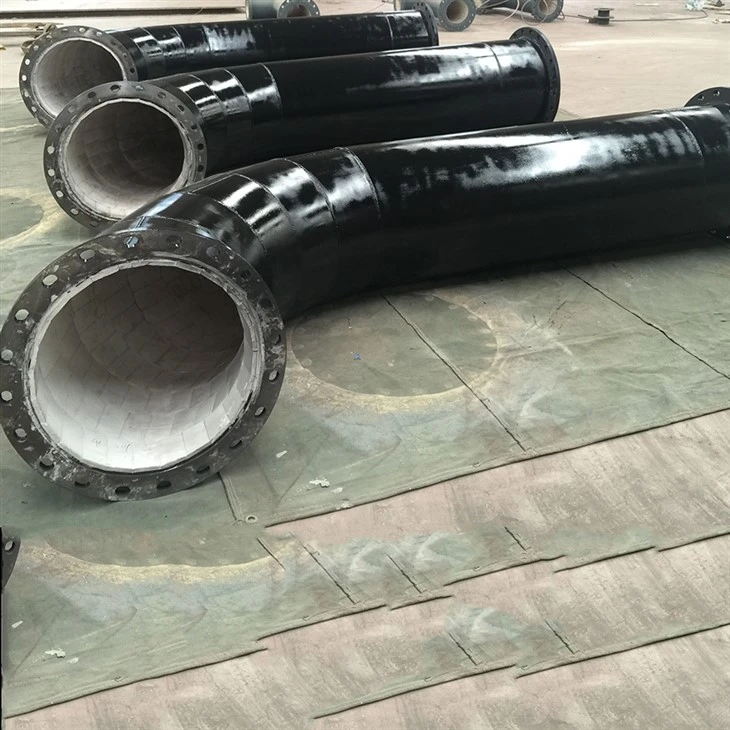

TITAN Industrial Ceramic Pipes are engineered for demanding industrial processes where ordinary piping materials may not provide sufficient wear, chemical, or thermal resistance. Manufactured from alumina ceramic, they offer a hard, stable material surface for conveying, equipment protection, and specialized industrial applications.Industrial ceramic pipes refer to a kind of pipeline used for material transportation in the industrial fields. The industrial ceramic pipe is composed of two parts. Its outside is steel pipe and inside is ceramic. For large diameter ceramic pipe, we paste ceramic plates to the inner wall. And for the small diameter ceramic pipe, the inner part is a whole alumina pipe. The thickness can be customized according to customers' requirements.



Product Overview

Industrial Ceramic Pipes are tubular components manufactured from technical ceramic materials, primarily alumina (Al₂O₃). Unlike conventional metal or plastic pipes, they use the inherent hardness, chemical stability, and electrical insulation properties of ceramics to serve applications with demanding operating conditions.

TITAN produces alumina ceramic pipes and tubes with 92% and 95% Al₂O₃ content. Depending on the required dimensions and application, suitable forming processes can include extrusion, pressing, or casting, followed by high-temperature sintering. This process creates a dense ceramic structure with consistent mechanical properties.

These components can be supplied as standalone ceramic tubes or incorporated into industrial equipment and pipeline assemblies. The appropriate design depends on the required diameter, wall thickness, length, dimensional tolerance, and installation method.



Advantages

light weight

smooth surface

easy installation

super wear resistance

high temperature resistance

Chemical Composition and Physical Properties

Series BM92 BMG95
AL2O3(%) 92±0.5 95±0.5
Bending strength(Mpa) ≥220 ≥250
Compressive strength(Mpa) ≥1050 ≥1300
Fracture toughness     (MPam1/2) ≥3.70 ≥3.80
Rockwell hardness(HRA) ≥82 ≥85
Wear volume(cm3) ≤0.25 ≤0.2
Bulk density(g/cm3) ≥3.6 ≥3.65



NOTE: Industrial ceramic pipes are customized products, ceramic thickness, diameter and bending radius are customized according to customers' requirements.

FAQ





202004231611419bea176ad5c14a8c8ecf929b36524700

01.What materials are used to manufacture Industrial Ceramic Pipes?

TITAN primarily offers alumina ceramic pipes and tubes with 92% and 95% Al₂O₃ content. Other material options can be discussed according to the application.

02.What is the difference between 92% and 95% alumina ceramic pipes?

The grades differ in alumina content and physical properties. The 95% reference grade generally offers higher density and strength. The best choice depends on the operating environment and required performance.

03.Can Industrial Ceramic Pipes be customized?

Yes. TITAN can discuss customized inside diameters, outside diameters, wall thicknesses, lengths, and other dimensions according to customer drawings and production feasibility.

04.Are alumina ceramic pipes suitable for high-temperature applications?

Alumina ceramics have good thermal stability and are used in selected high-temperature equipment. The allowable working temperature must be evaluated according to the ceramic grade, component design, thermal cycling, and installation conditions.

05.Can ceramic pipes resist acids and alkalis?

Alumina ceramic resists many chemicals, but it is not universally resistant to every chemical environment. Please provide the chemical name, concentration, and operating temperature for a compatibility assessment.

06.What information should I provide when requesting a quotation?

Please share the required dimensions, quantity, alumina content, application, operating temperature, mechanical conditions, and chemical environment if applicable. A technical drawing or sample will help us evaluate your requirements more accurately.

Need industrial ceramic pipes for abrasive, chemical, thermal, or electrical applications?

Contact TITAN with your drawings, required dimensions, material specifications, and working conditions. Our team will help you identify a suitable alumina ceramic grade and provide a customized solution and quotation.
