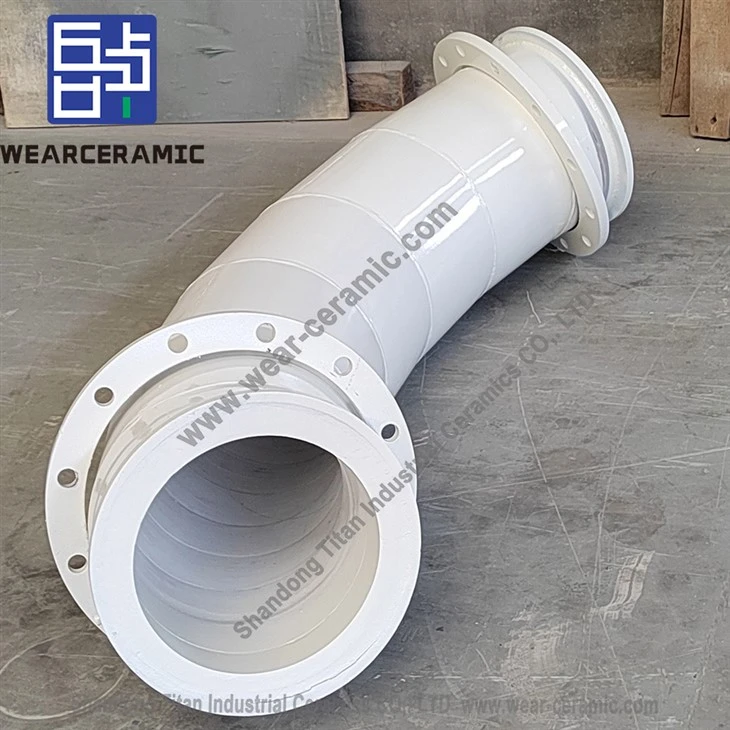

Ceramic-lined Steel Pipe
Product introduction:
Ceramics pipe is a kind of wear resistant material pasted on the inner wall of steel pipe to protect it from abrasion. Ceramics pipe belongs to customized products. Its length and diameter should be adjusted according to the steel pipe. Titan can produce ceramics pipes with different length and thickness, which can meet the needs of various customers.
Advantages:
easy to install
strong wearability
corrosion resistance
low friction resistance
Application:
Ceramics pipes are suitable for all kinds of transportation pipelines.
Chemical Composition and Physical Preperties:
| Series | BM92 | BMG95 |
| AL2O3(%) | 92±0.5 | 95±0.5 |
| Bending strength(Mpa) | ≥220 | ≥250 |
| Compressive strength(Mpa) | ≥1050 | ≥1300 |
Fracture toughness (MPam1/2) | ≥3.70 | ≥3.80 |
| Rockwell hardness (HRA) | ≥82 | ≥85 |
Wear volume(cm3) | ≤0.25 | ≤0.2 |
| Bulk density(g/cm3) | ≥3.6 | ≥3.65 |
Specification Available:
| Outside diameter | Internal diameter | Thickness |
| φ25 | φ10 | 7.5 |
| φ30 | φ15 | 7.5 |
| φ40 | φ20 | 10 |
| φ50 | φ37 | 6.5 |
| φ65 | φ52 | 6.5 |
| φ80 | φ67 | 6.5 |
| φ100 | φ84 | 8 |
| φ125 | φ109 | 8 |
| φ150 | φ134 | 8 |
| φ200 | φ184 | 8 |
| φ250 | φ230 | 10 |
NOTE: Above shows the common size. Other size can be customized according to customers' requirements.
