Hexagonal Alumina Tiles
Al2O3 ： 92% 95%
Bulk density(g/cm3) ： ≥3.6 3.65 3.7 4.1 5.9
Advantage:First of all, it has high hardness, and its Rockwell hardness can reach HRA80-90; its wear resistance is excellent, and its wear resistance can be higher than that of manganese steel and high-chromium cast iron, which can prolong the service life of equipment by more than ten times; moreover, it is wear-resistant The alumina ceramic lining is very light in weight, and its density is 3.65g/cm, which can greatly reduce the load on the equipment; the wear-resistant alumina ceramic lining is firmly bonded to the equipment and has good heat resistance, and can be used at 350°C It can run for a long time without aging.
Details

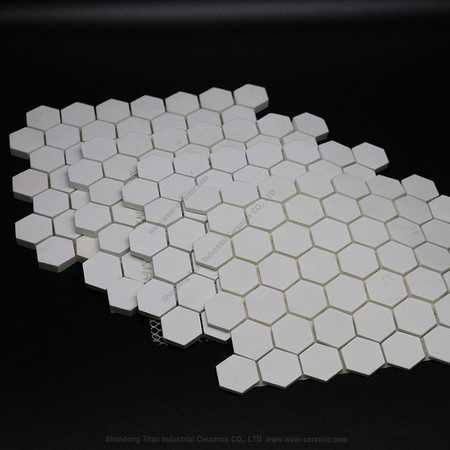

Hexagonal Alumina Tiles is a ceramic lining tiles that made of alumina sintered at high temperature 1650 degree. It has a hexagonal shape and is used in equipment lining and protection applications that require harsh environments such as high temperature, corrosion, and abrasion. The hexagonal tiles is usually pasted into a big sheet by scotch tape, grid cloth or acetate cloth.
Feature
1. High hardness, wear resistance and erosion resistance: Rockwell hardness is HRA85-95, which is comparable to diamond, and its wear resistance is much higher than that of manganese steel and high-soldering cast iron. Hexagonal Alumina Tiles can extend the service life of equipment by 10 years under the same working conditions more than double;
2. Excellent high temperature resistance and heat resistance: it can operate at 750°C for a long time;
3. Acid and alkali corrosion resistance: Alumina and zirconia wear-resistant ceramics have stable chemical properties, acid and alkali corrosion resistance, oxidation resistance, and are suitable for various harsh working conditions;
4. Light weight: The density of alumina ceramic is 3.6-3.8g/cm3, which is only half of that of steel, which can greatly reduce the load on equipment;
5. The bonding is firm and not easy to fall off: the wear-resistant ceramic sheet can be fixed by high-temperature-resistant inorganic adhesive paste, arch joint and stud welding, etc., which can ensure that the ceramic sheet will not fall off under high temperature and high impact conditions for long-term operation .
Technical specification
| Series | BM92 | BMG95 | BME95 | BMZTA | BMZR |
| AL2O3 (%) | 92±0.5 | 95±0.5 | 95±0.5 | ≥75 | - |
| ZrO2 (%) | - | - | - | ≥21 | 94.8±0.5 |
| Bulk density(g/cm3) | ≥3.6 | ≥3.65 | ≥3.7 | ≥4.1 | ≥5.9 |
| Compressive strength (MPa) | ≥1050 | ≥1300 | ≥1600 | ≥2000 | - |
| Bending strength (MPa) | ≥220 | ≥250 | ≥300 | ≥400 | ≥800 |
| Fracture toughness (MPam1/2) | ≥3.70 | ≥3.80 | ≥4.0 | ≥4.5 | ≥7 |
| Rockwell hardness (HRA) | ≥82 | ≥85 | ≥88 | ≥90 | ≥88 |
| Loss bulk (cm3) | ≤0.25 | ≤0.2 | ≤0.15 | ≤0.05 | ≤0.02 |
Application
Hexagonal Alumina Tiles are widely used in industrial production, especially in coal conveying, material conveying systems, pulverizing systems, ash discharge, etc. For all mechanical equipment with heavy wear, such as ceramic liners, wear-resistant ceramic tubes, ceramic rollers, etc., dust removal systems, etc., different types of products can be selected according to different working conditions.
The production process of hex tiles
Our factory
FAQ
Q: Are you a trading company or manufacturer?
A: We are a manufacturer.
Q: Is the sample free?
A: Yes, we offer free samples within 100g.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. It is 7-15 days if the goods are not in stock.
Q :What is your Delivery Terms?
A :FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery.
Q:What can you buy from us?
A:Alumina grinding media , zirocnia grinding media ,SS pipe with ceramic liner inside, ceraic composite plate, cyclones , Rubber coated roller ,ceramic adhensive etc.
Q： What services can we provide?
A:Accept customized according to your requirements.
No strict require on the MOQ, accept small order.
