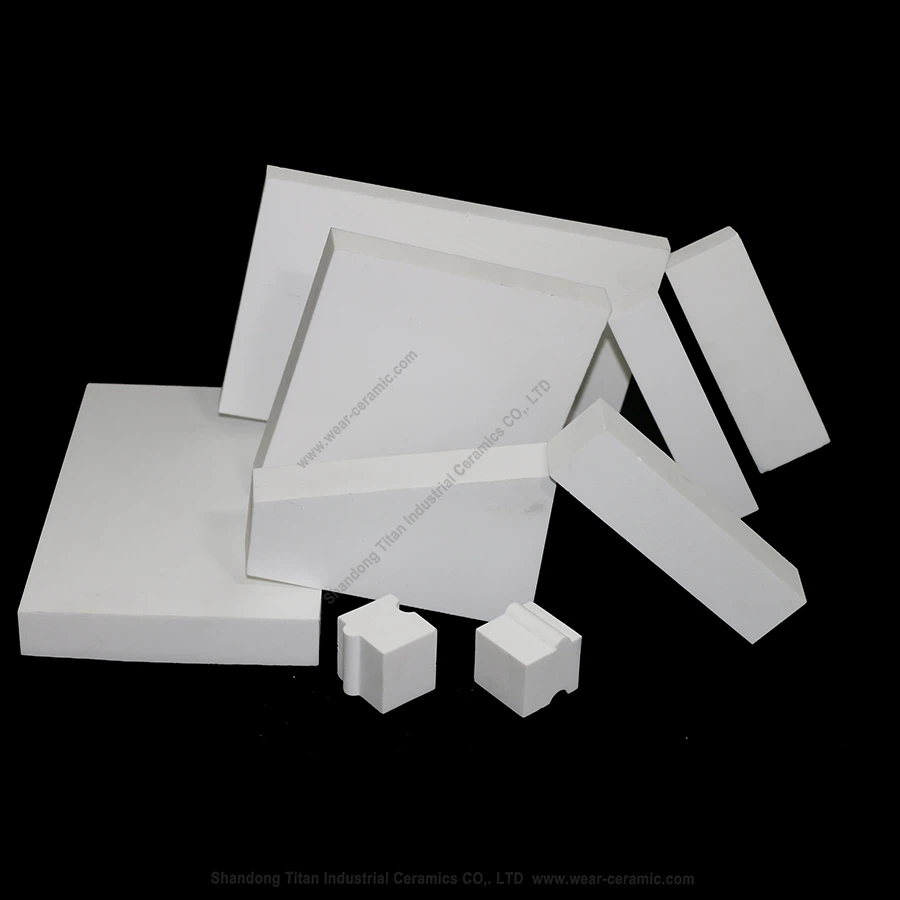

92% Al2O3 High Wear Resistant Alumina Ceramic Jig Liner
Our product quality can withstand the test of time, we guarantee that each Hydrocyclone Arc Ceramic Liner, Wear Resistant Rubber Ceramic Liner, mapei ceramic tile adhesive is carefully developed and strictly tested. In order to produce high-quality products, our company carries out strict management and inspection on each process. Adhering to the tenet of 'Customer First, Quality First', we provide Chinese and foreign customers with comprehensive and diversified quality services.
Product Introduction
Wear-resistant alumina ceramic liner is made of aluminum oxide powder through dry pressing and high-temperature calcination . It is featured by extremely high hardness, corrosion resistance and good chemical stability. Alumina ceramic liner can withstand the impact of high concentration and large particles . Its hardness is only inferior to diamond.
Alumina ceramic liner is commonly used in the inner wall of pipeline and inside of equipment. Ceramic liner can reduce the abrasion caused by the grinding of raw materials and the impact of materials on the pipeline. It can effectively prolong the service life of the pipeline and reduce the cost to a great extent.
Advantages
(1) High hardness. Ceramic tiles rockwell hardness is HRA80-90, second only to diamond in hardness, far exceeding the wear resistance of wear-resistant steel and stainless steel.
(2) Good wear resistance and long service life. Alumina ceramic tile wear resistance is equivalent to 266 times that of manganese steel and 171.5 times that of high-chromium cast iron. Under the same working conditions, the service life of the equipment can be extended by at least ten times.
(3) Light weight. Its density is lower, which is only half of that of steel, which can greatly reduce the equipment load.
Specification Available
| Size | Length | Width | Height |
| Flat liner | 50~150 | 25~100 | 6~50 |
| Weldable liner(with hole) | 50~150 | 30~100 | 10~50 |
| Trapezoidal liner | 50~150 | 20~100 | 8~50 |
Chemical Composition and Physical Properties
| Series | BM92 | BMG95 | BME95 | BMZTA | BMZR |
| AL2O3(%) | 92±0.5 | 95±0.5 | 95±0.5 | ≥75 | - |
| ZrO2(%) | - | - | - | ≥21 | 94.8±0.5 |
Bending strength (Mpa) | ≥220 | ≥250 | ≥300 | ≥400 | ≥800 |
Compressive strength (Mpa) | ≥1050 | ≥1300 | ≥1600 | ≥2000 | - |
Fracture toughness (MPam1/2) | ≥3.70 | ≥3.80 | ≥4.0 | ≥4.5 | ≥7 |
Rockwell hardness (HRA) | ≥82 | ≥85 | ≥88 | ≥90 | ≥88 |
| Wear volume(cm3) | ≤0.25 | ≤0.2 | ≤0.15 | ≤0.05 | ≤0.02 |
| Bulk density(g/cm3) | ≥3.6 | ≥3.65 | ≥3.7 | ≥4.1 | ≥5.9 |
Application
Wear-resistant alumina ceramic lining equipment: Coal conveying system: can be used for airlock, raw coal bunker, coal drop bucket, coal falling pipe, drum lagging; powder system: medium speed coal mill cylinder, separator outlet pipe, Filling elbow, separator inner cone, guide vane, etc.

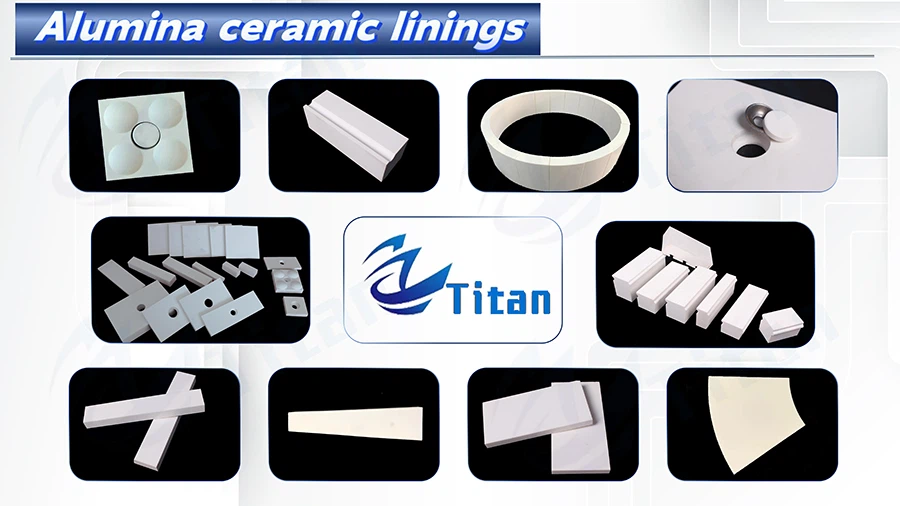

Our ceramic tile

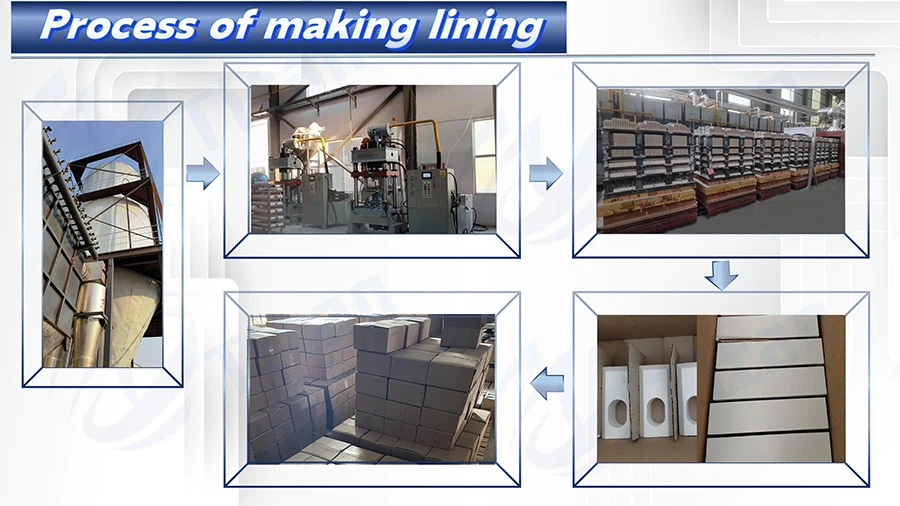

The production process
FAQ
Q : Can I place sample order?
A: Highly Welcome your sample order to test our quality first!
Q: Can | print my logo?
A: Yes, OEM/ODM service is available. Customized logo/package/name/color. For details, Please kindly contact the sales persons.
Q: How to order the products?
A: Step1. Tell us what model and quantity you need, Get Latest Quote
Step2. Make Proforma Invoice
Step3. Confirmed PI to us, and arrange the payment.
Step4. Once we get payment, we will make production samples to confirmed Step5. After confirmed, start to produce.
Q: How do we make the payment?
A: We accept TT.
Q: What's the delivery time?
A: The delivery time for sample order is normally 5-7 working days after prepaid payment received. For customized order, it's about 15~20 working days after deposit received.
Q: How would the goods be shipped?
A: For small quantity order , we ship via DHL, UPS, TNT, FedEx express. For bulk order, by air and by sea normally.
Our advanced product technology, mature product quality, and rich product supporting accessories will surely meet your highest demand for 92% Al2O3 High Wear Resistant Alumina Ceramic Jig Liner. With a fast development and our customers come from all over the world. We take technology as the core, quality as the guarantee, after-sales as the fundamental, innovation and integration to lead the industry development.
