Mechanical Lining Parts Alumina Ceramic Square Plate
We provide our customers with consistently high quality Isostatic Ceramic Wear Tube, Wear-resistant Ceramic Lining, alumina ceramic trapezoidal tiles through a high degree of automation, efficiency and attention to detail. We insist on broadening our horizons, broadening our research fields, so that we can obtain new ideas and achievements. While the business is developing rapidly, we have always made unremitting efforts to actively implement our solemn commitment to be an excellent corporate citizen.
Product introduction:

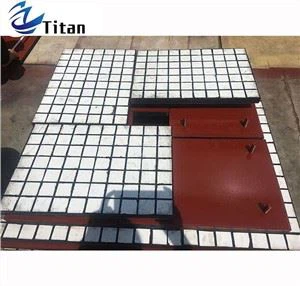

Square ceramic is the most popular products of our company. Square ceramic can be used widely in hoppers,chutes,ball mills,feeders in cement,coal,mine,chemical industry etc. Square ceramic from BOMAI includes ceramic plate and ceramic mosaic. Specific size can be customized according to customers' requirements.
Advantage:
corrosion reisistance
impact resistance
no pollution
strong wearability
Chemical Composition and Physical Properties:
| Series | BM92 | BMG95 |
| AL2O3(%) | 92±0.5 | 95±0.5 |
| Bending strength(Mpa) | ≥220 | ≥250 |
| Compressive strength(Mpa) | ≥1050 | ≥1300 |
Fracture toughness (MPam1/2) | ≥3.70 | ≥3.80 |
| Rockwell hardness(HRA) | ≥82 | ≥85 |
Wear volume(cm3) | ≤0.25 | ≤0.2 |
| Bulk density(g/cm3) | ≥3.6 | ≥3.65 |
Specification Available:
| Type | Length(mm) | Width(mm) | Height(mm) |
| Flat ceramic liner | 50~150 | 25~100 | 6~50 |
| Welding ceramic liner | 50~150 | 30~100 | 10~50 |
| Trapezoidal ceramic liner | 50~150 | 20~100 | 8~50 |
| Ceramic Mosaic | |
| Length*Width(mm) | Height(mm) |
| 10*10 | 3~10 |
| 17.5*17.5 | 3~10 |
| 20*20 | 4~10 |
| 25*25 | 4~10 |
Our company pays attention to the production cost, quality and marketability of our Mechanical Lining Parts Alumina Ceramic Square Plate. Your comments and solutions are remarkably appreciated. We expand our market, improve our facilities, strengthen internal management, form business characteristics, improve service quality so as to achieve the benign development of our company.
