Wear Resistant Alumina Ceramic Lined Pipe for Wear Protection
Our company's Wear Resistant Zirconia Ceramic Lining Brick, Ceramic Bend Pipe, Ceramic wear plates has won the trust and praise of customers with high precision, reliable quality, reasonable price, short production cycle other competitive advantages. Our products are high quality and low priced, and have received unanimous recognition and commendation from the industry. Our success comes from your support and trust. If you give us the order, you will have a satisfactory answer.
Product Introduction
Alumina ceramic is a very wear-resistant precision ceramic material, which is widely used in various industries. The main molding methods of alumina ceramic products are: dry pressing, isostatic pressing, injection molding and casting. Different product shapes, sizes, complex shapes and precision products require different molding methods. Alumina ceramic products sintered at high temperature can only be processed by diamond grinding process.

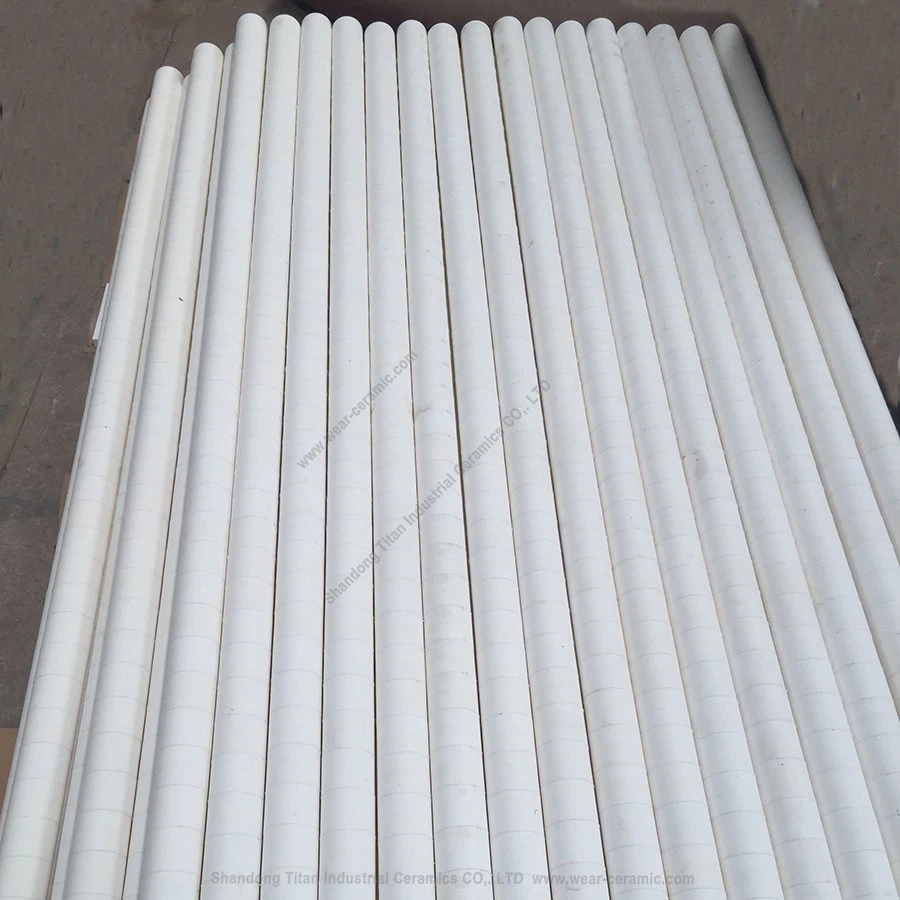

The Wear Resistant Protection Ceramic Pipes is formed by pressing process, with regular size, complete specifications, high purity, good compactness, good wear resistance, corrosion resistance, high temperature resistance, low wear, and no abrasive pollution.
Feature
1. Wear resistance: under the same conditions, it is 10 times more wear-resistant than ordinary pipes;
2. Corrosion resistance: lining ceramics and inorganic adhesives can resist acid and alkali corrosion;
3. Medium temperature resistance: it can operate at 350°C for a long time, and the general working conditions can be satisfied;
4. The inner and outer walls are smooth and the air flow is smooth: the smooth surface allows materials to pass through freely without hanging or blocking;
5. Easy to install: 1/3 lighter than ordinary pipes, easy to carry, save manpower, easier and faster to install, and can easily erect pipes higher;
6. Reduce the load of support and hanger equipment and save material costs.
Chemical Composition and Physical Properties
| Series | BM92 | BMG95 |
| AL2O3(%) | 92±0.5 | 95±0.5 |
Bending strength (Mpa) | ≥220 | ≥250 |
| Compressive strength(Mpa) | ≥1050 | ≥1300 |
| Fracture toughness (MPam1/2) | ≥3.70 | ≥3.80 |
| Rockwell hardness(HRA) | ≥82 | ≥85 |
| Wear volume (cm3) | ≤0.25 | ≤0.2 |
| Bulk density(g/cm3) | ≥3.6 | ≥3.65 |
Application
The Wear Resistant Protection Ceramic Pipes is widely used in coal conveying, pulverizing, ash discharging system of thermal power generation, material conveying and embryo system of metallurgical iron and steel, water machine and other industries, such as coal mill in&outlet pipe, primary air pipe, coal powder pipe, etc.

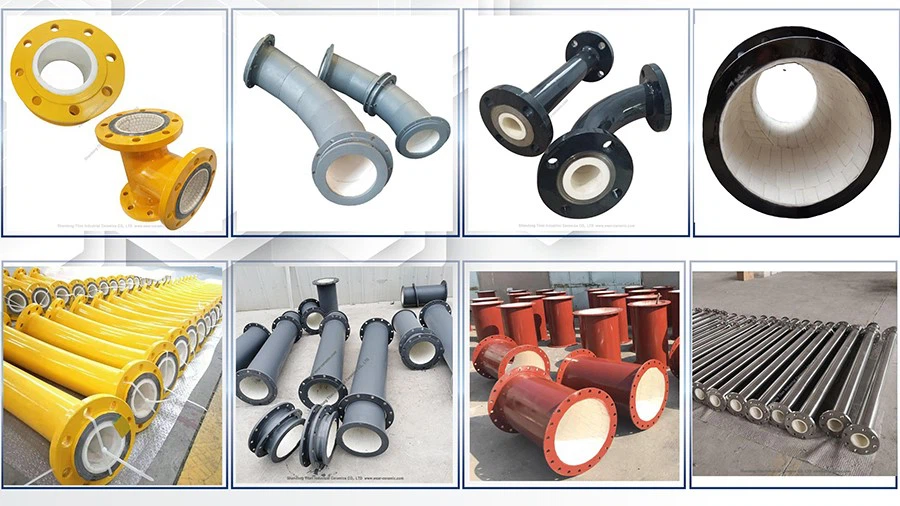

Our pipe elbow

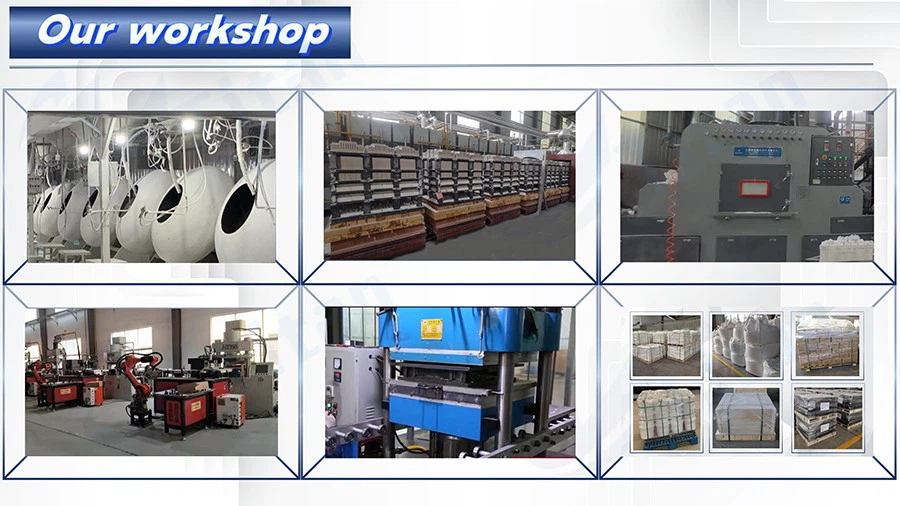

Our workshop
We will continue to improve corporate management capabilities, improve the technology content of Wear Resistant Alumina Ceramic Lined Pipe for Wear Protection, and promote industrial upgrading. If you need any of our products, or have other items to be produced, please send us your inquiries, samples or detailed drawings. To achieve reciprocal advantages, our company is widely boosting our tactics of globalization in terms of communication with overseas customers, fast delivery, the best quality and long-term cooperation.
