Inert Alumina Ceramic Balls As Catalyst
Product Code: BMTL80/92/95/99
Product Material: Alumina ceramic
Product Size: 3/6/8/10/13/19/25/50mm
Bulk density(g/cm3)： 2.5-2.8 >= 2.8 >=3.1 3.3-3.7
water absorption (%)： <=5
Shock resistance: Good
Product Color: White
Certifified: ISO 9001
Customized: Availiable
Details
Porcelain ball, also known as inert alumina ball, is mainly used to increase the distribution point of gas or liquid, support and protect the active catalyst with low strength. According to the content of AL2O3, it is divided into: ordinary ceramic balls, inert alumina ceramic balls, medium aluminum ceramic balls, high alumina ceramic balls, 99 high alumina ceramic balls, convex and concave groove open-hole ceramic balls, active ceramic balls, open-hole ceramic balls , Microporous ceramic balls, regenerative ceramic balls.
Advantages
Inert alumina ceramic ball has the characteristics of high temperature and high pressure resistance, low water absorption and stable chemical properties. It can withstand the corrosion of acid, alkali and other organic solvents, and can withstand the temperature changes in the production process.
Applications

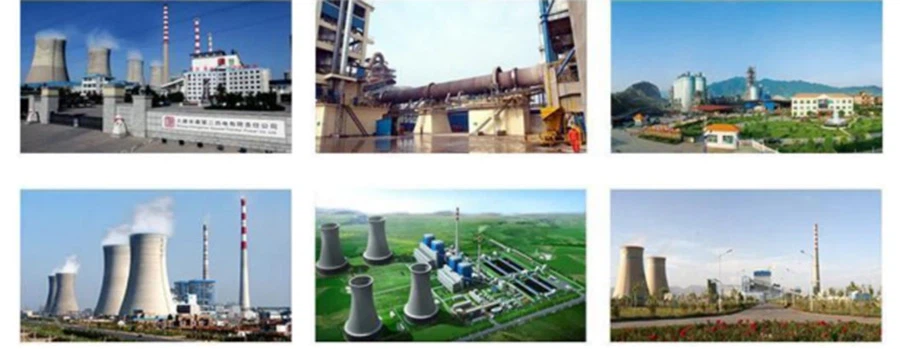

Inert Alumina Ceramic Balls as catalyst are widely used in petroleum, chemical, fertilizer, natural gas and environmental protection industries as the covering support material and tower packing for the catalyst in the reactor. Its main function is to increase the distribution point of gas or liquid, and support and protect the active catalysis with low strength.
Technical Data
Inert Alumina Ceramic Balls as catalyst | ||||
Series | BMTL80 | BMTL92 | BMTL95 | BMTL99 |
AL2O3 (%) | ≥80 | ≥92 | ≥95 | ≥99 |
Water absorption(%) | ≤5 | ≤5 | ≤5 | ≤5 |
Bulk density(g/cm3) | 2.5-2.8 | ≥2.8 | ≥3.1 | 3.3-3.7 |
Shock resistance (%) | Good | Good | Good | Good |
Dimension(mm) | 3mm 6mm 8mm 10mm 13mm 19mm 25mm 50mm | |||

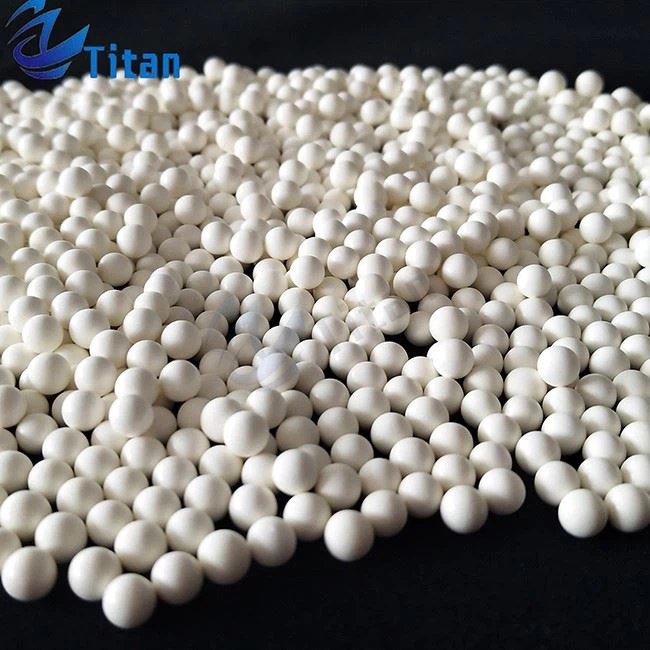

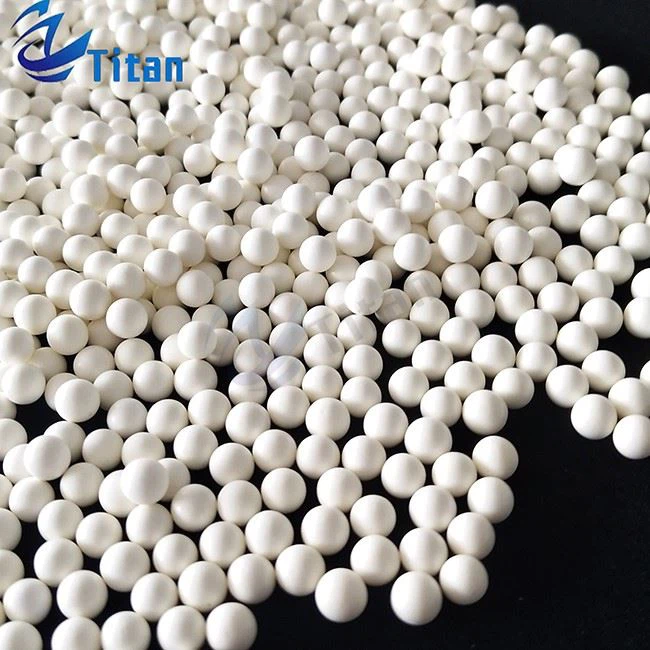

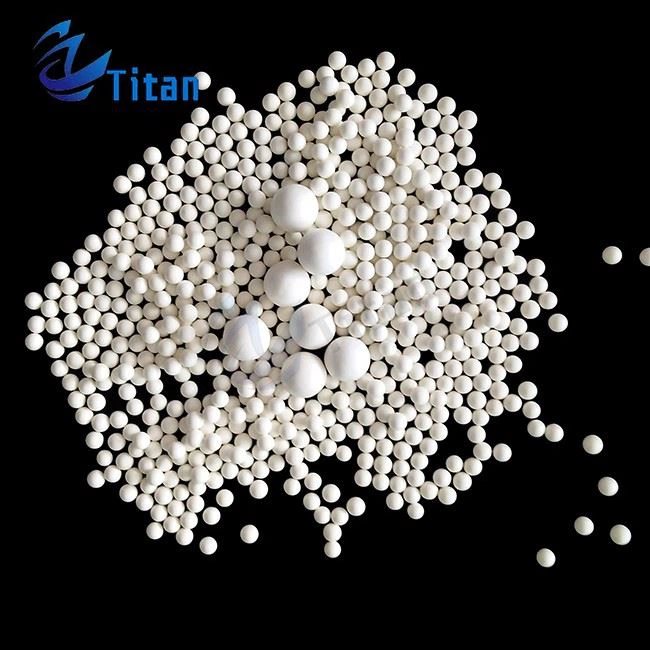

The picture
The production process
