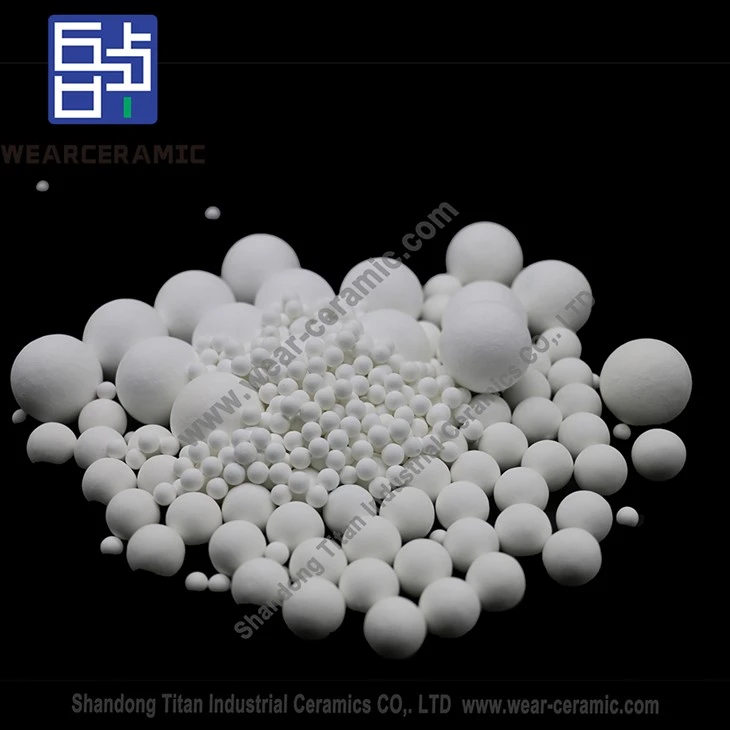

Alumina Support Balls
Al2O3 ： 80% 92% 95% 99%
Bulk density(g/cm3) ： 2.5-2.8 >= 2.8 >=3.1 3.3-3.7
water absorption (%) ： <=5
Shock resistance ： Good
Color ： white
Size：3mm 6mm 8mm 10mm 13mm 19mm 25mm 50mm
Feature:high temperature and high pressure resistance, low water absorption and stable chemical properties. It can withstand the corrosion of acid, alkali and other organic solvents, and can withstand the temperature changes in the production process.
Details
The Alumina Support Balls is made of high-purity a-al2o3 alumina, super-grade kaolin and plastic refractory clay as the main raw materials, adding feldspar, quartz and binder, etc., after careful batching, ball milling, sieving, iron removal , vacuum mud, molding, drying, high-temperature sintering, the product after sintering smooth surface, dense porcelain. No sandwich and delamination inside.
Advantage
Inert alumina ceramic ball has the characteristic of high purity, high strength, high temperature resistance, high pressure resistance, strong acid and alkali corrosion resistance, good thermal shock stability, stable chemical properties.
Application
Alumina Support Balls is used as base filling material for hydrocracking unit, refining unit, catalytic reforming unit, isomerization unit and demethylation unit in petrochemical plant, chemical fiber plant, alkylbenzene plant, aromatics plant, ethylene plant, natural gas plant, etc. As the supporting and covering materials and tower packing for catalyst, molecular sieve and desiccant in the reactor. The main function of inert ceramic balls is to increase gas or liquid distribution points, support and protect the active catalyst with low strength.
Chemical Composition and Physical Properties
| Series | BMTL80 | BMTL92 | BMTL95 | BMTL99 |
| AL2O3(%) | ≥80 | ≥92 | ≥95 | ≥99 |
| Bulk density (g/cm3) | 2.5-2.8 | ≥2.8 | ≥3.1 | 3.3-3.7 |
| Water absorption(%) | ≤5 | ≤5 | ≤5 | ≤5 |
| Color | white | white | white | white |
Specification Available
| Specification | Compressive strength (N) | ||||
| Inch | mm | BMTL80 | BMTL92 | BMTL95 | BMTL99 |
| 1/8" | 3 | 250 | 300 | 500 | 600 |
| 1/4" | 6 | 1200 | 1500 | 2000 | 2500 |
| 3/10" | 8 | 1400 | 1800 | 3000 | 3500 |
| 3/8" | 10 | 2500 | 3000 | 3300 | 4000 |
| 1/2" | 13 | 4000 | 4500 | 5000 | 6000 |
| 3/4" | 19 | 6000 | 7000 | 12000 | 13000 |
| 1" | 25 | 7000 | 9000 | 15000 | 17000 |
| 2" | 50 | 22000 | 25000 | 30000 | 35000 |
What else we have ?
The production process
