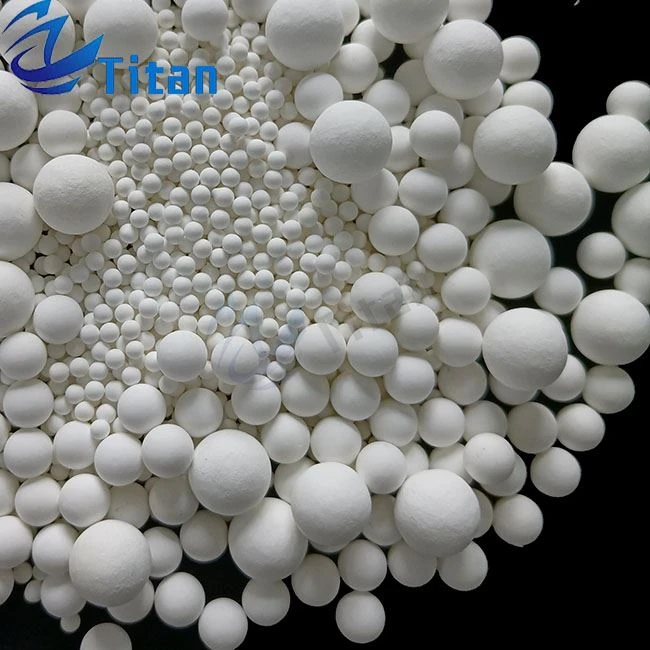

Alumina Filler Ball
Al2O3 ： 80% 92% 95% 99%
Bulk density(g/cm3) ： 2.5-2.8 >= 2.8 >=3.1 3.3-3.7
water absorption (%) ： <=5
Shock resistance ： Good
Color ： white
Size：3mm 6mm 8mm 10mm 13mm 19mm 25mm 50mm
Description
Alumina filler balls are made of high-quality raw materials and fired by advanced technology. Widely used in petrochemical and other industries as packed tower packing balls, catalyst carriers, as bottom filling materials for petrochemical, chemical fiber plants, ethylene plants and other hydrorefining units, catalyst reforming units, isomerization units, demethylation units, etc. .
Feature
1 (High-Quality Raw Materials) Alumina filler balls are made of alumina ultrafine powder as the main raw material, which is fired by advanced molding technology and high temperature tunnel kiln.
2 (Product Features) Alumina filler balls have the characteristics of high temperature resistance, high pressure resistance, low melt water rate, stable chemical properties, can withstand the corrosion of strong acid and alkali and other organic components, good thermal shock resistance, and can adapt to different temperature changes.
3 (Component Content) alumina content ≥80 ≥92 ≥95≥99,color is mainly white，common specifications: 3mm 6mm 8mm 10mm 13mm 19mm 25mm 50mm.
4 (Application Field) Alumina packing balls are mainly used in high temperature, high pressure and highly corrosive working environment in petrochemical industry.
Technical parameters
Series | BMTL80 | BMTL92 | BMTL95 | BMTL99 |
AL2O3 (%) | ≥80 | ≥92 | ≥95 | ≥99 |
Water absorption(%) | ≤5 | ≤5 | ≤5 | ≤5 |
Bulk density(g/cm3) | 2.5-2.8 | ≥2.8 | ≥3.1 | 3.3-3.7 |
Shock resistance (%) | Good | Good | Good | Good |
Dimension(mm) | 3mm 6mm 8mm 10mm 13mm 19mm 25mm 50mm | |||
Packing of absorption tower filler balls
1) Ordinary packing: polyethylene woven bag with a net weight of 25kg, which can be added to a pallet.
Application
Inert alumina ceramic balls are widely used in petroleum, chemical, fertilizer, natural gas and environmental protection industries as the covering support material and tower packing for the catalyst in the reactor. Its main function is to increase the distribution point of gas or liquid, and support and protect the active catalysis with low strength.
Product pictures
Our production process
Q&A
1. Are you are trading company or a factory?
500-650ton per month
92%alumina liner, 95%alumina liner, T95%alumina liner, zirconia tile liner, ZTA tiles , ceramic-rubber composite plates, wearing compound .
If we have stock, the delivery time is within 5-7days after order confirmed. If there is no stock, it is usually 15-20days.
Yes, we have engineer team and we can produce ceramic parts according to the drawings of the customers.
Bag or carton, and then wooden pallet or wooden box, 20~25tons per 1*20"FCL
Qingdao port
