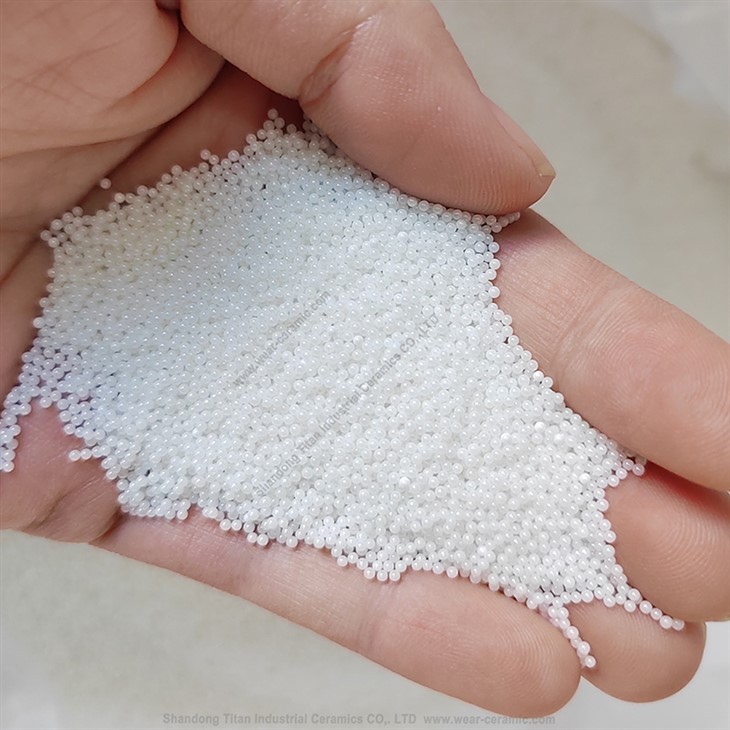

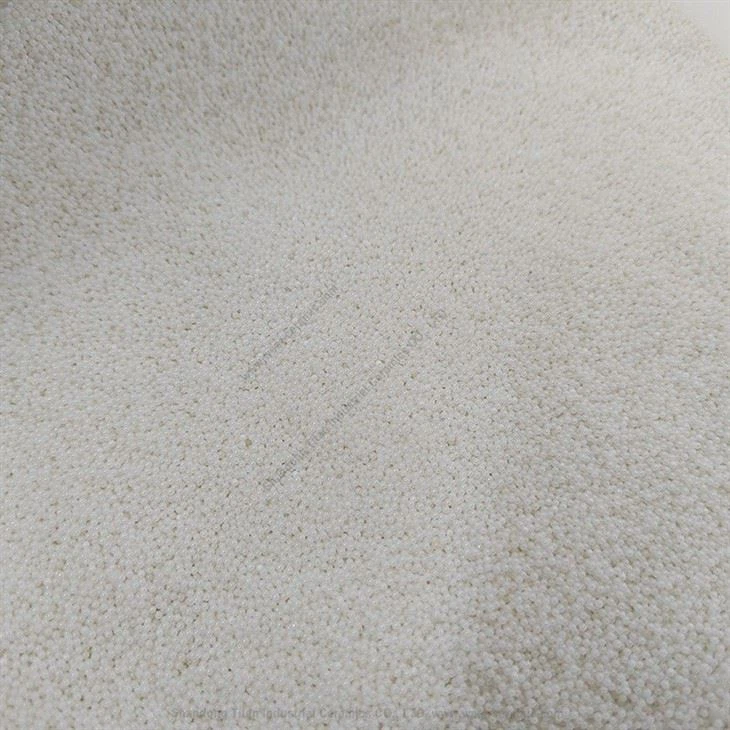

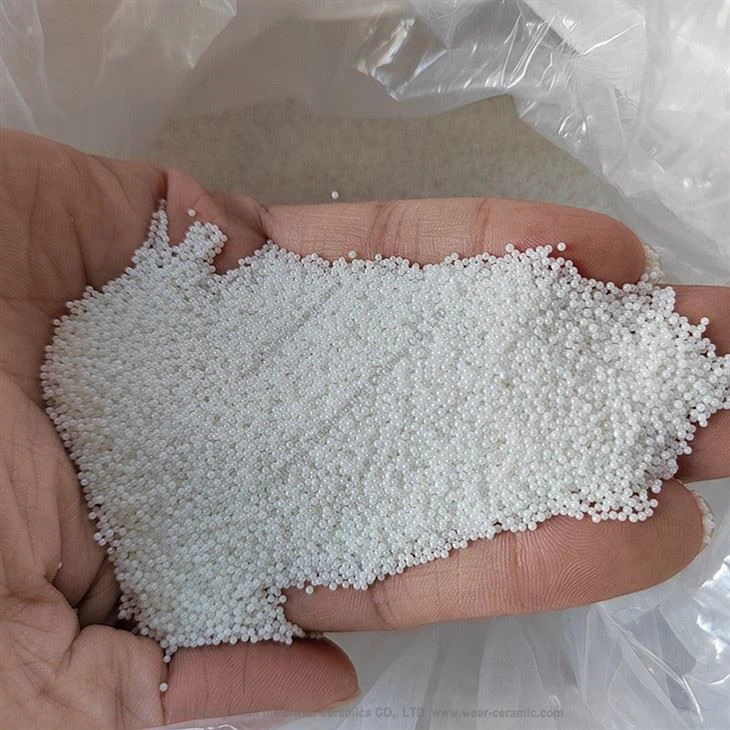

Particle Size 1.0mm Zirconium Bead
Product Material: zirconia
ZrO2(%) : 95
Y2O3(%) : 5
Mohs Hardness : 9
Real density(g/cm3) : >=6.0
Bulk density(g/cm3) : 3.65
Self wearing rate :2ppm
color :white

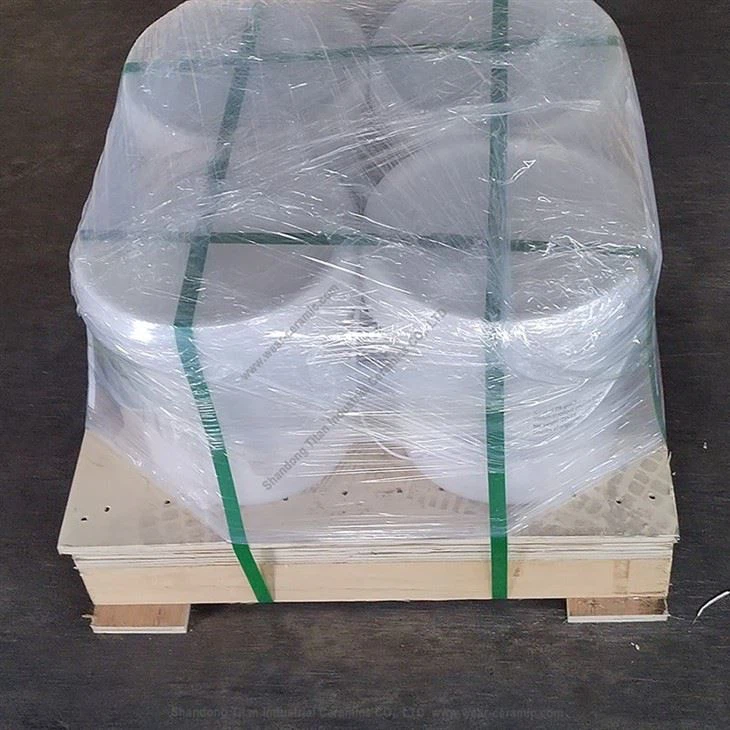

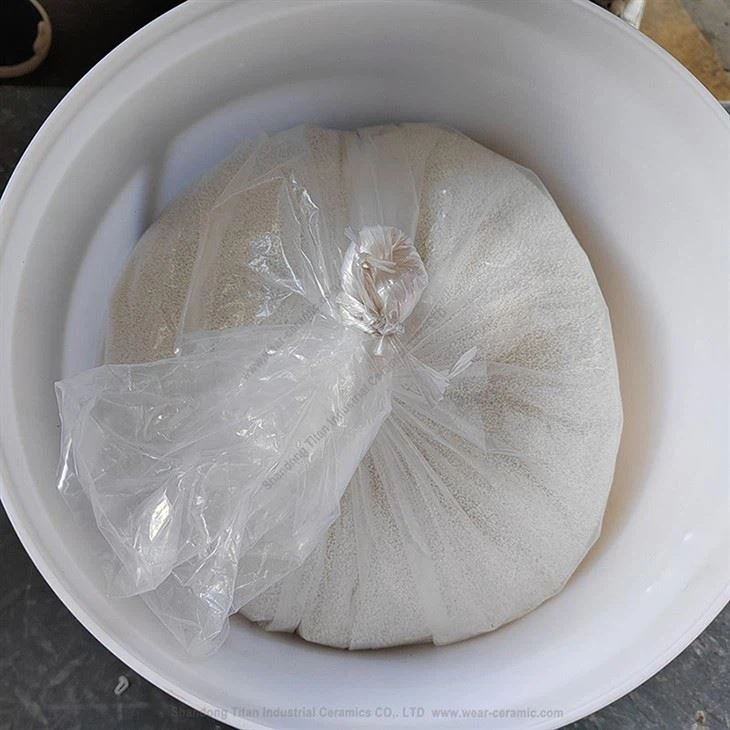

package: 25kg/barrel
Details
Zirconia balls are produced from rare earth yttrium oxide plus zirconia powder as raw materials, and are produced in the process of mixing, pulverizing, grinding (slurry, clay), molding, drying and sintering. They are mainly grinding media and are used as ball milling equipment. As long as the grinding products in the production and processing are not only widely used, but also comprehensively reduce the cost in power consumption, labor and equipment. Zirconia beads has been widely used in different types of ceramic, enamel, glass, chemical and other factories for thick and hard materials and deep processing, especially in the field of high-purity fine processing.
Advantage

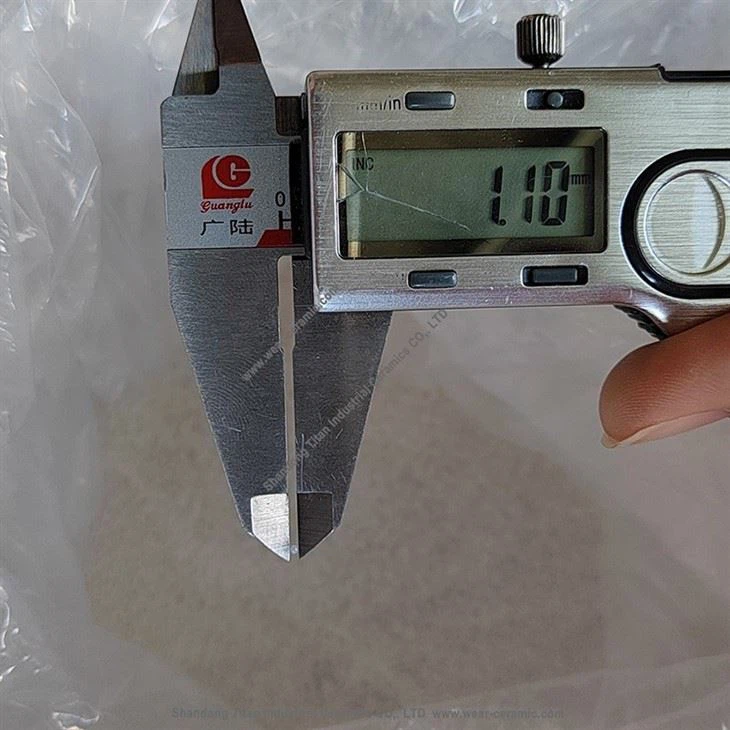

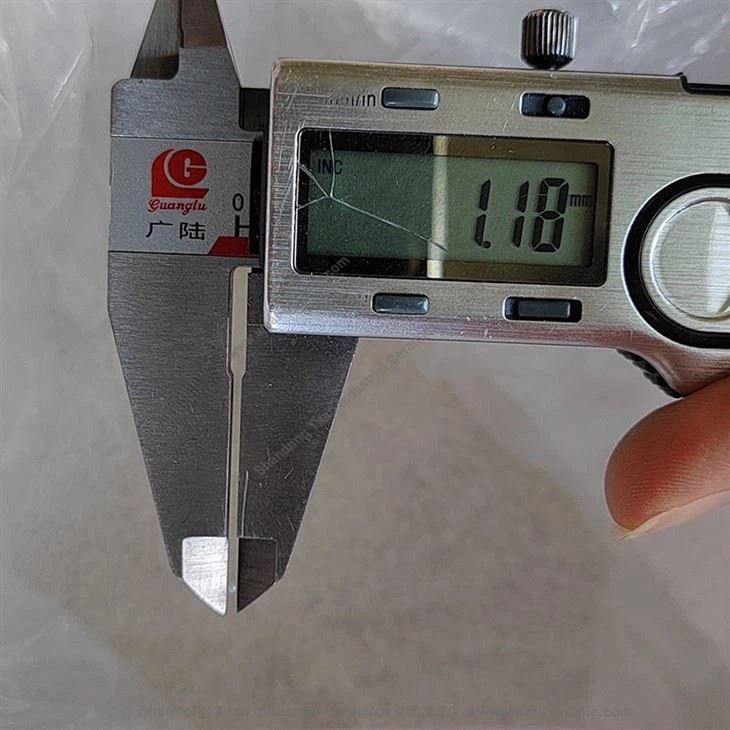

1. Particle size 1.0mm Zirconium bead have 0.8-1.0 specifications and 1.0-1.2 specifications. Generally, they can be used in many industries such as titanium dioxide, paint, and color paste, and can be ground to 2-10 microns.
2. 1.0mm yttrium stabilized zirconia beads, good surface finish, like pearls, wear-resistant, not broken beads, suitable for crushing and grinding in electronics, MLCC, coatings, biology, medicine, food industries, etc.
3.The density is 6.0 and the bulk specific gravity is 3.6. It is put into the equipment and has high grinding efficiency.
Specification
Series | BMYG95 |
ZrO2 (%) | 95±0.5 |
Y2O3 (%) | 5 |
Hardness (Mohs) | 9 |
Real density (g/cm3) | ≥6.0 |
Bulk density (g/cm3) | 3.65 |
Self wearing rate (%) | 2ppm |
Regular Dimension (mm) | 0.1mm 0.2mm 0.3mm 0.4-0.6mm 0.6-0.8mm 0.8-1.0mm 1.0-1.2mm 1.2-1.4mm 1.4-1.6mm 1.8-2.0mm 2.0-2.2mm 2.2-2.4mm 2.4-2.6mm 2.6-2.8mm 2.8-3.0mm 3.0-3.2mm 3.2-3.4mm 3.6-3.8mm 4mm 5mm 8mm 10mm 15mm 20mm 25mm 30mm 40mm 50mm |
How to choose zirconium beads for abrasive paint coatings?
The grinding fineness of the coating cannot blindly pursue the finer the better, because the fineness of the product will also directly affect the covering power, film adhesion and durability of the coating. Equipped with properly ground zirconium beads.
There are many factors affecting the grinding effect. Generally, specific problems will be analyzed in detail, and suitable grinding zirconium beads will be recommended according to the actual needs .
Application
Manufacturers in the coatings industry commonly use three-roll mills, horizontal mills, vertical mills and basket mills. These types of grinding equipment are also mostly used for the grinding and manufacturing of medium and high viscosity liquid raw materials such as paints, inks, pigments and resins. These grinders have their own advantages and disadvantages, and must be selected according to the actual situation.
Our Grinding media ball
The production process
