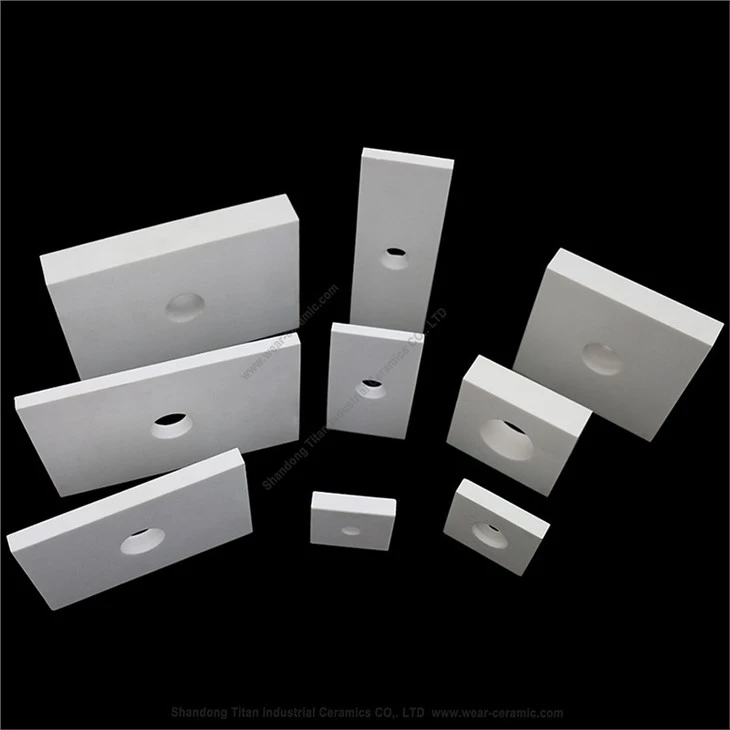

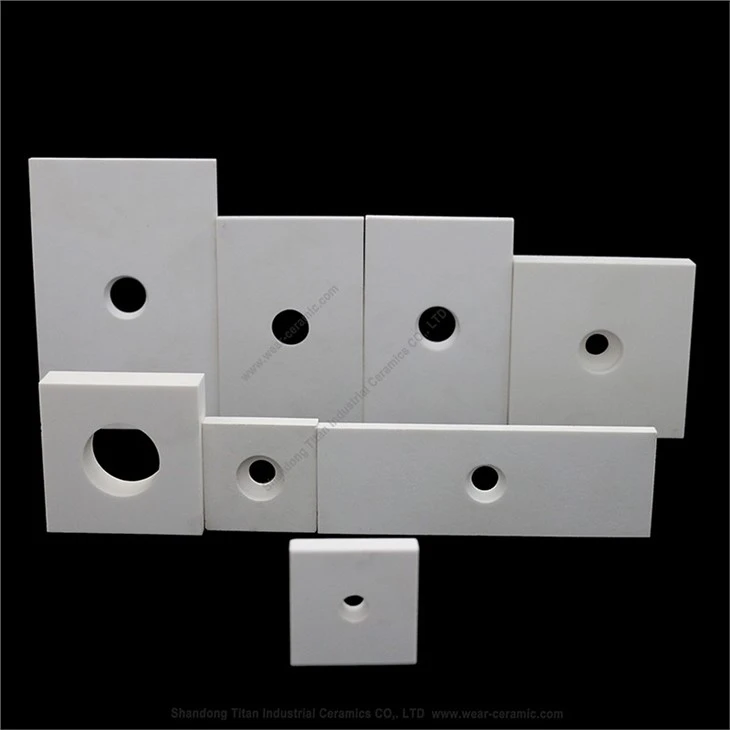

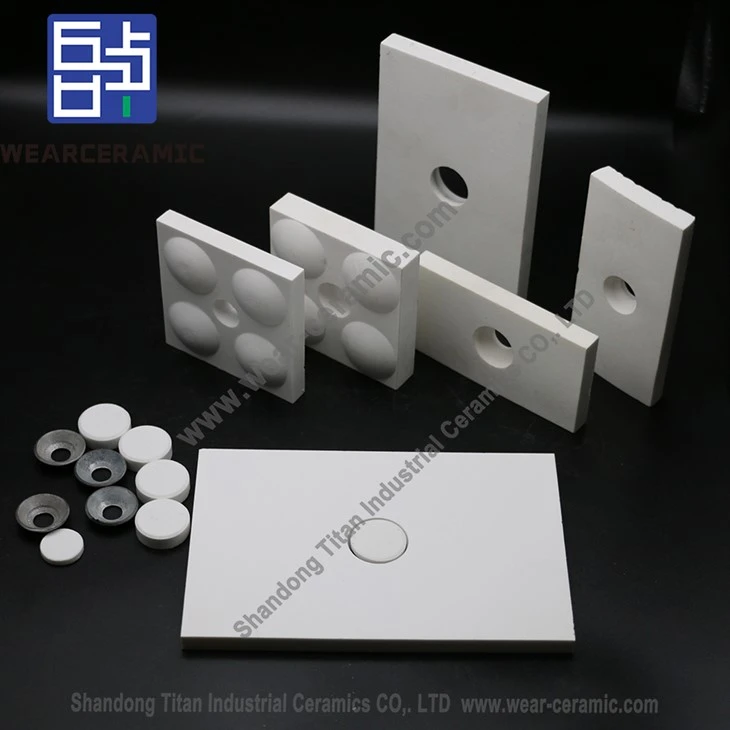

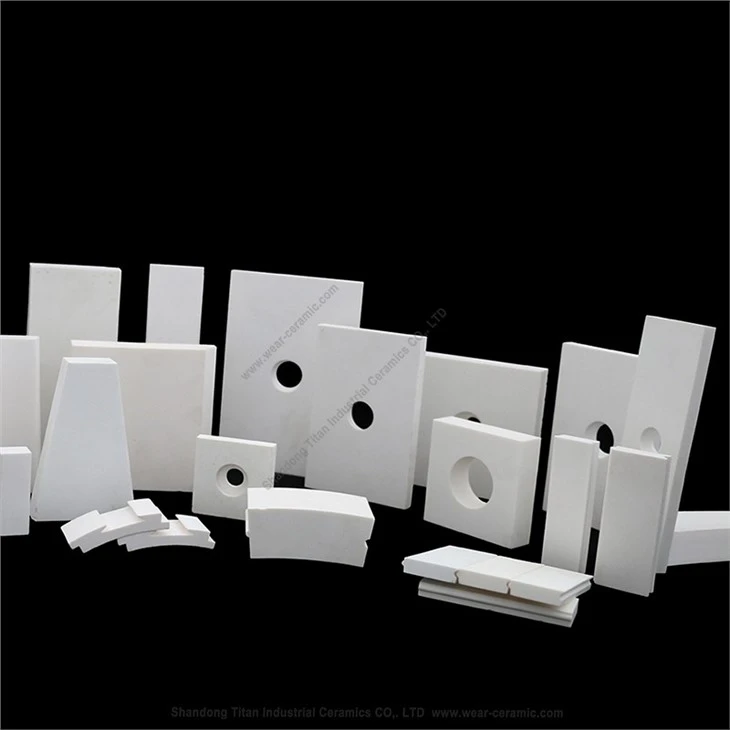

95 Alumina Welding Plate
Product Code: BMG95
Alumina Content: 95%
Bulk Density: ≥3.65 g/cm3
Loss bulk: ≤0.2cm3
Certifified: ISO 9001
Compressive strength: ≥250 MPa
Description
The three main types of alumina ceramic materials are 95 alumina ceramics, 99 alumina ceramics, and composite alumina ceramic ceramics. With very excellent physical and chemical properties, alumina ceramics have not only become a research hotspot in the field of scientific research but have also been used in industrial production to a wide range of applications. Alumina ceramics are a key component of the wear-resistant industry, mechanics, and aerospace. A novel class of industrial wear resistance and anti-corrosion materials,95 alumina welding plate has excellent wear resistance, high strength, and is both.
Features
The 95 alumina welding plate has a number of qualities, including ease of fabrication, wear resistance, impact resistance, corrosion resistance, and high temperature resistance. It is the perfect material for conveying equipment used in the electric power, metallurgy, coal, petroleum, cement, chemical industry, machinery, and other industries to resist surface wear (such as ash, coal powder, fine ore powder, tailings, cement, etc.). When high temperature corrosion, high temperature wear, or high temperature melting occurs, it is extremely safe and dependable to use. In comparison to cast stone, wear-resistant alloy cast steel, steel plastic, steel rubber, and other materials, it has a ten to twenty times longer life.
Application
For hoppers, cyclone separators, chutes, fuel bins, impellers, agitators, fan blades, fan shells, chain conveyors, etc., welding plates are employed. It is an excellent option for equipment lining whether the environment is hot or low in temperature since welding installation is simple. For material conveying machinery or liquid running through pipe surfaces in the oil, mining, steel, power, and other sectors, 95 alumina welding plate is a wear-resistant material. Its primary purpose is to efficiently withstand the pressure of material passing through the pipe wall, the corrosion of chemicals, and the thermal impact of material passing through to lessen the wear on equipment components and significantly lower the cost of regular maintenance. prolong the equipment's useful life.
Technical Data
|
Series |
BMG95 |
|
AL2O3 (%) |
95±0.5 |
| Bulk density(g/cm3) |
≥3.65 |
|
Compressive strength (MPa) |
≥1300 |
|
Bending strength (MPa) |
≥250 |
|
Fracture toughness (MPam1/2) |
≥3.80 |
|
Rockwell hardness (HRA) |
≥85 |
|
Loss bulk (cm3) |
≤0.2 |
Practical application
