Custom Ceramic Sheet Ceramic-Rubber-Steel Ceramic Rubber Plate Ceramic Rubber Panel
Custom Ceramic Sheet Ceramic-Rubber-Steel Ceramic Rubber Plate Ceramic Rubber Panel
Rubber backed alumina ceramic composite plate
Alumina ceramic composite plate
Custom Ceramic Sheet Ceramic-Rubber-Steel high quality
Custom Ceramic Sheet Ceramic-Rubber-Steel price
Custom Ceramic Sheet Ceramic-Rubber-Steel
Product Material: ceramic, rubber and steel
Product Size: Customized
Certifified: ISO 9001
Customized: Availiable
Product details
Composite rubber ceramic wear liners and ceramic wear plates are the best wear liners for the mining and mineral processing industries. To provide great wear and impact resistance, 92%–95% al2o3 alumina ceramic tile or ZTA tiles are embedded or vulcanised into a flexible rubber cushion.
The high alumina ceramic tiles provide outstanding wear resistance, and the elastic rubber base aids in absorbing the impact energy.
Other fastening techniques are also available. Steel backing plates and studs or countersinks can be used to make ceramic wear liners.
For your convenience, we provide a variety of ceramic wear liners. Ceramic tiles are offered as ceramic bricks, square tiles, cylindrical tiles, or hex tiles on rubber.
Custom-shaped ceramic wear plates and rubber wear liners.
Advantage
the construction is convenient
Impact resistance
The density is lower than that of steel plate and light weight
Non-sticking and non-blocking
Application
The ceramic rubber composite plate is suitable for the silo, hopper and other equipment in the material conveying and batching system of the metallurgical iron and steel industry, and the coal conveying and ash discharge system of the thermal power plant.
Technical specification
|
Series |
Rubber |
|
Bulk density(g/cm3) |
1.4 |
|
Tensile strenth at break (MPa) |
≥14 |
|
Elongation at break (%) |
≥250 |
|
Shore hardness (HA) |
48-65 |
|
Adhesive between steel and rubber (MPa) |
≥3.5 |
|
Adhesive between rubber and ceramic (MPa) |
≥3.5 |
|
Thermal conductivity (normal temperature) (W/M·K) |
2 |
|
Aging period (years) |
≥1.5 |
|
Working temperature(℃) |
-50-200 |
|
Series |
BM92 |
BMG95 |
|
AL2O3 (%) |
92±0.5 |
95±0.5 |
|
Bulk density(g/cm3) |
≥3.6 |
≥3.65 |
|
Compressive strength (MPa) |
≥1050 |
≥1300 |
|
Bending strength (MPa) |
≥220 |
≥250 |
|
Fracture toughness (MPam1/2) |
≥3.70 |
≥3.80 |
|
Rockwell hardness (HRA) |
≥82 |
≥85 |
|
Loss bulk (cm3) |
≤0.25 |
≤0.2 |
The product picture

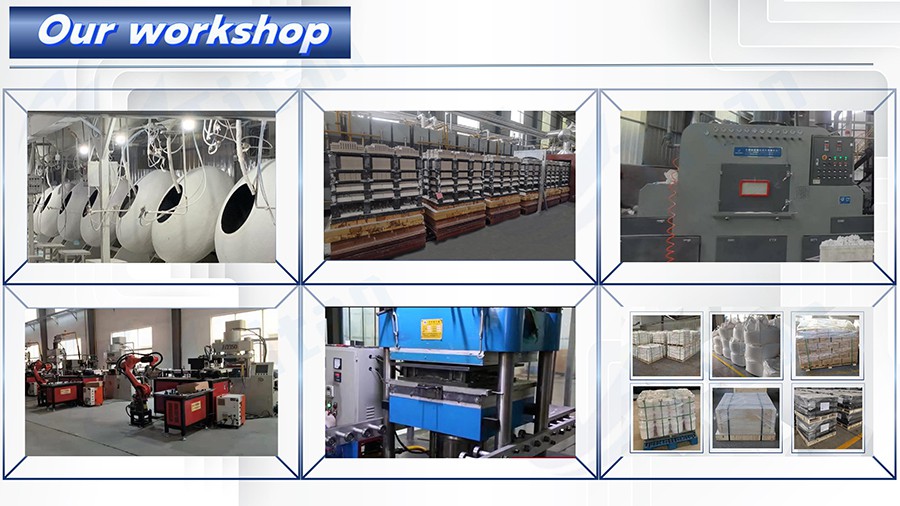

Our workshop
