Ceramic Lining Bricks for Ball Mill
Advantage:1. The main component of high-alumina lining brick is high-quality alumina with high purity, which can greatly reduce the pollution caused by grinding materials.
2. Good wear resistance, effectively prolonging the service life of machinery and equipment.
3. The slurry produced by grinding with high alumina balls is fine.
4. It has the characteristics of corrosion resistance, high density and high mechanical strength.
Product Introduction

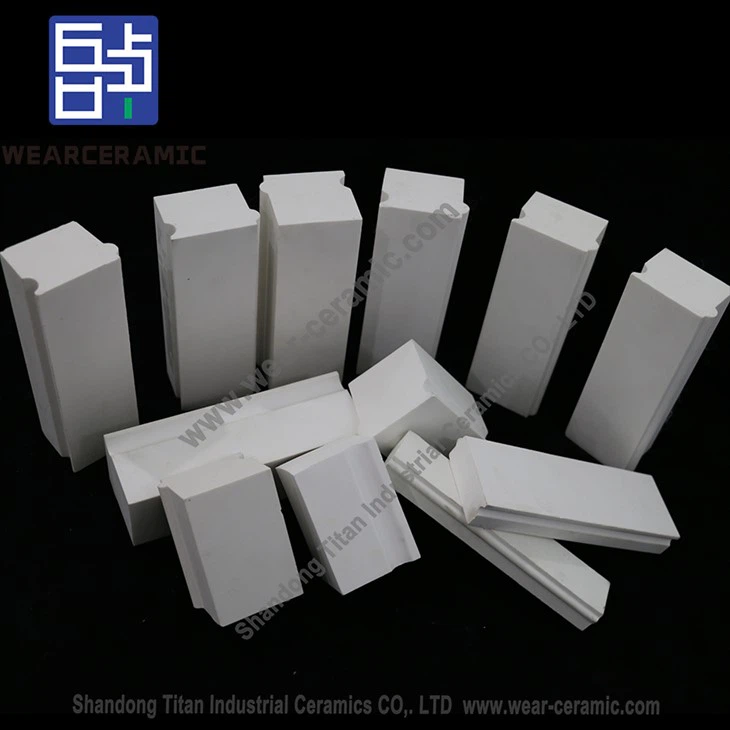

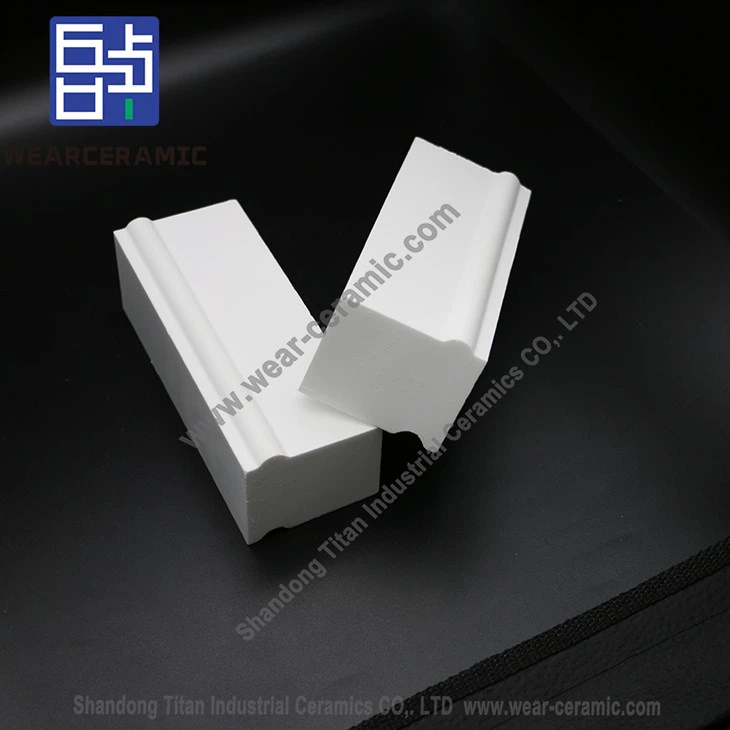

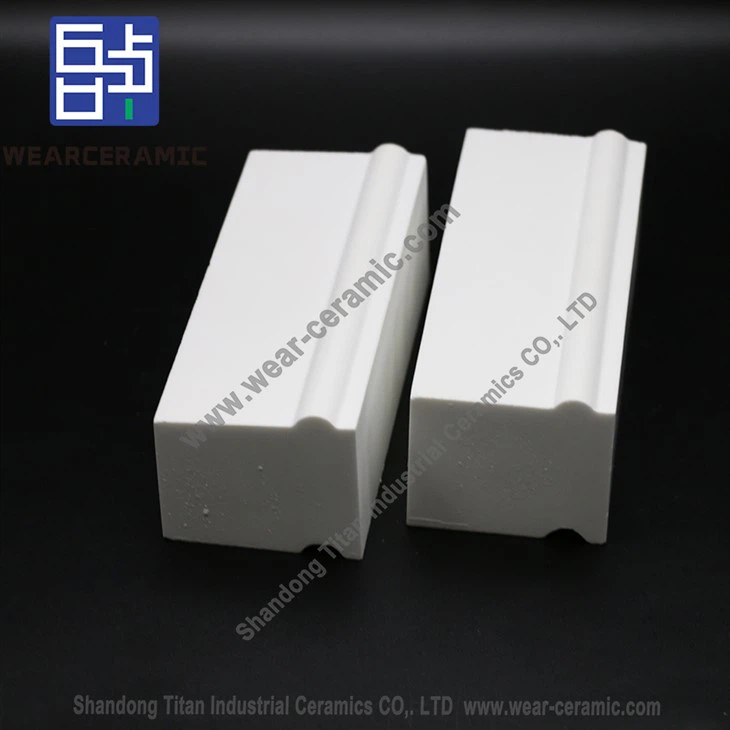

Ceramic Lining Bricks for Ball Mill is a kind of ceramoc liners which has the characteristics of high hardness, high density, low abrasion, good regularity and corrosion resistance.Alumina ceramic brick is mainly used in the wear-resistant lining of the ball mill, and it is a powerful assistant for wear-resistant and corrosion-resistant of the ball mill.
Installation Method
1. Before installation, any brick or cement left on the surface of the ball mill must be cleaned, and the smooth surface shall be roughened.
2. The installation gap shall be within 1mm, white cement or a small amount of 107 glue shall be used as the adhesive, or resin glue can be used to paste the lining brick.
3. The installation sequence shall start from the end face. Straight bricks or semi straight bricks shall be used for both ends. After the two end faces are installed, the cylinder shall be installed. After completion, the surface shall be cleaned, watered for 1-2 days, and then filled with water for curing for more than 10 days.
Specification Available
| Lining Brick | ||||||
| Height(mm) | 35 | 40 | 50 | 60 | 70 | 90 |
| Width(mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| Length(mm) | 75~150 | 75~150 | 75~150 | 75~150 | 75~150 | 75~150 |
| Bevel Lining Brick | ||||||
| Height(mm) | 35 | 40 | 50 | 60 | 70 | 90 |
| Width(mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| Length(mm) | 75~150 | 75~150 | 75~150 | 75~150 | 75~150 | 75~150 |
Note: Width 50/45mm means upper width=45mm,and bottom width=50mm.
Chemical Composition and Physical Properties
| Series | BMNC92 |
| AL2O3(%) | 92±0.5 |
| Hardness(Mohs) | 9 |
| Bulk density(g/cm3) | ≥3.6 |
| Water absorption(%) | 0.01 |
Application
Ceramic Lining Bricks for Ball Mill is mainly used in the lining of ball mills in industries such as ceramics, medicine, coatings, and inorganic mineral powders.
The effect after lined
The production process of ceramic lining bricks
