Product Name:alumina lining mill bricks for ball mill
Product Material:alumina ceramic
Al2O3 92% 95%
Bending strength(MPa) >=220 250
Compressive strength(MPa) >=1050 1300
Fracture toughness (MPam1/2) >=3.7 3.8
Rockwell hardness (HRA) >=82 85
Loss bulk(cm3) <=0.25 0.2
Bulk density(g/cm3) >=3.6 3.65
Application :Vertical, Horizontal Sand Mill, Ball Mill

Send Inquiry

Product Introduction

Product introduction

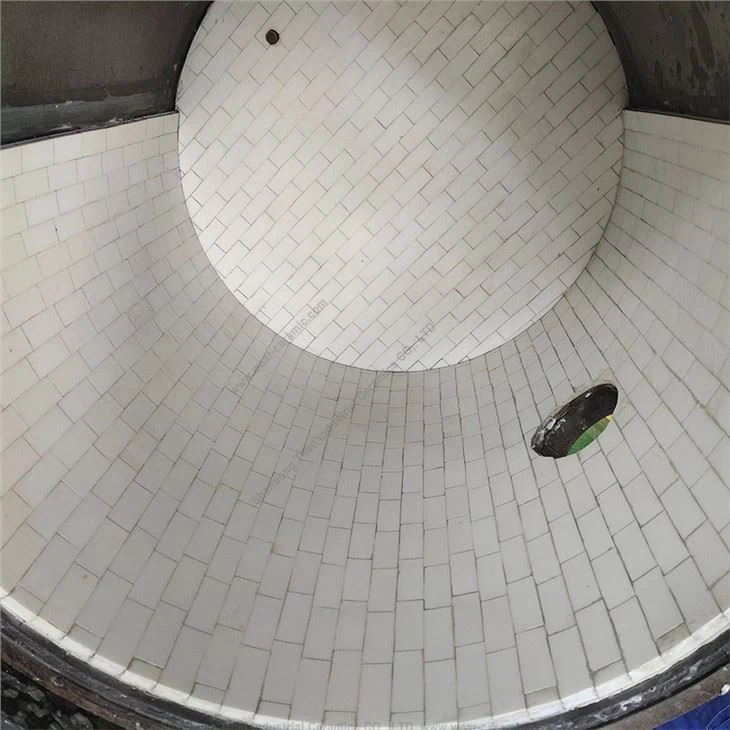

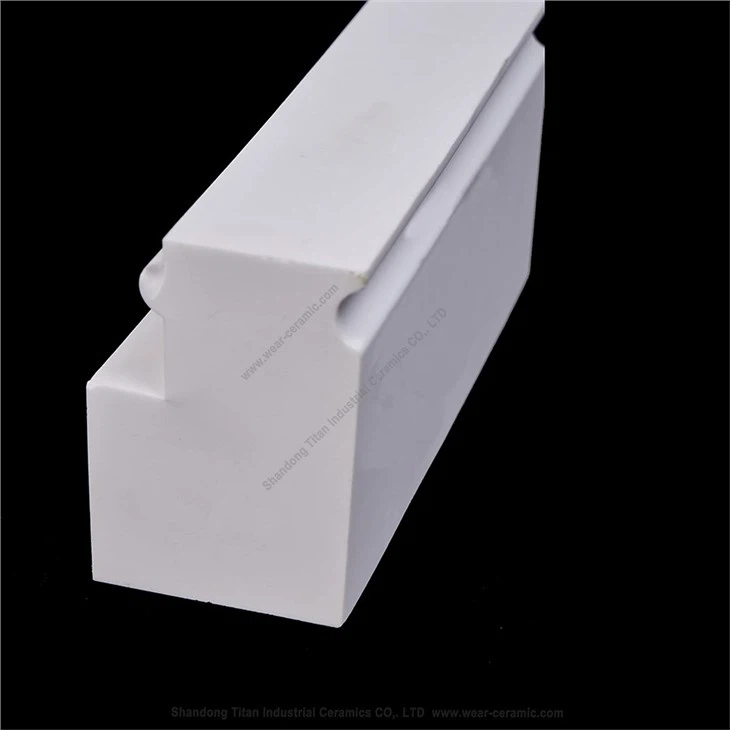

The appearance of the ceramic lining bricks of the ball mill is delicate white, and the two lining bricks are connected by a female-female button to ensure the connection strength. Its main component is high-quality alumina, with high whiteness, without any adverse effect on the quality of the ground material. There are five types of ceramic lining bricks for ball mills, namely straight bricks, inclined bricks, straight half bricks, inclined half bricks and thin bricks. Because of its excellent wear resistance, the ceramic lining brick of the ball mill is 266 times that of manganese steel.

Feature

1Effectively improve grinding efficiency, reduce grinding cost and reduce product pollution.

2Using high-quality alumina powder as raw material, it has high purity and greatly reduces the pollution caused to grinding materials.

3Good wear resistance, the wear resistance is 266 times that of manganese steel, effectively prolonging the service life of the equipment.

4Combined with our own production of alumina grinding balls, the slurry is fine, corrosion-resistant, high-density and high-mechanical strength.

Product application

Alumina lining mill bricks for ball mill used for wear-resistant lining of ball mills, widely used in ceramics, cement, paint, pigment, chemical, pharmaceutical, paint, inorganic mineral powder and other industries, can effectively improve grinding efficiency, reduce grinding costs, and reduce product pollution.

Technical parameters

Series	BM92	BMG95
AL2O3 (%)	92±0.5	95±0.5
ZrO2 (%)	-	-
Bulk density(g/cm3)	≥3.6	≥3.65
Compressive strength (MPa)	≥1050	≥1300
Bending strength (MPa)	≥220	≥250
Fracture toughness (MPam1/2)	≥3.70	≥3.80
Rockwell hardness (HRA)	≥82	≥85
Loss bulk (cm3)	≤0.25	≤0.2

Regular shape and size

Ling brick (non tapered)
Height (mm)	35	40	50	60	70	90
Width (mm)	50	50	50	50	50	50
Length (mm)	150	150	150	150	150	150
Ling brick (tapered)
Height (mm)	35	40	50	60	70	90
Width (mm)	45/50	45/50	45/50	45/50	45/50	45/50
Length (mm)	150	150	150	150	150	150
Ling brick (half-non tapered)
Height (mm)	35	40	50	60	70	90
Width (mm)	50	50	50	50	50	50
Length (mm)	75	75	75	75	75	75
Ling brick (half tapered)
Height (mm)	35	40	50	60	70	90
Width (mm)	45/50	45/50	45/50	45/50	45/50	45/50
Length (mm)	75	75	75	75	75	75
Ling brick (Thin-non tapered)
Height (mm)	35	40	50	60	70	90
Width (mm)	25	25	25	25	25	25
Length (mm)	150	150	150	150	150	150
Ling brick (Thin tapered)
Height (mm)	35	40	50	60	70	90
Width (mm)	22.5/25	22.5/25	22.5/25	22.5/25	22.5/25	22.5/25
Length (mm)	150	150	150	150	150	150
