Alumina Ceramic Lining Brick
Product Material:alumina ceramic
Al2O3 : 92%
Mohs Hardness : 9
Bulk density(g/cm3) : >=3.6
water absorption (%) : 0.01
color : white
Certificate:ISO9001
Customized: available Application : Ball mill lining in ceramics, medicine, paint, inorganic mineral powder and other industries.
Description
Alumina ceramic lining bricks are also called wear resistant zirconia ceramic liner, ball mill lining bricks, ball mill lining plates, and wear-resistant ceramic lining bricks. It has the characteristics of high hardness, high density, low wear, good regularity, corrosion resistance, etc., which are pressed and formed by two-way hydraulic presses and sintered in high-temperature natural gas kilns.
Feature
1The appearance of the ceramic lining brick of the ball mill is delicate white, and the two lining bricks are connected by snap buttons to ensure the connection strength.
2 Alumina Ceramic Lining Brick main component is high-quality alumina, which has high whiteness and has no adverse effect on the quality of the ground material.
3 There are five types of ceramic lining bricks for ball mills, namely straight bricks, inclined bricks, straight half bricks, inclined half bricks and thin bricks.
4 Ball mill ceramic lining bricks have excellent wear resistance, which is 266 times that of manganese steel. They are mainly used as wear-resistant linings of ball mills.
5 They are matched with high alumina balls to grind fine slurry.
Technical specification
AL2O3 (%) | 92±0.5 | 95±0.5 |
Bulk density(g/cm3) | ≥3.6 | ≥3.65 |
Compressive strength (MPa) | ≥1050 | ≥1300 |
Bending strength (MPa) | ≥220 | ≥250 |
Fracture toughness (MPam1/2) | ≥3.70 | ≥3.80 |
Rockwell hardness (HRA) | ≥82 | ≥85 |
Loss bulk (cm3) | ≤0.25 | ≤0.2 |
Why we use alumina ceramic brick inside of ball mill?
There are grinding balls of different specifications in the ball mill, and the rotation of the cylinder produces centrifugal force, which will bring the grinding balls to a certain height and then fall down, which will impact and grind the materials.
During the whole grinding process, the grinding ball will have a huge impact and friction on the lining board of the warehouse. During the material damage process, the sharp edge and irregular shape will also cause serious wear to the lining board. Under this working environment, Ordinary wear-resistant liners will be worn out soon, but the use of impact-resistant and wear-resistant ceramic liners can provide better protection and reduce equipment wear, thereby prolonging the service life of the mill, reducing production costs, and improving the quality and benefit of the enterprise.
Application
Wear-resistant ceramic lining bricks are widely used in ceramics, glazes, chemicals, medical and other industries.

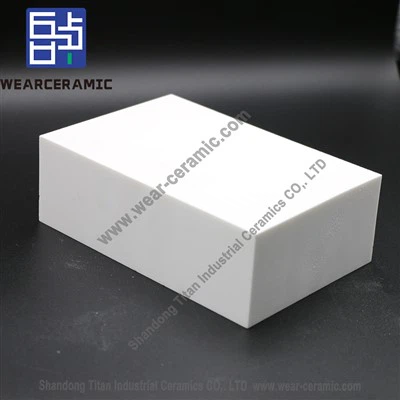

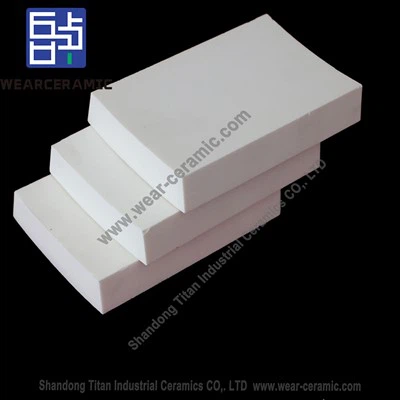

Product Image


Our ceramic liner tile

The production process

FAQ
1. Are you are trading company or a factory?
We are a factory, manufacturing high alumina ceramic wear resistant liners in Zibo, China
2. What is your monthly capacity?
500-650ton per month
3. What kinds of ceramic wear resistant liners do you manufacture?
92%alumina liner, 95%alumina liner, T95%alumina liner, zirconia tile liner, ZTA tiles , ceramic-rubber composite plates, wearing compound .
4. What is the delivery time?
If we have stock, the delivery time is within 5-7days after order confirmed. If there is no stock, it is usually 15-20days.
5. Can you manufacture ceramic liner according to customers' desgin?
Yes, we have engineer team and we can produce ceramic parts according to the drawings of the customers.
6. What is the packing?
Bag or carton, and then wooden pallet or wooden box, 20~25tons per 1*20"FCL
7. What is the nearest port?
Qingdao port
