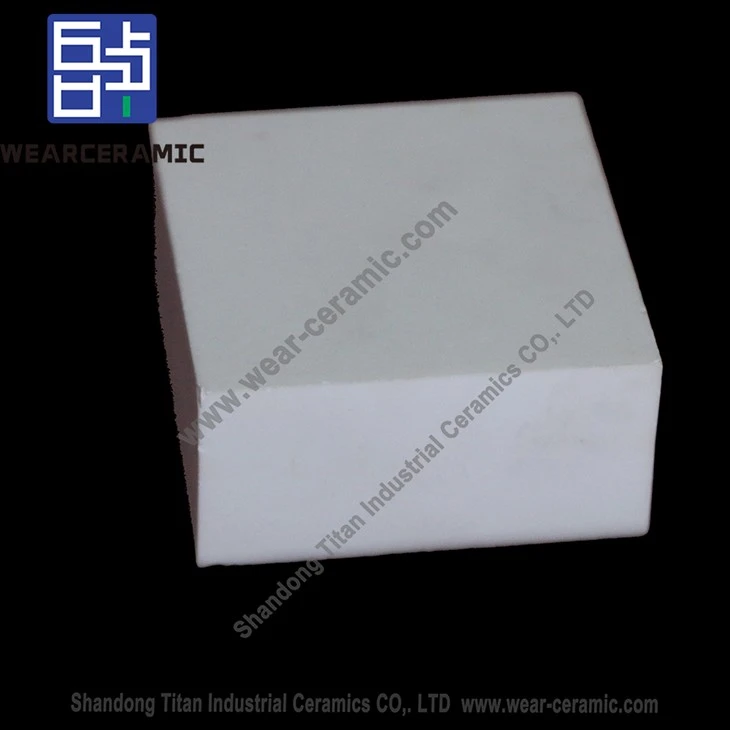

Alumina Plates
video

Alumina Plates

high temperature resistance,92% alumina content, 95% alumina content,strong wear resistance
Send Inquiry
Product Introduction

Product introduction:

Alumina liner is a kind of industrial wear-resisting material, specially used for the anti-wear and anti-impact of various grinding equipments. Titan produces alumina liners with different content including 92% alumina liner and 95% alumina liner. We also can produce curved alumina liner and weldable alumina liner.




Properties:

impact resistance

corrosion resistance

high temperature resistance

high hardness


Application:

Alumina liner is mainly pasted on the surface of seriously worn equipment for anti-wear such as chutes, hoppers, ball mills etc.


Chemical composition and physical properties:


SeriesBM92
BMG95BME95BMZTABMZR
AL2O3(%)92±0.595±0.595±0.5≥75-
ZrO2(%)---≥2194.8±0.5

Bending strength

(Mpa)

≥220≥250≥300≥400≥800
Compressive strength    (MPam1/2)≥3.7≥3.8≥4.0≥4.5≥7

Rockwell hardness

(HRA)

≥82≥85≥88≥90≥88
Wear volume(cm3)≤0.25≤0.2≤0.15≤0.05≤0.02
Bulk density(g/cm3)≥3.6≥3.65≥3.7≥4.1≥5.9


Specification Available:


Size
LengthWidthHeight
Flat liner50-15025-1006-50
Weldable liner50-15030-10010-50
Trapezoidal liner50-15020-1008-50
