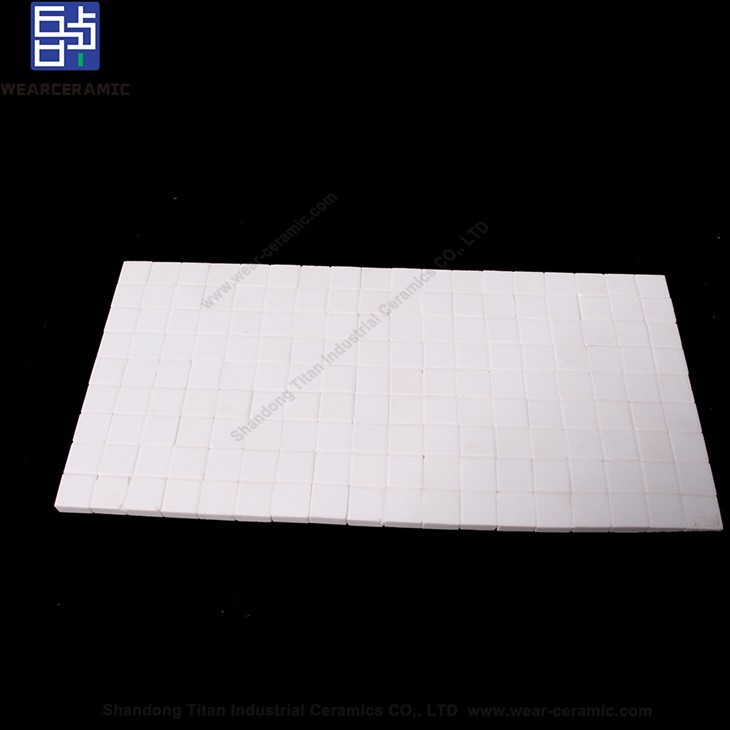

High Wear-resistant Alumina Ceramic Patch

Description

High Wear-resistant Alumina Ceramic Patch have a high aluminum oxide content, a dense structure, a high melting point, and high hardness. The hardness of ceramic patches is second only to that of diamonds. They have a smooth surface and a low wear coefficient. Compared with other materials, they have many advantages such as high hardness, wear resistance, high temperature resistance, and isolation from metal pollution. They have very ideal performance and come in a variety of shapes, including mosaic, square, and rectangular, which can be customized according to requirements.



Performance characteristics
1. The hardness is second only to diamond, and the wear resistance is high.
2. Good wear resistance, extending the service life of the equipment.
3. Light weight, which can reduce the load on the equipment.
4. High Wear-resistant Alumina Ceramic Patch can be used in coal and material transportation, pulverizing systems, ash removal and other mechanical equipment with high wear in thermal power, steel, mining, chemical industry, cement, etc.



Specification

Series	BM92	BMG95	BME95	BMZTA	BMZR
AL2O3 (%)	92±0.5	95±0.5	95±0.5	≥75	-
ZrO2 (%)	-	-	-	≥21	94.8±0.5
Bulk density(g/cm3)	≥3.6	≥3.65	≥3.7	≥4.1	≥5.9
Compressive strength (MPa)	≥1050	≥1300	≥1600	≥2000	-
Bending strength (MPa)	≥220	≥250	≥300	≥400	≥800
Fracture toughness (MPam1/2)	≥3.70	≥3.80	≥4.0	≥4.5	≥7
Rockwell hardness (HRA)	≥82	≥85	≥88	≥90	≥88
Loss bulk (cm3)	≤0.25	≤0.2	≤0.15	≤0.05	≤0.02

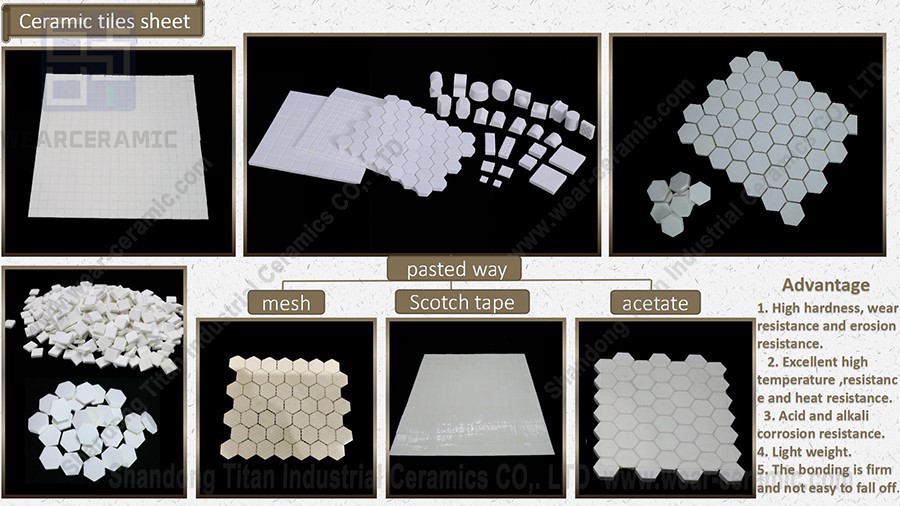

Material behind the High Wear-resistant Alumina Ceramic Patch: mesh cloth , acetate cloth, scotch tape.





The square Tile

Length * Width	Height
10*10	3-10
17.5*17.5	3-10
20*20	4-10
25*25	4-10

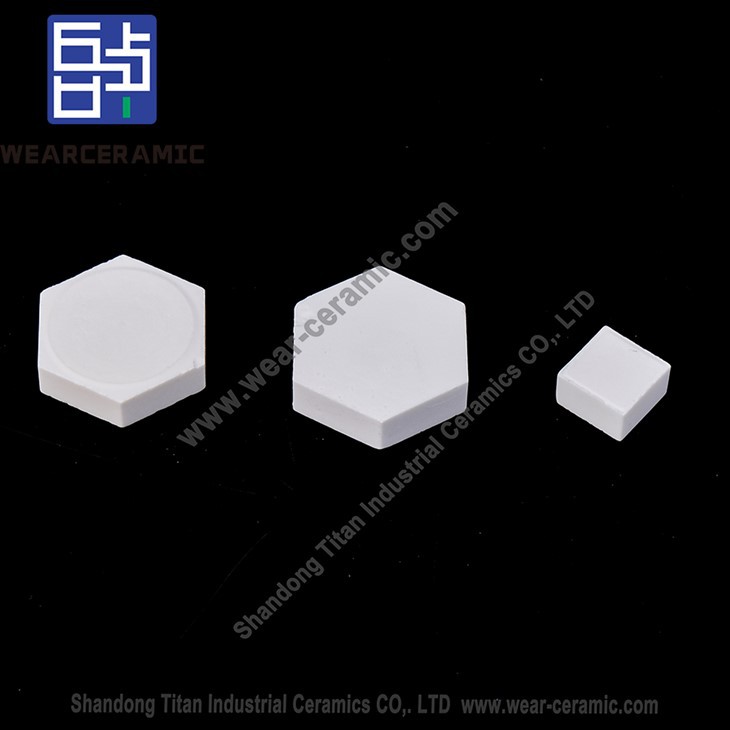

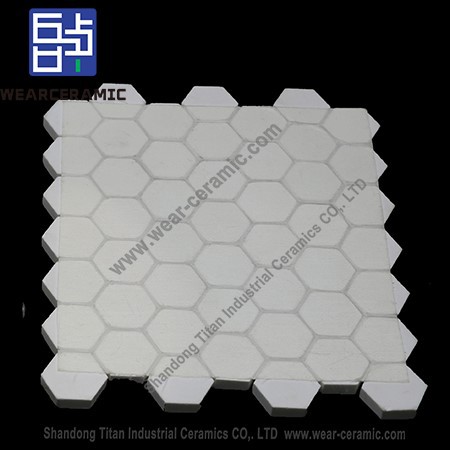

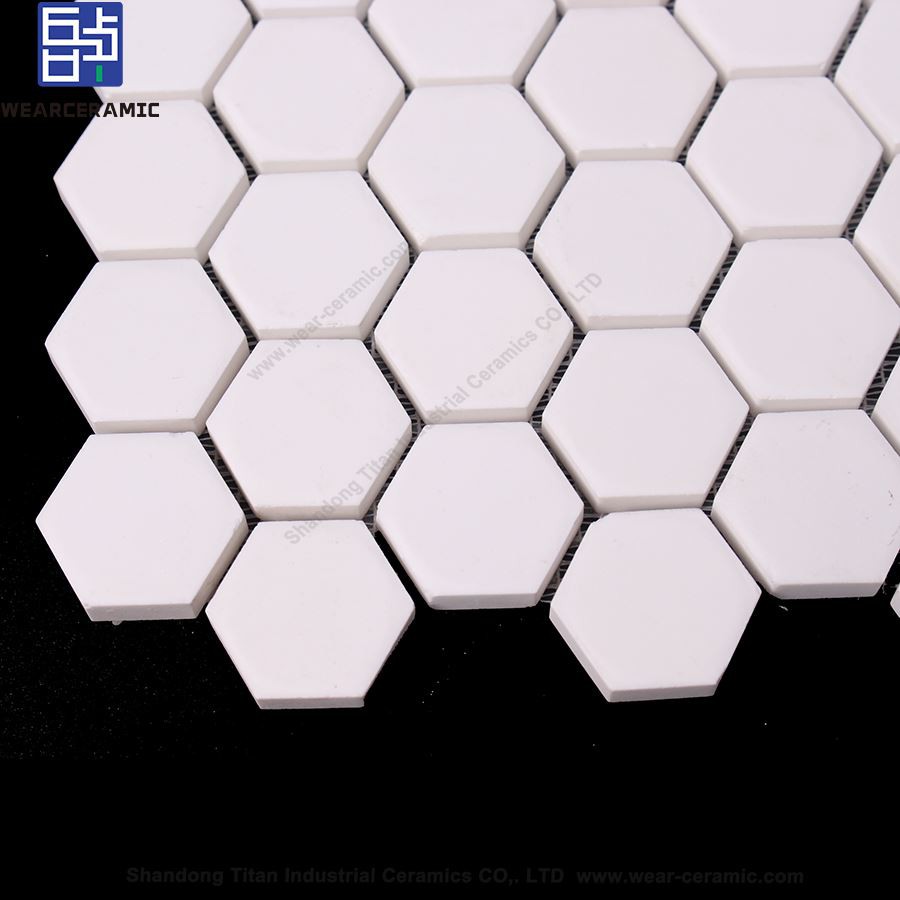

The Hex Tile

Length * Width	Height
12*12	6-25
12.5*12.5	6-25



Ceramic sheet knowledge

The difference between ceramic sheets of different shapes
1. Impact resistance: round ceramic sheets are evenly distributed and not easy to break, while square and triangular sheets have weak impact resistance.
2. Wear resistance: For composite linings, round linings have lower wear resistance than triangular and square linings.
3. Adhesion to materials: The larger the gap, the more materials will stick together, and the degree of blockage of round linings is greater than that of triangular and square linings.
4. Difficulty of installation: square and triangular linings are easier.
5. Beautiful appearance: In working conditions with greater wear and strong stickiness of material stations, try to choose triangular, square, and diamond linings, while in working conditions with greater impact and less wear, you can choose round linings.



FAQ



1. Can I get sample order?
 Yes, welcome sample order to test and check our quality! Some of sample we can free to supply. Customer just need to bear the             shipping cost.



2.What's the lead time for regular order?
Stock avaliable!Customized order 1-3 davs for small quantity : For more quantity 5-9 davs,just negotiate with us.



3.How long is your delivery time?

It depends on the quantity. Generally 5-10days if the goods are in stock, or 10-30 days if no stock.



4.How can I get a quick quotation?

Please kindly send us more details about your requirements.
