Abrasion Resistant Ceramic Lined Pipe Elbow For Lithium Battery
Material :Alumina & stain steel
Al2O3 92% 95%
Bending strength(MPa) :>=220 250
Compressive strength(MPa): >=1050 1300
Fracture toughness (MPam1/2) : >=3.7 3.8
Rockwell hardness (HRA) : >=82 85
Loss bulk(cm3): <=0.25 0.2
Bulk density(g/cm3) : >=3.6 3.65
Application:widely used in electric power, metallurgy, chemical industry, cement, building materials, steel and other industries.
Product Introduction
TITAN Ceramic Lined Elbows are developed for lithium battery powder conveying systems that require reliable wear protection and a smooth material passage. The combination of a stainless steel shell and high-alumina ceramic rings helps resist particle erosion, reduce pipeline maintenance, and support stable powder transfer.
Description

The wear-resistant ceramic pipe is a firm combination of alumina corundum ceramics, transition layer and steel layer. It has good comprehensive properties such as good wear resistance, heat resistance, corrosion resistance, mechanical shock resistance and thermal shock resistance, and good weldability. It is an ideal wear-resistant and corrosion-resistant pipeline for conveying granular materials, grinding, corrosive media, etc.
The wear-resistant ceramic pipe for lithium batteries is composed of three parts: 304 stainless steel outer pipe, viscose and super wear-resistant alumina ceramic lining. The inner ceramic ring is modeled, pressed and fired according to the curvature of the elbow. The inner wall of the pipe is smooth. There are few seams or steps to ensure smooth material transfer without causing turbulence.
Feature
1. The service life of wear-resistant ceramics is more than 5 times that of glass;
2. Anti-corrosion, ceramic lining can resist acid and alkali corrosion;
3. The inner wall is smooth and the airflow is smooth, preventing material hanging and blocking;
4. The specific gravity of ceramics is light, reducing the load of system equipment;
5. Reduce maintenance frequency and cost;
6. The composite pipe can be operated in a temperature environment of 150-300 degrees for a long time.
Product Features and Advantages
High Wear Resistance
The inner lining is made from 92% or 95% alumina ceramic. With a Mohs hardness of approximately 9, the ceramic surface provides strong resistance to scratching and particle erosion.
Compared with an unlined metal elbow, this structure places a hard ceramic layer between the abrasive powder and the steel pipe. It helps reduce direct wear on the pipe wall and lowers the frequency of replacement caused by abrasion.
Smooth Internal Passage
The ceramic rings are manufactured to match the curvature of the elbow. Their arrangement is designed to minimize internal steps and gaps, helping powder move through the bend with less obstruction.
This is particularly useful in pneumatic conveying systems handling fine battery materials, where material buildup or blockage can interrupt production. Actual conveying performance depends on powder properties, pipeline diameter, airflow velocity, and elbow design.
Stainless Steel Composite Construction
The outer pipe uses 304 stainless steel, while the inner ceramic layer provides the main wear protection. A bonding layer connects the two materials.
This structure combines the mechanical support of metal with the hardness of alumina ceramic. It is suitable for pipeline sections where ordinary metal fittings may experience rapid internal wear.
Reduced Maintenance Requirements
Elbows are often exposed to concentrated particle impact because the material changes direction during transportation. A ceramic-lined bend helps protect these vulnerable areas and may extend the maintenance interval.
The actual service life depends on powder hardness, particle size, conveying speed, operating temperature, and installation conditions.
Technical Specific
|
Series |
BM92H |
BMG95H |
BME95H |
|
AL2O3 (%) |
92±0.5 |
95±0.5 |
95±0.5 |
|
Bulk density(g/cm3) |
≥3.6 |
≥3.65 |
≥3.7 |
|
Compressive strength (MPa) |
≥1050 |
≥1300 |
≥1600 |
|
Bending strength (MPa) |
≥220 |
≥250 |
≥300 |
|
Fracture toughness (MPam1/2) |
≥3.70 |
≥3.80 |
≥4.0 |
|
Rockwell hardness (HRA) |
≥82 |
≥85 |
≥88 |
|
Mohs hardness |
9 |
9 |
9 |
Application
Abrasion resistant ceramic lined pipe elbow is mainly used in mining, thermal power, steel, cement, chemical industry, coal, lithium battery and construction machinery and other industries with severe wear and tear.
Our Products

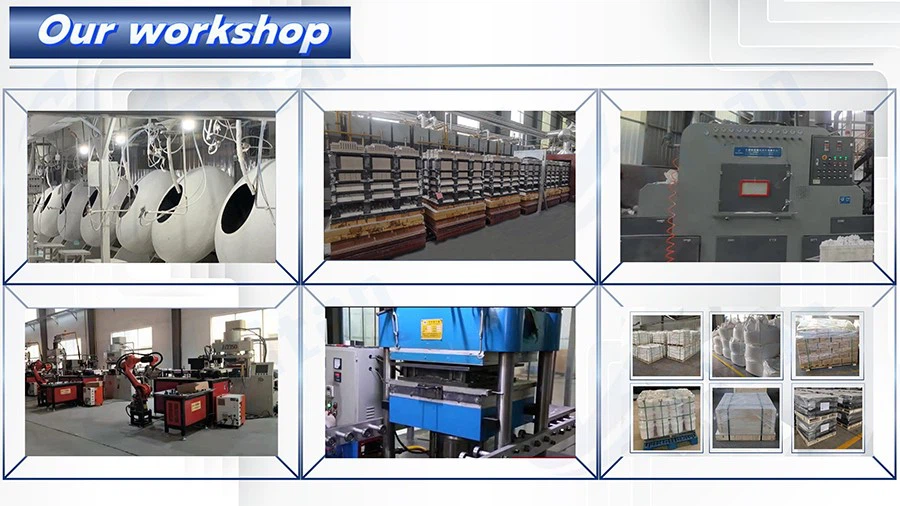

Our Workshop

FAQ
01.What materials are used in this ceramic-lined elbow?
02.What alumina grades are available?
03.Why is the ceramic lining suitable for powder conveying?
04.Can TITAN manufacture elbows according to customer drawings?
05.What is the operating temperature range?
06.What information is needed for a quotation?
Looking for an abrasion-resistant elbow for your lithium battery powder conveying system?
Contact TITAN with your required pipe diameter, elbow angle, bending radius, ceramic grade, quantity, and operating conditions. Send us your drawings or existing product photos for a more accurate assessment.
TITAN will help you review the requirements and provide a suitable product proposal and quotation.
