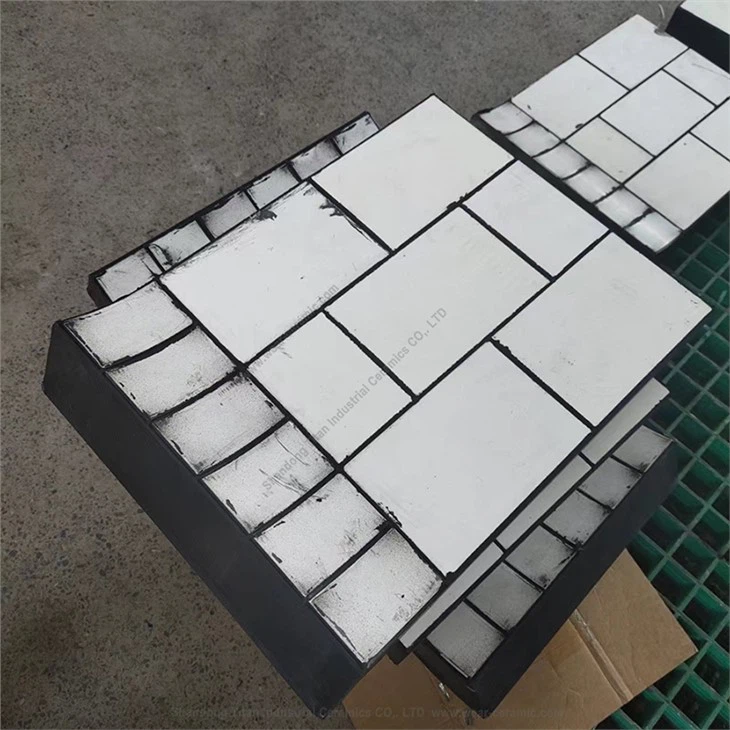

Rubber Backed Ceramic Wear Tile as Indutry Wear Liner
We know that we only thrive if we could guarantee our combined price tag competiveness and quality advantageous at the same time for Ceramic wear plates, chute liner material, wear resistant alumina ceramic. We frequently introduce advanced technology from abroad, actively responding to market demand. We insist on high quality and reasonable price. We will provide our best service to satisfy all your needs!
Product Introduction
92% 95%Alumina Abrasive Rubber Ceramic Composite Wear Plate is a kind of composite board which adopts advanced heat vulcanization process. Paste the ceramic rubber wear liner to the inner of the equipment can form a solid and strong anti-wear liner. The ceramic rubber wear liner combines the advantages of high hardness of ceramic and high cushioning capacity of rubber. The rubber not only has the good anti-wear and anti-corrosion effect, but also reduce the noise.
Common specifications
250 x 250mm, 300 x 300mm, 250 x 00mm, 500 x 500mm, etc.
Ceramic thickness: 4---50mm
Rubber thickness: 5---20mm
Steel plate thickness: 4---8mm
Advantage
The ceramic rubber composite liner combines the advantages of high hardness of ceramics and high cushioning and fatigue resistance of rubber, which can well solve the problem of equipment wear resistance during the transportation of bulk materials. The addition of rubber not only has good anti-wear and anti-corrosion effects, but also can prevent production stoppage and reduce noise due to material accumulation. It is also possible to directly vulcanize toughened wear-resistant ceramic sheets and special rubber on steel plates with countersunk bolts to form wear-resistant liners of various shapes, which are convenient for installation and replacement.
Chemical composition and physical properties
| Item | Rubber |
| Bulk density(g/cm3) | 1.4 |
| Tensile strength at break (Mpa) | ≥14 |
| Elongation at break (%) | ≥250 |
| Shore hardness(HA) | 48~65 |
| Adhesive between rubber & steel (Mpa) | ≥3.5 |
| Adhesive between rubber & ceramic (Mpa) | ≥3.5 |
Thermal conductivity (normal temperature) (W/M·k) | 2 |
| Aging period (years) | ≥1.5 |
| Series | BM92 | BMG95 |
| AL2O3(%) | 92±0.5 | 95±0.5 |
| Bending strength(Mpa) | ≥220 | ≥250 |
| Compressive strength(Mpa) | ≥1050 | ≥1300 |
| Fracture toughness (Mpam1/2) | ≥3.70 | ≥3.80 |
| Rockwell hardness(HRA) | ≥82 | ≥85 |
| Wear volume(g/cm3) | ≤0.5 | ≤0.2 |
| Bulk density(g/cm3) | ≥3.6 | ≥3.65 |
Application
Ceramic Rubber Wear Liner are widely used in the coal conveying and ash discharge systems of thermal power plants and the conveying, batching silos, hoppers, mixers, pelletizing discs and other equipment in the metallurgical and steel industry, effectively solving the problem of large material drop and strong impact , the material is bonded, which leads to the problem of low service life of the ingredient conveying system; at the same time, the ceramic rubber composite liner can be twisted and cut, and is suitable for the installation of various special-shaped equipment.
