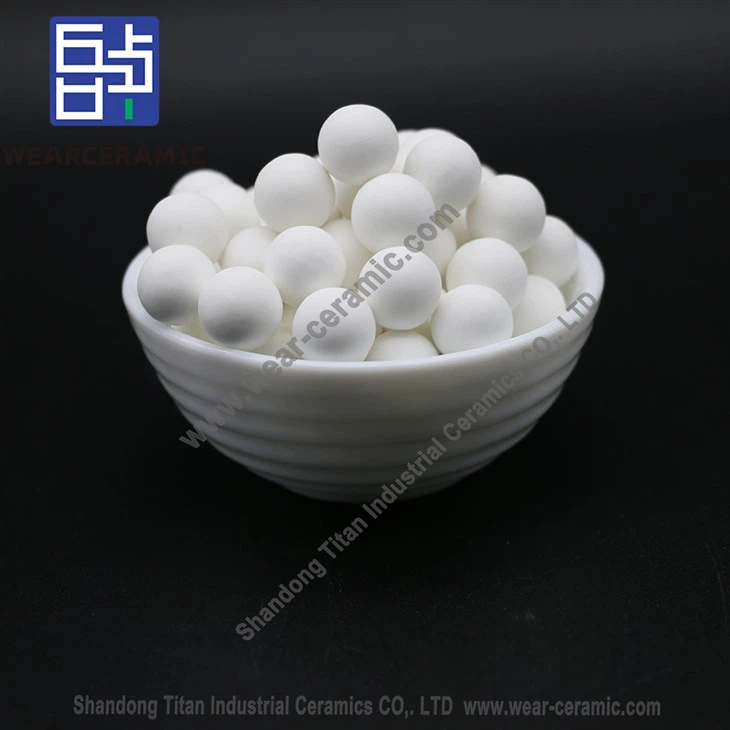

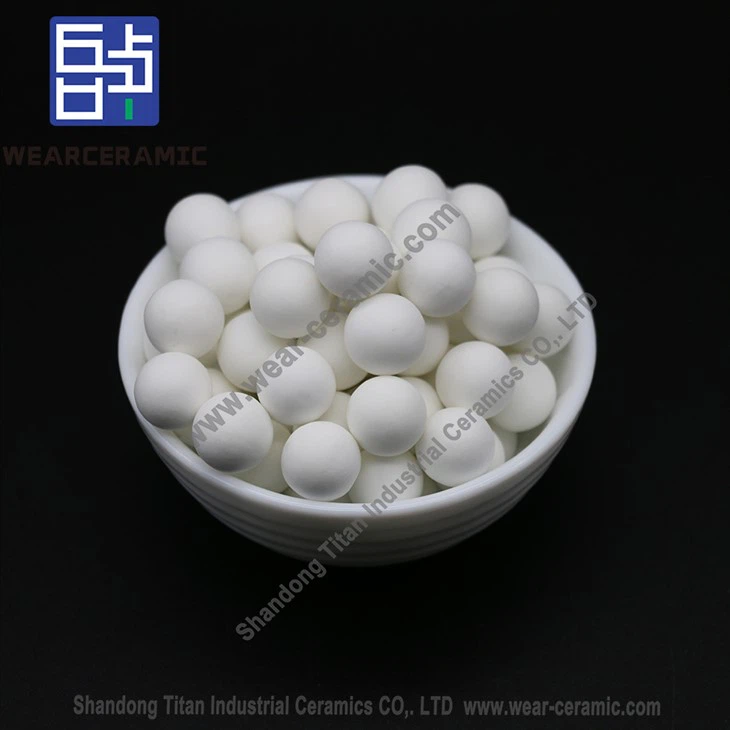

92% 95% Alumina Ceramic Grinding Beads
video

92% 95% Alumina Ceramic Grinding Beads

Titan Alumina Ceramic Beads are high-quality grinding media made from high-purity alumina powder. They feature low abrasion, high hardness, excellent corrosion resistance, and good impact resistance, ensuring reliable performance and a long service life. With their outstanding wear resistance and chemical stability, alumina ceramic beads help improve grinding efficiency, reduce media consumption, and minimize contamination during processing. Compared with conventional metal grinding media, they offer a cleaner grinding environment and lower maintenance costs. Titan Alumina Ceramic Beads are widely used in ball mills, stirred mills, and other grinding equipment for processing ceramics, minerals, pigments, and various industrial materials.
Send Inquiry
Product Introduction

Product introduction





Alumina ceramic beads are high-performance grinding media manufactured from high-purity alumina powder. With excellent hardness, high density, and outstanding wear resistance, they help improve grinding efficiency, shorten processing time, and optimize energy consumption.

Compared with conventional metal grinding media, alumina ceramic beads offer a lower wear rate, excellent corrosion resistance, and reduced risk of metallic contamination. They are widely used in ball mills, stirred mills, and other grinding equipment for processing ceramics, minerals, pigments, and industrial powders.

Titan provides high-quality alumina ceramic beads with consistent performance and strict quality control. Various alumina contents and bead sizes are available to meet different customer requirements.







Application Field



Alumina ceramic beads (Al₂O₃) are widely used as high-performance grinding media in ball mills, stirred mills, bead mills, flaking machines, polishing machines, and various other industrial grinding equipment.

Due to their high hardness, excellent abrasion resistance, chemical stability, and low wear characteristics, alumina ceramic beads are suitable for grinding, milling, mixing, and dispersing a wide range of materials. They help improve grinding efficiency, reduce media consumption, and minimize contamination during processing.

1. Industrial Ceramics

Used for grinding ceramic raw materials, ceramic powders, glazes, and mineral compounds to achieve uniform particle sizes and consistent product quality.

2. Paints, Inks, and Pigments

Suitable for grinding and dispersing pigments, dyes, and colorants, helping achieve fine particle sizes, uniform dispersion, and improved color consistency.

3. Mining and Mineral Processing

Applied in grinding ores, minerals, and other abrasive materials. Their excellent wear resistance helps reduce grinding media consumption and operating costs.

4. Electronic Ceramics

Used for fine grinding and dispersion of electronic ceramic powders and functional materials, where particle size control and low contamination are important.

5. Chemical

Advantages of Alumina Ceramic Beads



  1. High Grinding Efficiency: Excellent hardness and density help improve grinding performance and shorten processing time.
  2. Low Wear Rate: Outstanding abrasion resistance reduces media consumption and extends service life.
  3. Excellent Corrosion Resistance: Stable chemical properties make them suitable for various grinding environments.
  4. Good Impact Resistance: Strong mechanical properties help withstand repeated collisions during grinding.
  5. Reduced Contamination: Non-metallic grinding media minimize the risk of metallic contamination, helping maintain product purity.
  6. Lower Operating Costs: Long service life and reduced replacement frequency help lower maintenance and production costs.
  7. Wide Applications: Suitable for grinding and dispersing ceramics, minerals, pigments, electronic materials, and other industrial powders.

Chemical composition and physical properties





Series BMpro-50 BMpro-60 BMpro-70 BMpro-92
AL2O3(%) 50±0.5 60±0.5 70±0.5 92±0.5
Hardness(Mohs) 7 7 8 9
Bulk density               (g/cm3) ≥2.8 ≥2.8 ≥3.2 ≥3.6

Wearing rate

(g/kg·h)

≤2.5 ≤2.3 ≤2 ≤1.6
Dimension(mm) φ1-10 φ1-10 φ0.5-10 φ0.5-20





Series BMpro-92S BMpro-95 BMpro-92M BMpro-95M
AL2O3(%) 90±0.5 95±0.5 90±0.5 95±0.5
Harndess(Mohs) 9 9 9 9
Bulk density     (g/cm3) ≥3.7 ≥3.7 ≥3.7 ≥3.7
Wearing  rate         (g/kg·h) ≤1.3 ≤1.3 ≤0.8 ≤0.6
Dimension(mm) φ0.5-20 φ0.5-20 φ0.5-20 φ0.5-20






product-900-506





FAQ



Q: What is your terms of delivery?

A: FOB,CFR, CIF

Q: How can I get a quick quotation?

A: Please kindly send us more details about your requirements.

Q: How long is your delivery time?

A: 7-20days working days after all information is confirmed (according to different products).

Q: Do you inspect the finished products?

A: Yes, each step of production and finished products will be came out inspection by QC department before shipping.

Q: What services can we provide?

A: Accept customized according to your requirements. No strict require on the MOQ, accept small order.

Q: Can I get best price from you?

A: Of course. We don't chase excessive profits and always try to give best offer. if you are good at bargaining. you can also enjoy fun of bargaining. Just don't make it too hard!

Q: Are you a manufacturer?

A:    Yes, we are. We have own factory, receive custom-made.
