Ceramic Balls For Ball Mill
Product introduction:

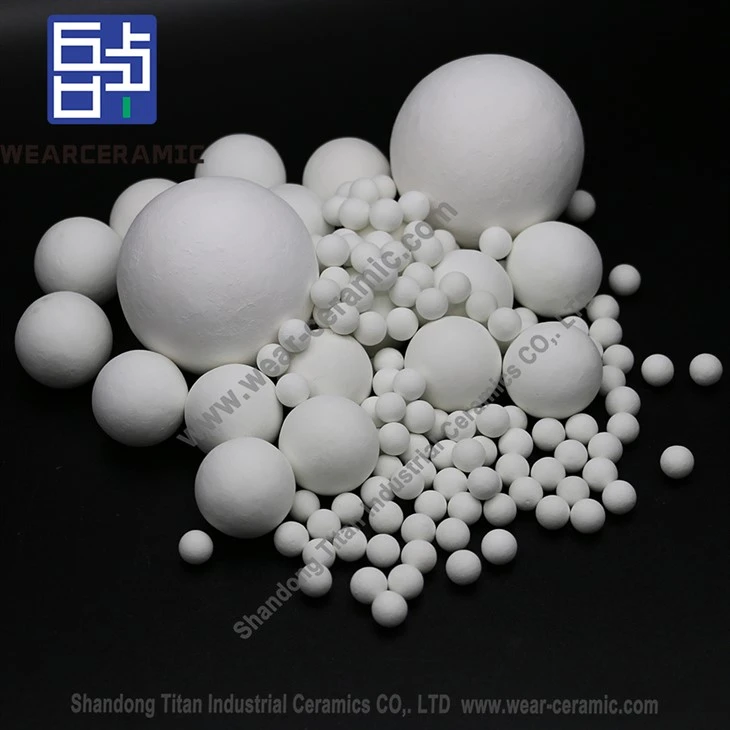

Ceramic balls for ball mill are used in milling or grinding processes to crush, grind and mill various materials of different industries. Ceramic balls for ball mill is widely used in mineral, ceramics, electronic materials, magnetic steep materials and coating, paint and other industries grinding and processing of raw materials is a kind of high quality grinding media in building Tao porcelain industry.
Titan can provide all kinds of balls applied to the ball mill, and ball milling media with the package size ranging from kg and tons.
Alumina ceramic ball is made of the blank body which is fired at high temperature and is made of the particles, so the sintering of the ceramic is not only the sintering behavior between the particles. Titan ceramic balls studied this problem. Improve the quality of the balls.
Chemical Composition and Physical Properties:
| Series | Chemical composition | Bulk density(g/cm3) | Vickers hardness(GPa) | Self wearing rate(g/kg.h) | Pot mill wearing rate(‰/h) | Crushing strength(Φ3.0) | Roundness | ||
| TA28 | Al2O3≥60% | SiO2≤35% | Others≤5% | ≥2.90 | ≥7 | ≤1.5 | ≤0.05 | ≥600N | ≥96% |
| TA32 | AL2O3≥72% | SiO2≤23% | Others≤5% | ≥3.20 | ≥7.5 | ≤1.5 | ≤0.05 | ≥800N | ≥96% |
| TA36 | AL2O3≥92% | SiO2≤5% | Others≤3% | ≥3.60 | ≥11 | ≤1.3 | ≤0.03 | ≥1200N | ≥96% |
| TA37 | AL2O3≥92% | SiO2≤5% | Others≤3% | ≥3.70 | ≥12 | ≤0.9 | ≤0.015 | ≥1400N | ≥96% |
| TA99 | Al2O3≥99% | Others≤0.5% | ≥3.85 | ≥14 | ≥1000N | ||||
Grinding machinery
Application
Production process
FAQ
Q1:What are the factors that cause grinding ball wear?
A:1.Choice of ball hardness
2.Selection of grinding ball material
3.Temperature difference between solvent and air
4.Selection of particle size of grinding ball
Summary: The more the size of the grinding ball is the same, the more you can reduce the wear rate.
Q2:What is the size in your products?
A: Our common size is 0.5mm-90mm. We can also produce according to your request.
Q3:What is the delivery time?
A: If we have stock, the delivery time is within 5-7days after order confirmed. If there is no stock, it is usually 15- 20days.
