Inert Ceramic Balls For Methanol Plants
Product Code: BMTL80/92/95/99
Alumina Content: 80% / 92% / 95% / 99%
Density: 2.5-2.8 / ≥2.8 / ≥3.1 / 3.3-3.7
Product Color: White
Certifified: ISO 9001
Diameter: 3mm 6mm 8mm 10mm 13mm 19mm 25mm 50mm
Introduction
No matter the diameter size, alumina packing ball is rolled into a ball and has a rough surface. The major function of an alumina packing ball is to improve the gas or liquid distribution point, support, and protect the active catalyst, which has a low strength, in the reactor. It can endure temperature variations in the manufacturing process. Alumina packing ball is mostly used as proppant, thus when considering technical indicators, it will be important to consider compressive strength, water absorption, tolerance size, temperature resistance to abrupt changes, etc.
Specifications
|
Index |
BMTL80 |
BMTL92 |
BMTL95 |
BMTL99 |
|
Alumina Content (%) |
≥80 |
≥92 |
≥95 |
≥99 |
|
Water absorption (%) |
≤5 |
≤5 |
≤5 |
≤5 |
|
Density (g/cm3) |
2.5-2.8 |
≥2.8 |
≥3.1 |
3.3-3.7 |
|
Diameter (mm) |
3mm 6mm 8mm 10mm 13mm 19mm 25mm 50mm |
|||
Features
Inert ceramic ball has high strength, high chemical stability and thermal stability, can ensure do not damage and do not release volatile components under high temperature and high pressure conditions , and non-porous and high bulk density.
Other Application
Alumina packing ball is the catalyst in the reactor, molecular sieve, desiccant and other supporting covering material and tower packing. Its function is to support and protect the active catalyst with low strength by increasing the gas or liquid distribution point.
Alumina packing balls are often used as bottom filling materials in petrochemical plants, chemical fibre plants, alkyl benzene, vinyl plants, natural gas plants and other hydrogenation refining devices, catalytic reforming devices, isomerization devices, demethylation devices

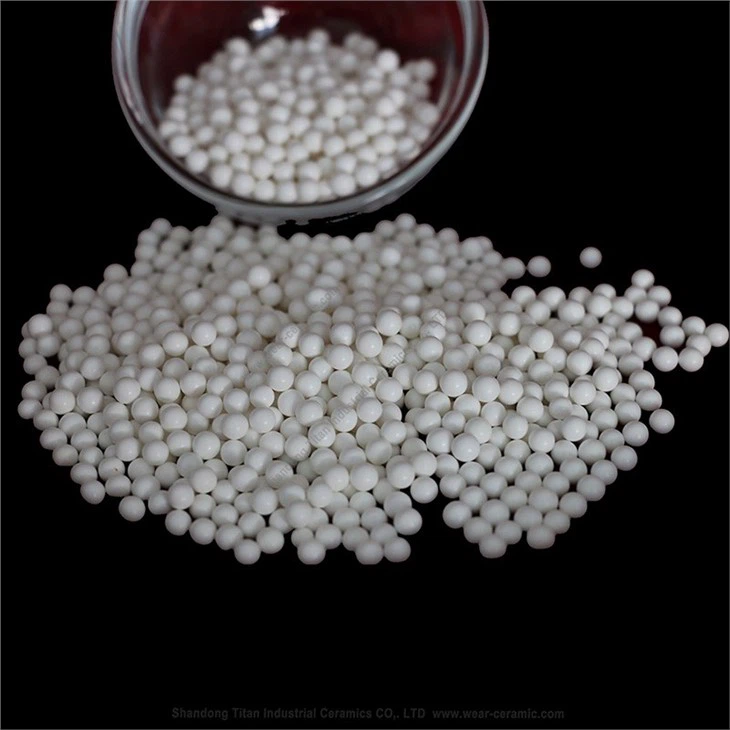

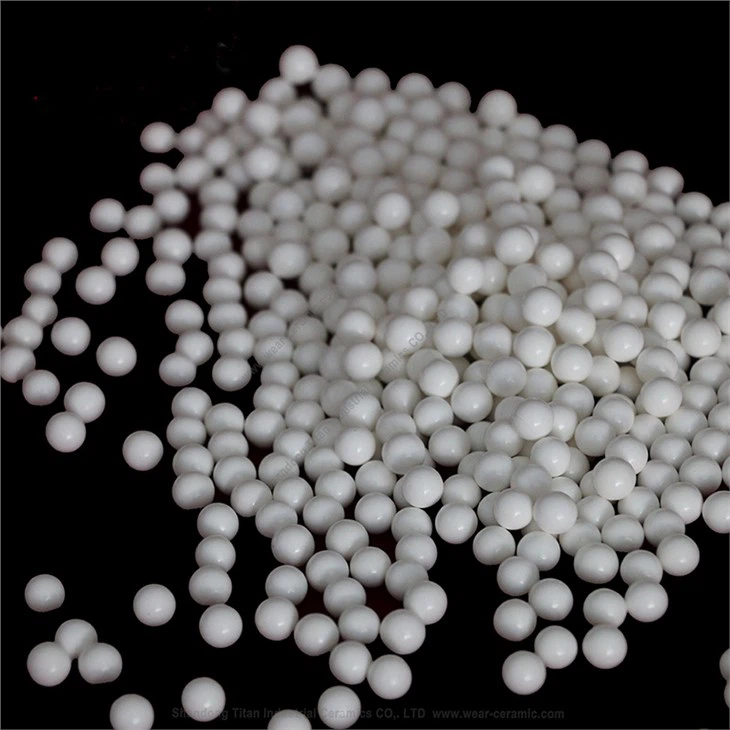

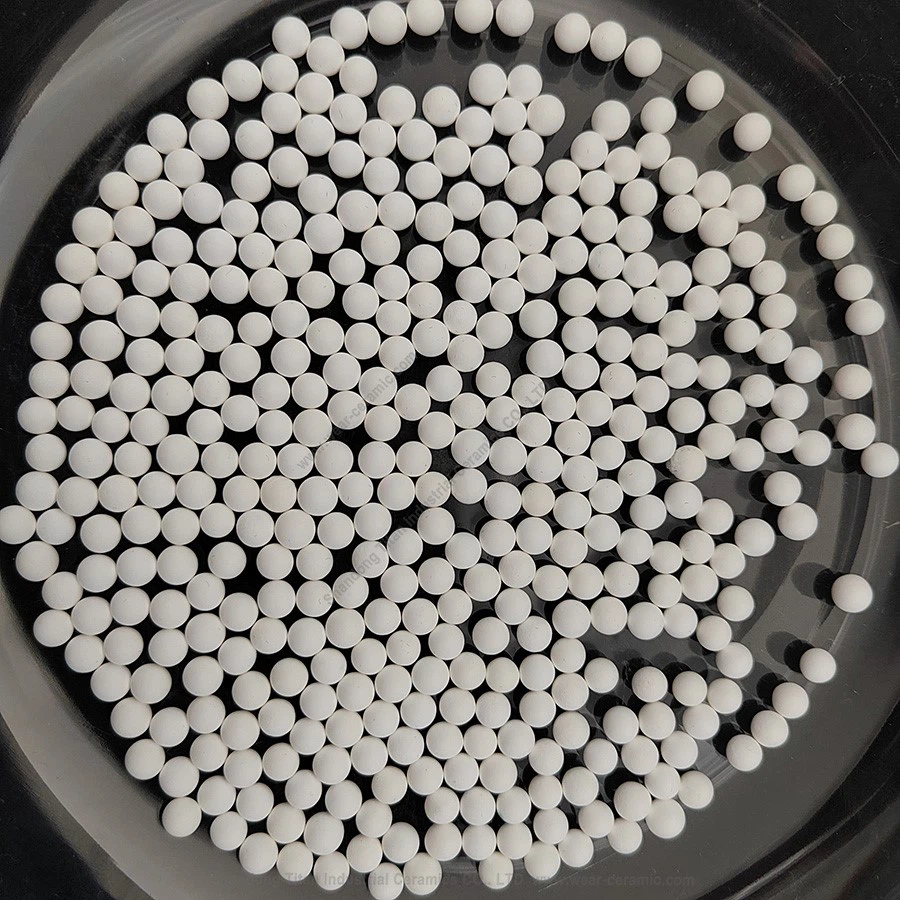

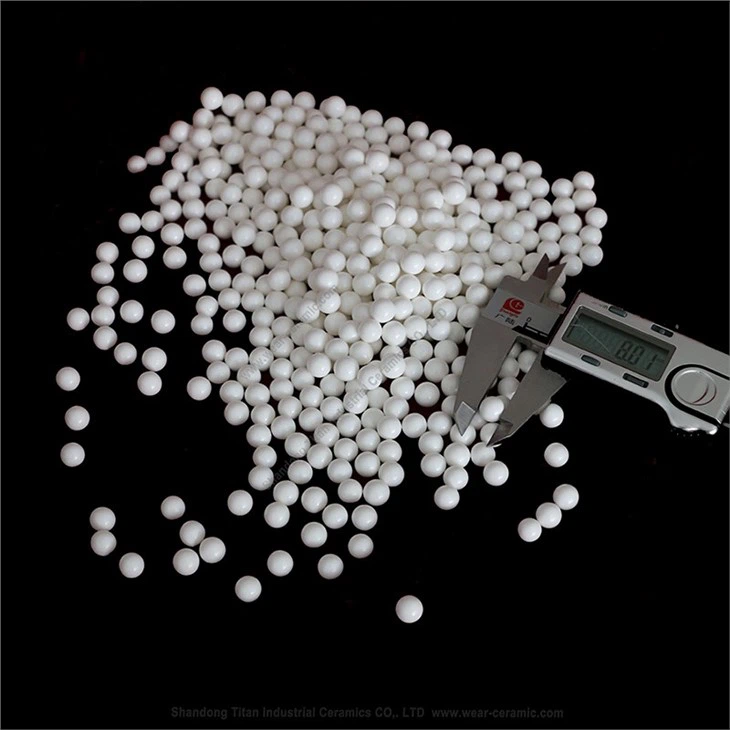

Product Photo

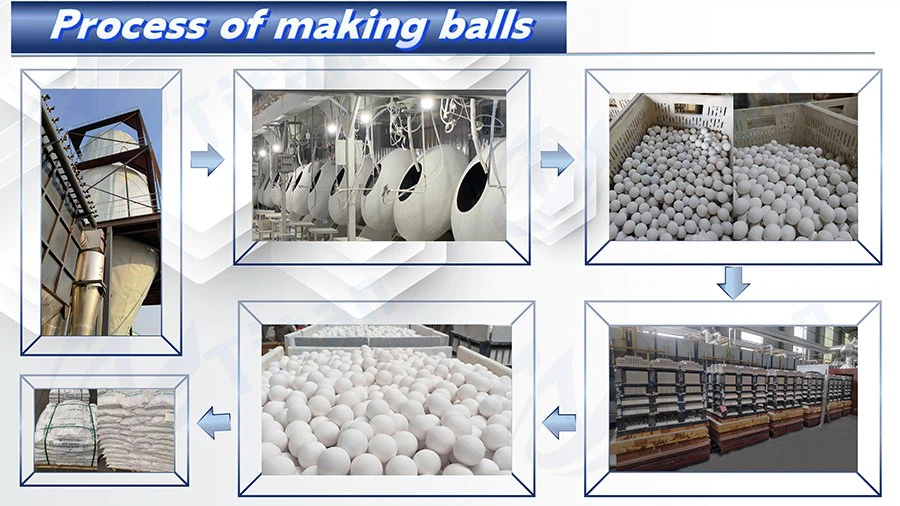

Factory Photo
QA
Q: Are you a trading company or manufacturer?
A: We are a manufacturer. We have alumina ceramic ball / brick / tile / lining, zirconium ball / brick / lining, cerium zieconia ball, rubber ceramic composite plate and so on.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. It is 7-15 days if the goods are not in stock.
Q: Customized available?
A: Yes. Our ball has many size, please send us your detailed requirements, then we will provide you a satisfied solution.
