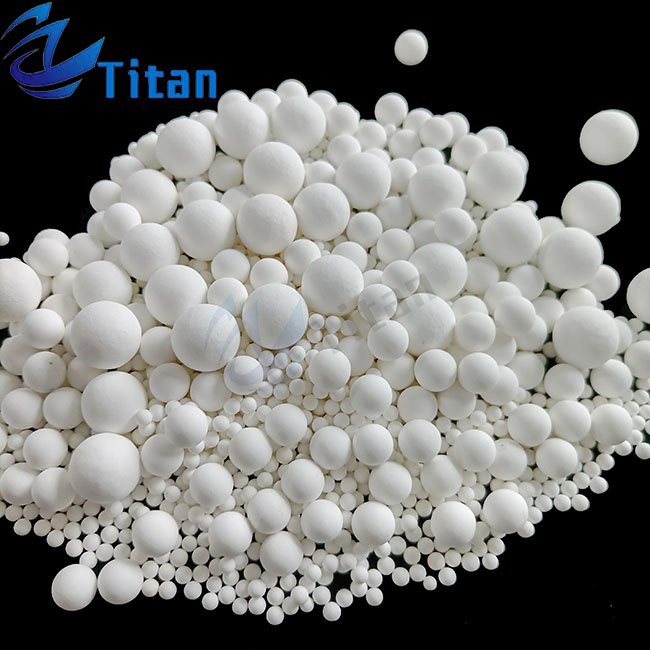

Inert Ceramic Ball For Catalyst

Details

Inert Ceramic Ball For Catalyst is processed from high-quality chemical clay raw materials.

1 Technical indicators : water absorption ≤5% acid resistance ≥98% alkali resistance ≥80~95% heat resistance temperature ≥1300~1700℃

2. Chemical composition : feldspar containing Al2O3: 20-30%; feldspar-mullite containing Al2O3: 30-45%; mullite containing Al2O3: 45-70%; mullite containing Al2O3: 45-70% Stone-corundum containing Al2O3: 70-90%; corundum containing Al2O3≥90%; Al2O3+SiO2≥90%; Fe2O3≤1%.

3. Implementation Standard of Inert Alumina Porcelain Balls People's Republic of China Chemical Industry Standard HG/T 3683.1 - 2000 "Industrial Porcelain Balls - Inert Porcelain Balls"

4. Size: 3mm, 6mm, 8mm, 10mm, 12mm, 13mm, 15mm, 20mm, 25mm, 40mm, 50mm, 60mm

Advantages

 High strength, high chemical stability and thermal stability.

Resistant to high temperature, high pressure and corrosion of acid, alkali, salt and various organic solvents.

Production process of Inert Ceramic Ball For Catalyst

1. Formulate the formula according to the requirements of water absorption, aluminum content, strength, etc., and then ball mill;

2. After the filter press and vacuum mechanism, the mud strips for the production of inert ceramic balls are produced (during the period, the moisture must be ensured);

3. Carry out accurate mud strip cutting (the size of the mud strip is equivalent to the specification of the inert ceramic ball to be produced), and select the extrusion forming process to accurately form it;

4. The semi-finished products of the inert ceramic balls are put into the kiln after entering the drying room or naturally dried in the shade;

5. High temperature sintering of semi-finished inert ceramic balls;

6. Screen and package the finished products of inert alumina ceramic balls.

Technical Data

The production process

FAQ

1:Could you produce the product as customized a?

 Yes, we can do it

2:What is your packing way ?

alumina ball is 25kgs/bag, ziconia beads is 25kg/barrel , ceramic tiles is carton  or upon your requirement

3:Certification ISO

4: MOQ 500KGS  or negotiate.

5:Production time 5-7 days, customized items will need 15-30days.
