25mm High Alumina Storage Heat Ball
Product Material: Alumina ceramic
Al2O3 : 99%
Bulk density(g/cm3) : >= 3.4
water absorption (%): <=3
Shock resistance : Good
Product Size: 3mm 6mm 8mm 10mm 13mm 19mm 25mm
Product Color: White
Certifified: ISO 9001
Customized: Availiable
Details
25mm high alumina storage heat ball: a ceramic product made of α-alumina as the basic raw material, rolled or pressed, and sintered at high temperature.
High-aluminum heat storage balls are also called spherical heat storage bodies. The spherical heat storage bodies have the advantages of good thermal shock stability, large heat storage, high strength, easy cleaning, and reusability.
Advantage
The heat storage ball has the remarkable characteristics of low reburning line shrinkage, high softening temperature under high temperature load, corrosion resistance, high strength, large heat storage and release, good thermal shock stability, good thermal conductivity, and small thermal expansion coefficient.
Through double preheating of gas (blast furnace, converter) and air (for oil, high calorific value gas, etc., the combustion-supporting air single regenerative method is adopted), the regenerative heating furnace can achieve a reduction of 20-50% in the amount of smoke exhausted, and When the temperature is reduced to less than 150 degrees, the output is increased by 15-20%, the heating time of the billet is shortened by 50%, and the oxidation burning loss is reduced by 30-50%.
The production process
1.Selection and classification of bauxite clinker Selecting raw materials that meet the requirements is a prerequisite for producing qualified products. High-alumina clinker is the main raw material for the production of high-alumina heat storage balls.
2. Co-fine grinding of clinker and bonded clay
Part of the bauxite clinker and bonded clay are mixed and finely ground together, which is an important measure in the production of high-alumina heat storage balls.
3. Firing
The firing temperature of the high alumina refractory ball mainly depends on the sintering characteristics of the bauxite clinker.
Application
High-alumina heat storage balls are used in petroleum, chemical and other industries, such as tower packing balls, catalyst carriers, petrochemical plants, chemical fiber equipment, alkyl benzene, ethylene plants, natural gas plants and other hydrorefining plants. Catalytic reforming units, isomerization units and demethylation units are ideal fillers for chemical, metallurgical, natural gas, petroleum and other industries.
Technical Data
Series | BMTL99 |
AL2O3 (%) | ≥99 |
Water absorption(%) | ≤5 |
Bulk density(g/cm3) | 3.3-3.7 |
Shock resistance (%) | Good |
Dimension(mm) | 3mm 6mm 8mm 10mm 13mm 19mm 25mm |

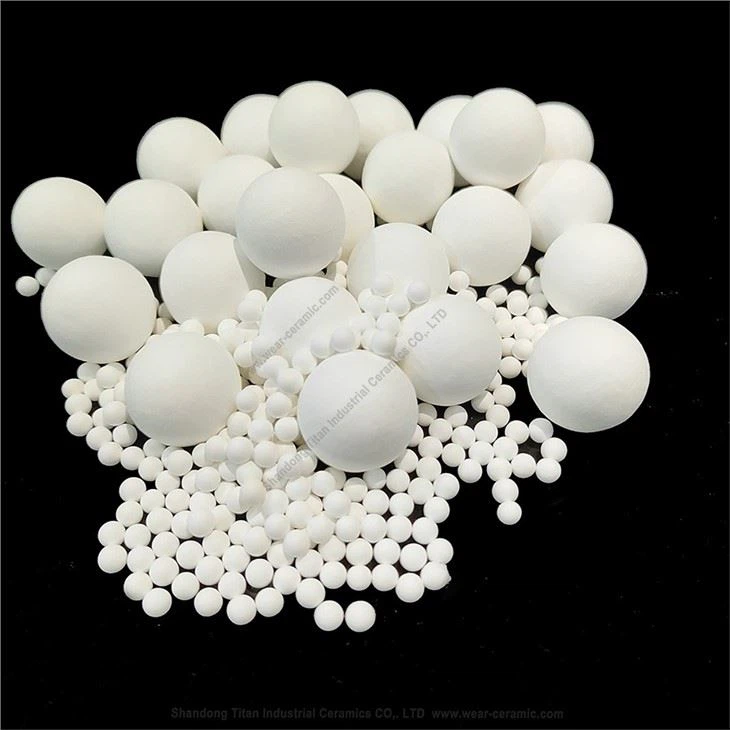

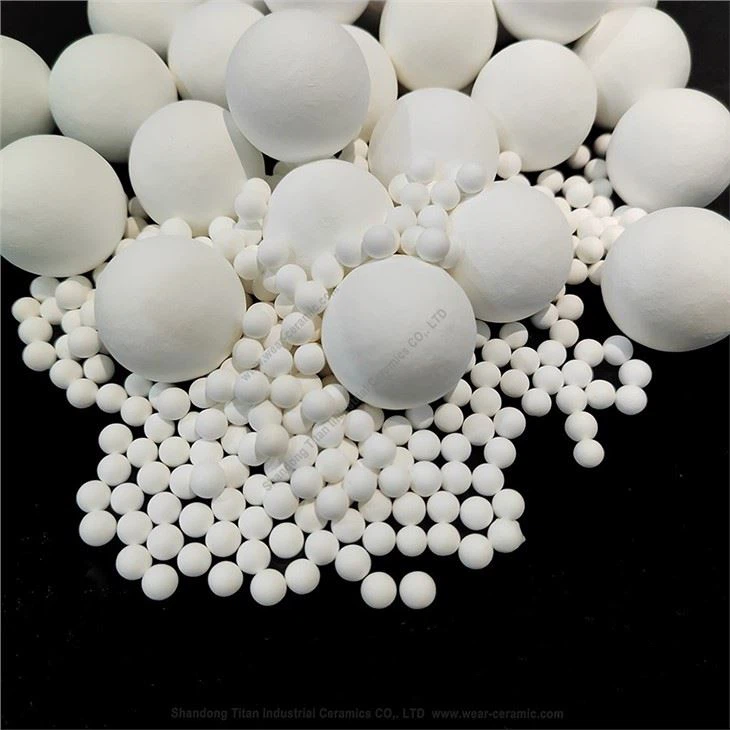

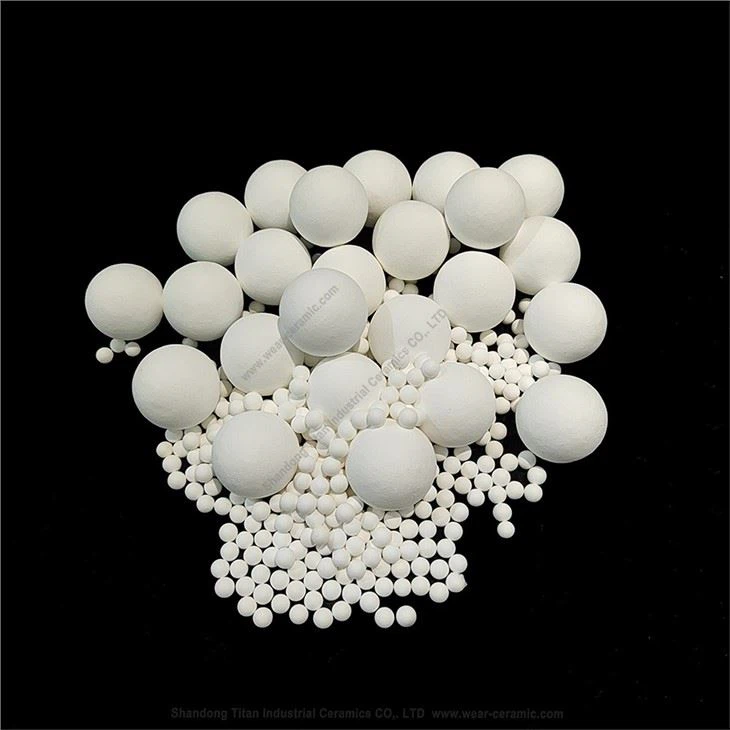

Product picture
The production process
FAQ
1:Could you produce the product as customized ?
Yes, we can do it
2:What is your packing way ?
alumina ball is 25kgs/bag, ziconia beads is 25kg/barrel , ceramic tiles is carton or upon your requirement
3:Certification
ISO
4: MOQ
500KGS or negotiate.
5:Production time
5-7 days, customized items will need 15-30days.
