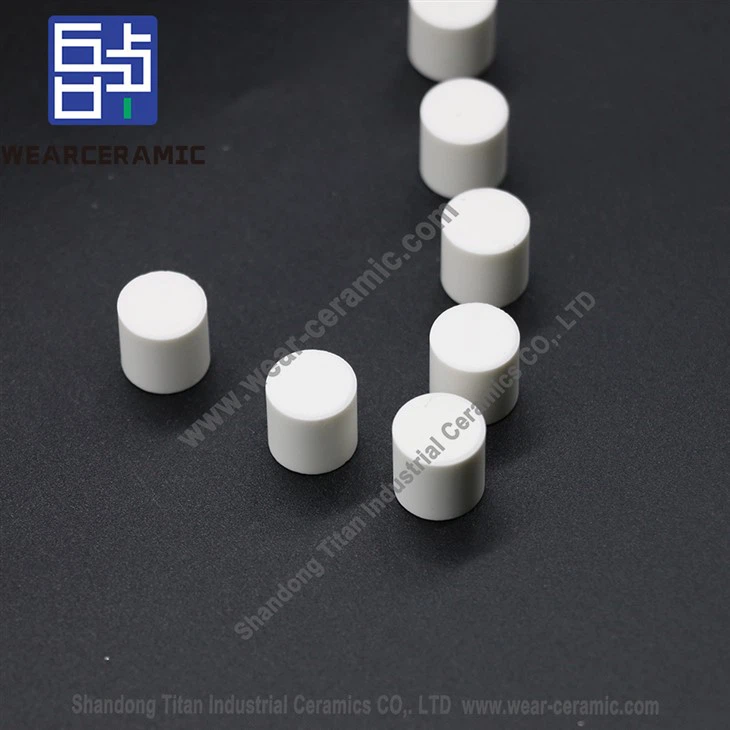

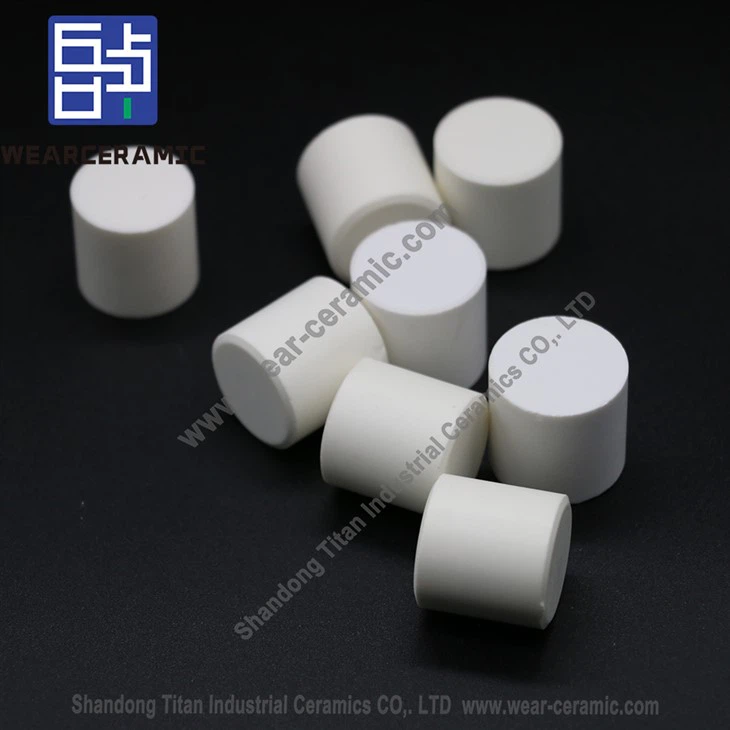

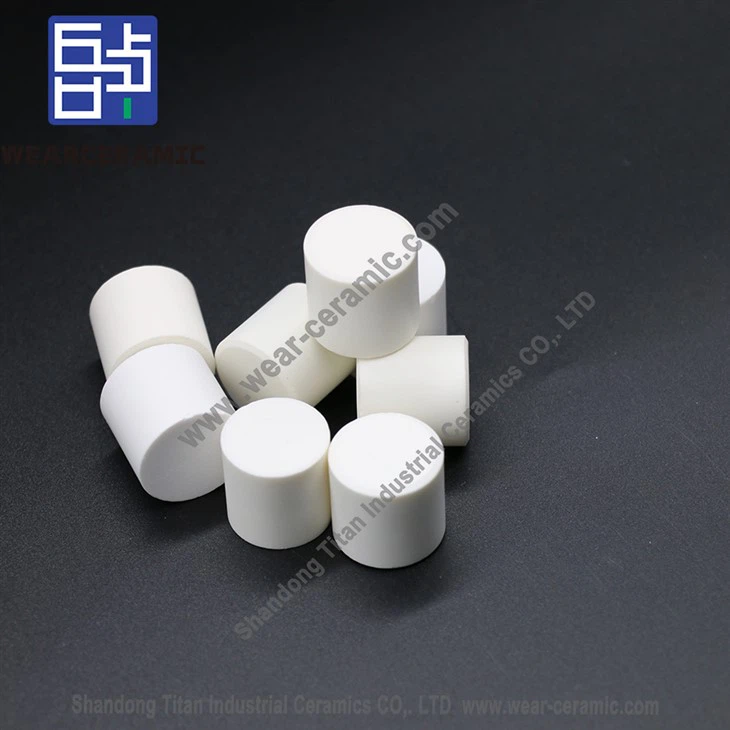

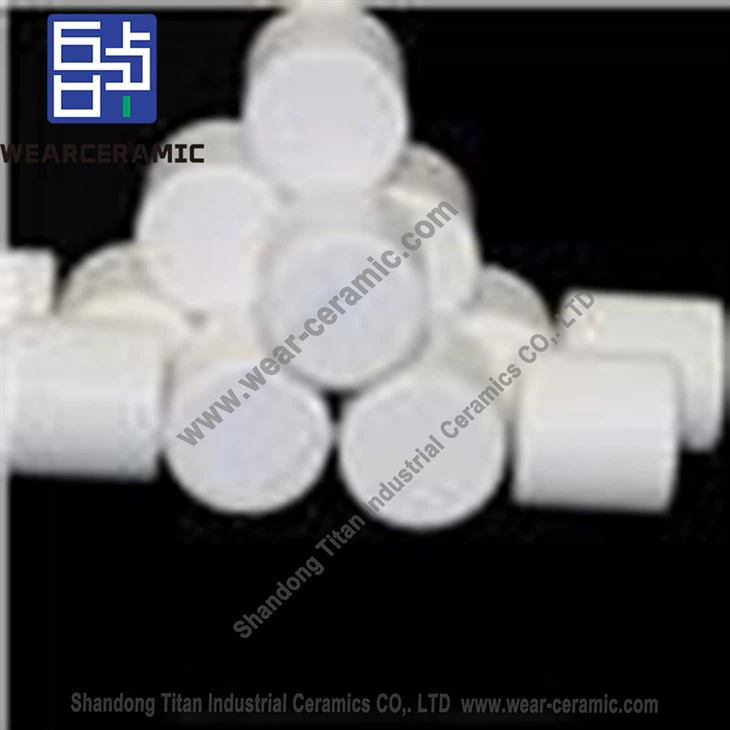

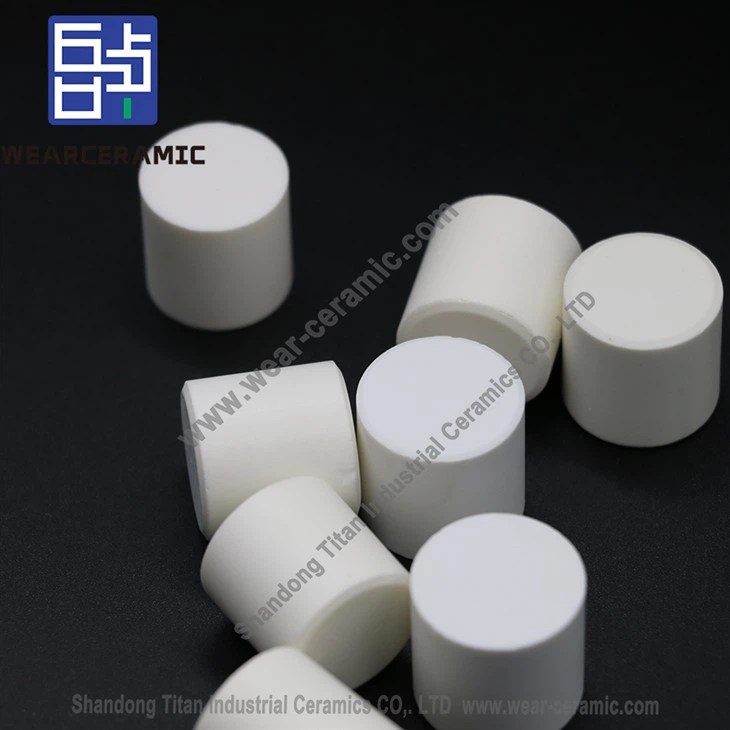

92 95 Alumina ceramic cylinder
Product Material:Ceramic
Product Size: Ø20 Ø25 Ø30 Ø35 Ø40 Ø50
Product Color:white
Certificate:ISO9001 Customized: available
Product Packaging:carton /as requirements
Alumina Content: ≥92
Description
Alumina ceramic cylinder is non-metallic grinding media widely used in industrial grinding. It has many physical and chemical advantages different from metal grinding media.Alumina grinding cylinder is made of high purity alumina powder by isostatic pressing and high temperature sintering.
Why choose our cylinder?
High aluminum ceramic cylinder have the characteristics of high strength, high hardness, high wear resistance, high temperature resistance, corrosion resistance, large specific gravity and small volume. It is a neutral material, a water-insoluble solid, commonly used as a wear-resistant abrasive. The use of abrasives is mainly focused on wear. Compressive strength, bulk density. Filling of wear-resistant materials can be used in fine grinding equipment
Application
1.Glass grinding, first of all, the hardness of glass is very high, and the processing capacity of ordinary grinding media is limited. The mixing of excessive impurities will greatly reduce the quality of glass, resulting in poor quality of finished glass and inability to make high-quality products. Alumina grinding balls can solve this problem very well.
When grinding in time, the hardness is also very high in time. In particular, high white quartz has high requirements for whiteness, and the color of alumina is just white, which solves the grinding problem of high white quartz from many aspects.
2.Lithium battery grinding is an emerging sunrise industry, and alumina grinding cylinders can demonstrate their powerful strength through their own materials. We know that lithium battery materials are very sensitive to iron, so metal grinding cannot be used inside.
3.Characteristics and applications of alumina cylinders. Now the ceramic industry is a popular industry developed in recent years. Alumina ceramic cylinders are characterized by low wear, low thermal conductivity and density. Therefore, it has good performance in the second-stage grinding of water mill. Especially in terms of energy saving and consumption reduction and product quality improvement.
Specification
|
Series |
BMYMZ92 |
BMYMZ95 |
|
AL2O3 (%) |
92±0.5 |
95±0.5 |
|
Hardness(Mohs) |
9 |
9 |
|
Bulk density(g/cm3) |
≥3.6 |
≥3.7 |
|
Self wearing rate (%) |
≤0.15 |
≤0.1 |
|
Series |
Size (mm) |
|
Cylindrical |
φ12*12 φ15*15 φ23*23 φ20*10 φ20*20 φ25*20 φ25*25 φ30*30 φ32*32 φ40*40 φ50*50 φ60*60 |
|
Half-cylindrical |
φ20*10 20*20 φ20*25 φ30*30 φ40*40 |
|
Conical cylinder |
φ50/45*50 φ33/28*17 φ32/28*32 φ33/28*33 |
|
Grooved cylinder |
φ31*31 |
|

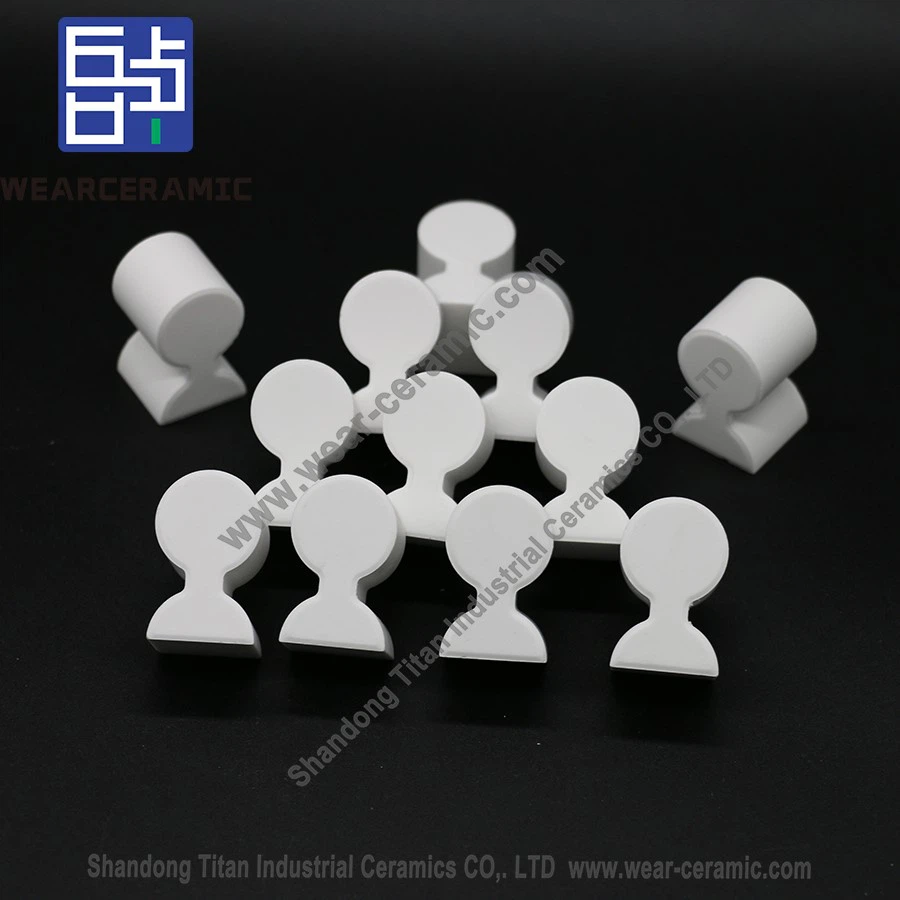

Connected column |
φ20*20 |

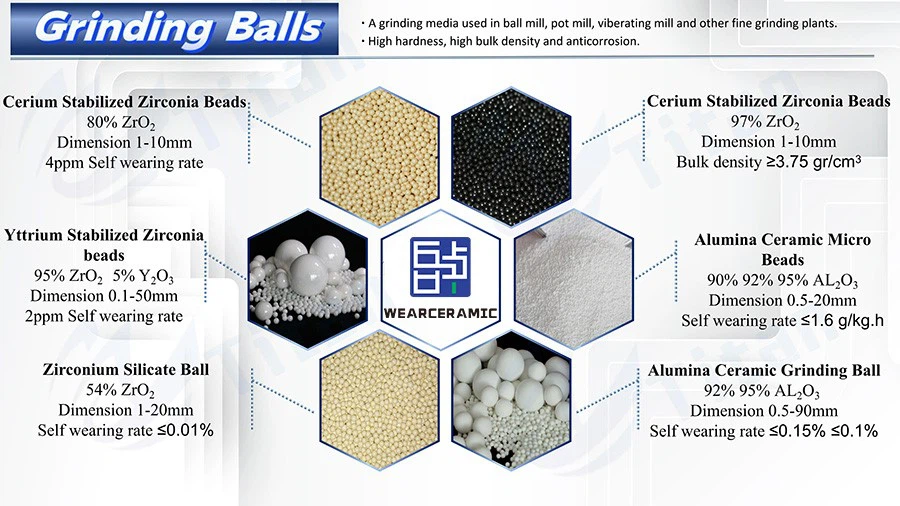

Our grinding media

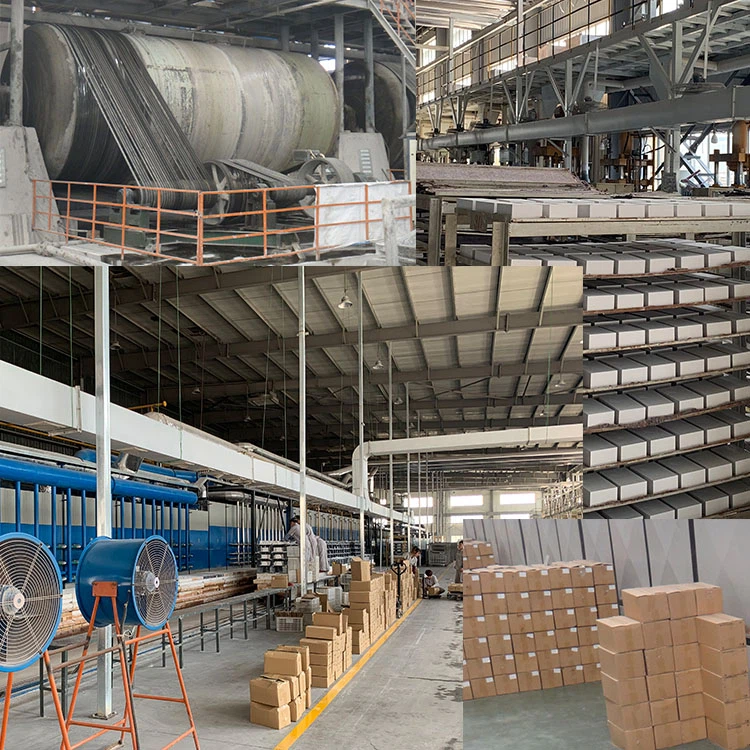

The production process
FAQ
Q: Are you a trading company or manufacturer?
A: We are a manufacturer.
Q: Is the sample free?
A: Yes, we offer free samples within 100g.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. It is 7-15 days if the goods are not in stock.
Q: What are your terms of payment?
A: 30% T/T deposit , balance against the BL copy.
Q: Customized available?
A: Yes. Please kindly send the details information.
