Ceramic Adhesive Bonding For Alumina Tiles And Steel
Product Color:white and light yellow
Certificate:ISO9001 Product Packaging: barrel
Density（g/cm3) :1.28 1.66-1.7
Weight ratio (A:B)：4：1 1：1
Volume ratio (A:B)：4：1 1：1
operation time (200g mixing ,min)
Full curing time (h):24
Tensile strength(MPa)GB/T6329-1996 :65
Shear strength(MPa)GB/T7124-2008 :>=10
Working temperature(℃):-60-150
Description
Ceramic Adhesive Bonding For Alumina Tiles And Steel is a two-component fast curing transparent epoxy resin adhesive, which can be cured at low temperature or normal temperature, and has a fast curing speed; after curing, it has high bonding strength, good hardness and certain toughness.
Feature
1 The adhesive force at the beginning is very strong, and no additional support is needed during the construction process, and there will be no shedding. The construction method is better improved, and the required cost is effectively saved.
2 Strong initial adhesion, no magnets or other support measures are used during construction, and it will not fall off, which optimizes the construction process and reduces the construction cost.
Application
1 Wear-resistant ceramic glue is used to paste wear-resistant ceramic sheets on the top surface and facade of the equipment.
2 Wear-resistant ceramic glue is suitable for medium-speed coal mill cones, coarse powder separators, powder exhaust fans, coal powder pipes and other equipment that are scoured by ash powder and steel, cement, chemical and other industries that are strongly scoured or eroded by materials Wear-resistant equipment is pasted with wear-resistant ceramic sheets.
3 Wear-resistant ceramic glue is mainly used for the pasting of wear-resistant ceramic sheets on the ceiling and facade of the equipment.
Technical specification
Series | BM1041 | BM1011 | BM1411 |
Color | White | Light yellow | Grey/White |
Density (g/cm3) | 1.28 | 1.66-1.7 | 1.48-1.52 |
Weight ratio(A:B) | 4:1 | 1:1 | 4:1 |
Volume ratio(A:B) | 4:1 | 1:1 | 4:1 |
Operation time | 30 | 30 | 30 |
Full curing time(h) | 24 | 24 | 24 |
Tensile strength(MPa) | 65.0 | 65.0 | 35.0 |
Shear strength(MPa) | ≥10 | ≥10 | ≥18 |
Working temperature(℃) | -60-150 | -60-150 | -60-200 |
Expiration date(years) | 2 | 2 | 2 |

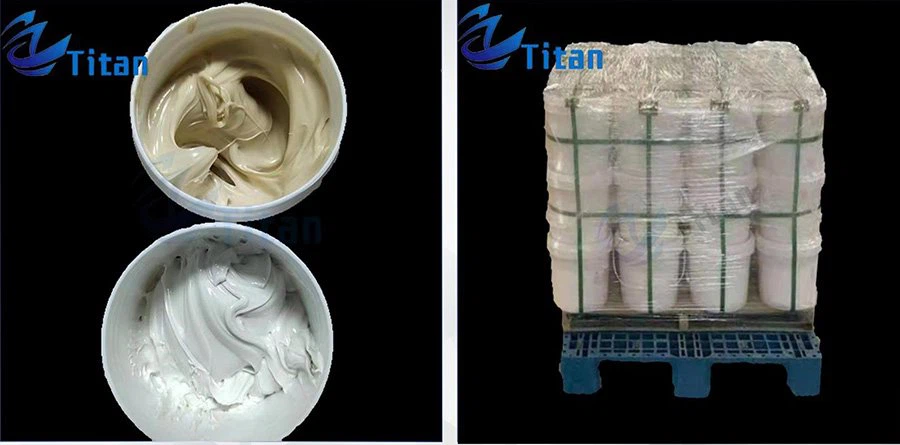

Product Picture
FAQ
1.How can we guarantee quality?
We have QC during production, provide mass production samples , accept third party inspection if nessary.
2. What is your Delivery Terms?
FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery.
3.What can you buy from us?
Alumina grinding media , zirocnia grinding media ,SS pipe with ceramic liner inside, ceraic composite plate, cyclones , Rubber coated roller ,ceramic adhensive etc.
4. What payment term can we do?
T/T, L/C at sight.
5. What services can we provide?
Accept customized according to your requirements. No strict require on the MOQ, accept small order
