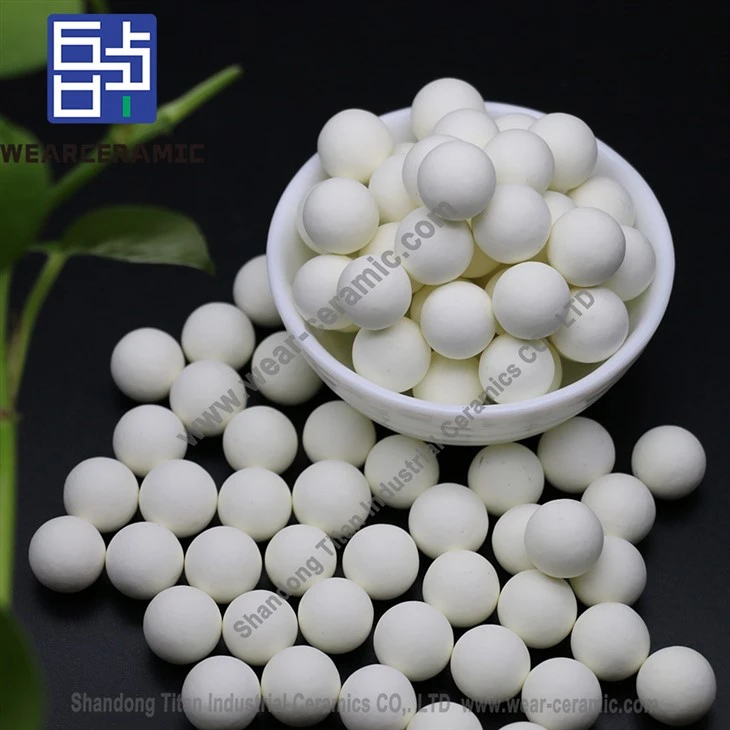

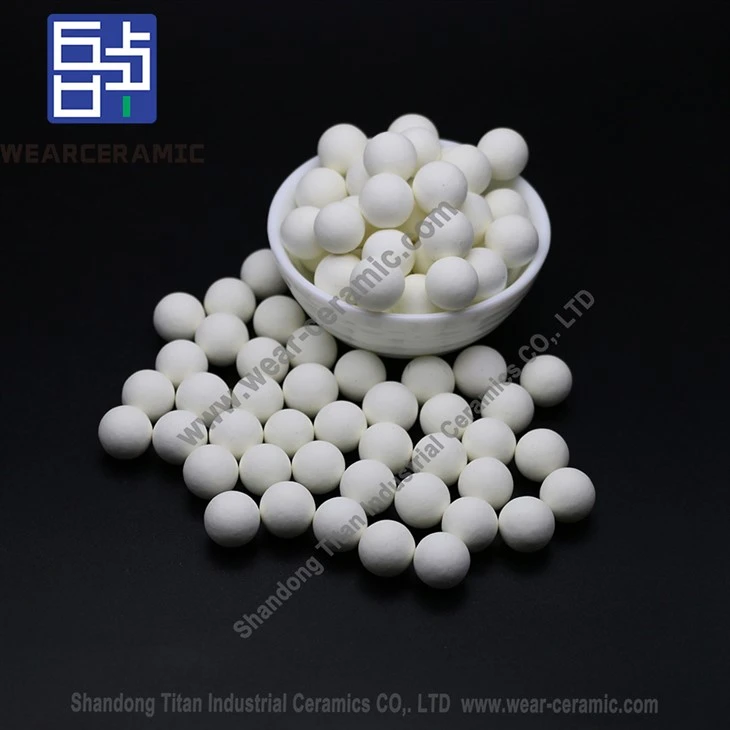

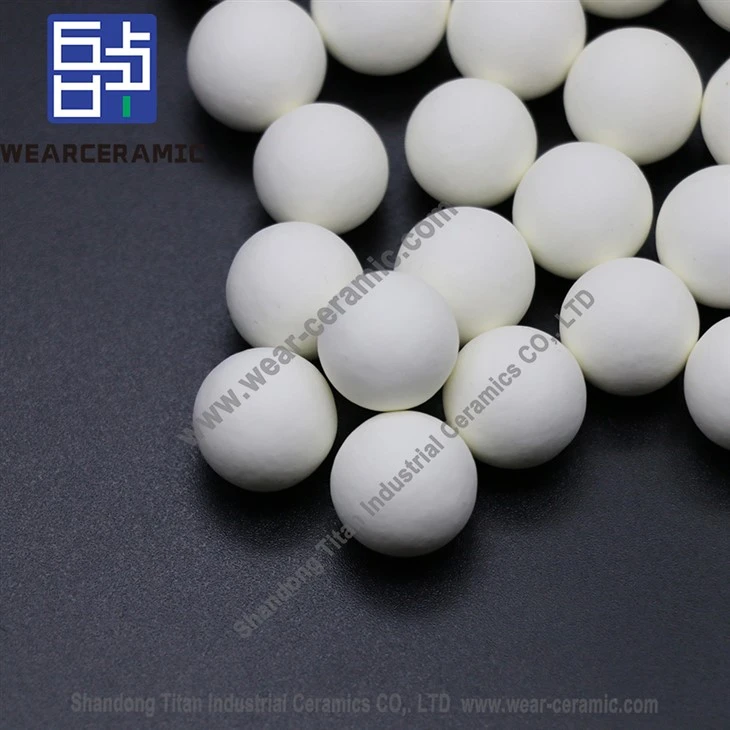

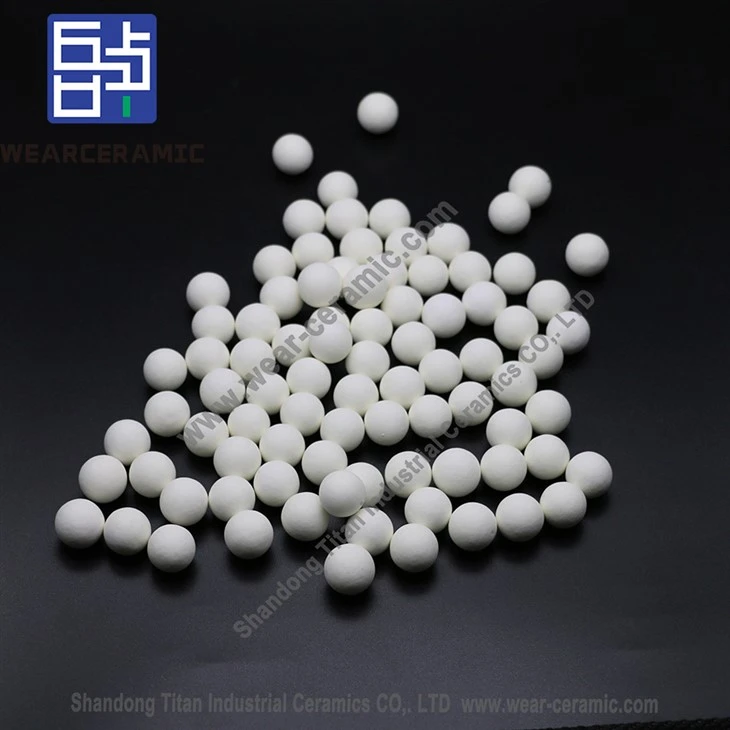

Zirconia Media Bead ZTA Beads
Product Details
Zirconia Media Bead ZTA Beads products uniform, stable, compact crystal phase, high hardness, strong impact resistance, wear resistance and pure zirconia beads close, especially suitable for high viscosity, high hardness of material dispersion and grinding. At the same time, it can also match the vertical sand mill with high energy input and high shear force, and the horizontal sand mill with high speed.
Properties
1.High strength and toughness in high speed impact without broken beads.
2.Good sphericity and smooth surface.
3.These Zirconia Media Bead ZTA Beads have ultra-low wear, wear resistance is 30-50 times of glass beads, 5 times of zirconium silicate beads, 6-8 times of alumina beads.
4.High density, high grinding efficiency.
Application
Zirconia Media Bead ZTA Beads are mainly used in grinding and dispersing of dry electronic ceramics, magnetic materials, aluminum oxide powder, quartz, zirconium silicate, titanium dioxide and other high purity ceramic materials, as well as food, cosmetics, paints, coatings, pigments and ink.
Specifications
| Series | BMZTA5 | BMZTA10 | BMZTA60 | BMZTA70 | BMZTA75 |
| Al2O3+ZrO2 (%) | ≥92% | ≥85% | ≥95% | ≥96% | ≥96% |
| Density(g/cm3) | ≥3.7 | ≥3.8 | ≥4.5 | ≥4.7 | ≥5.0 |
| Vickers Hardness(GPa) | ≥12 | ≥11 | ≥12 | ≥12 | ≥11 |
| Rapid Wearing Rate(g/kg.h) | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 |
| Dimension(mm) | φ1-10 | φ1-10 | φ1-10 | φ1-10 | φ1-10 |
| Roundness | 96% | 96% | 96% | 96% | 96% |
